| Place of Origin: | ShanDong China(Mainland) |
| Brand Name: | MIROC |
| Certification: | GB / API |
| Model Number: | Hollow Grounted Anchor |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton / Wooden Box or Based on Customers |
| Delivery Time: | 1-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9000000 KG Per month |
| Material: | Steel | Capacity: | 200KN-8000KN |
|---|---|---|---|
| Type: | Anchor Bolt, Self Drilling Anchor | Diameter: | 25mm-130mm |
| Color: | Based On Customers | Length: | 1m-8m |
| High Light: | steel anchor bolts,self drilling anchors |
||
Alloy R38N Steel Anchor Bolts Self Drilling Hollow Grounted Length 1m - 8m
Anchor bolt
Anchor bolt means a rod that transfers the structures or geotechnical load to a stable rock formations,

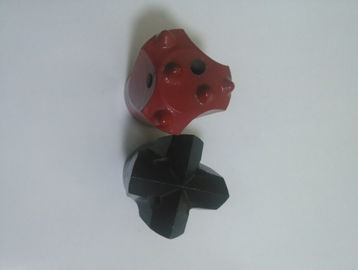

it consistsof rod, drill bit,coupling, plate, grouting stopper and nut. It has been widely used in tunnling,
mining,slope stabilization, tunneldiseasestreatment and roof supporting of undergroundworks. It is for
loose ground(clay, sand friable etc.) Hollow anchor rod is made of seamless tube with high strength.
Features of Hollow Grouting Anchor Bolt:
Hollow design, implement the grouting tube function, avoid the mortar loss when the traditional grouting
tube pulled out.Grouting full, and can achieve the pressure grouting to improve project quality.
Center is good, mortor can wrap the bolt body together, so that it can avoid corrosion to achibe along
term supporting purposes.
Easy installation, without onsite processing of threads. It can be easily installed an plate, nut.
Selt-Drilling Anchor Bolt Description
It may bodies drilling, grouting and anchoring as a whole.
It has a wide specifications. Diameter:25-130mm.
Qucik and easy construction, high efficiency.
Used invious surrounding rocks.
Anchor Bolt
|
|
R25N |
R32N |
R32S |
R38N |
R51L |
R51N |
T76N |
T76S |
|
Outside diameter (mm) |
25 |
32 |
32 |
38 |
51 |
51 |
76 |
76 |
|
Internal diameter (mm) |
14 |
19 |
16 |
19 |
36 |
33 |
52 |
45 |
|
Ultimate load capacity (KN) |
200 |
280 |
360 |
500 |
550 |
800 |
1600 |
1900 |
|
Yield load capacity (KN) |
150 |
230 |
280 |
400 |
450 |
630 |
1200 |
1500 |
|
Tensile strength, Rp0.2 (N/mm2) |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
|
Yield strength, Rp0.2 (N/mm2) |
650 |
650 |
650 |
650 |
650 |
650 |
650 |
650 |
|
Weight(Kg/m) |
2.3 |
3.2 |
3.6 |
5.5 |
6.5 |
8.0 |
16.0 |
19.7 |
|
Thread type (left-hand) |
ISO10208 |
ISO1720 |
MAIT76 Standard |
|||||
|
Steel grade |
En10083-1 En10083-1(Alloy structure steel) |
|||||||
|
Compared to carbon steel, alloy structure steel has high anti-corrosion capacity and high mechanical. |
||||||||
Anchor Plate
|
|
R25N |
R32N |
R32S |
R38N |
R51L |
R51N |
T76N |
T76S |
|
Dimention(mm) |
150*150 |
200*200 |
200*200 |
200*200 |
200*200 |
250*250 |
250*250 |
250*250 |
|
Thickness(mm) |
8 |
10 |
12 |
12 |
20 |
40 |
40 |
40 |
|
Hole diameter(mm) |
30 |
35 |
35 |
41 |
60 |
60 |
80 |
80 |
|
Weight(KG/PC) |
1.4 |
3 |
3.7 |
3.6 |
8.8 |
18.5 |
18 |
18 |
|
Cold deformed with geometry |
||||||||
T-Thread Anchor Bolt Technial Data
|
Bar Type |
Outside Diameter (mm) |
Inside Diameter (mm) |
Cross section (mm2) |
Ultimate Load KN |
Yield Point KN |
Weight (kg/m) |
Thread Left/ Right Hand |
|
30/11 |
30 |
11 |
446 |
320 |
260 |
3.3 |
Lift or right |
|
30/14 |
30 |
14 |
395 |
260 |
220 |
2.9 |
Lift or right |
|
30/16 |
30 |
16 |
382 |
220 |
180 |
2.7 |
Lift or right |
|
40/16 |
40 |
16 |
879 |
660 |
525 |
7.0 |
Lift or right |
|
40/20 |
40 |
20 |
726 |
539 |
430 |
5.6 |
Lift or right |
|
52/26 |
52 |
26 |
1337 |
929 |
730 |
10.0 |
Lift or right |
|
73/53 |
73 |
53 |
1160 |
1630 |
970 |
12.3 |
Lift or right |
|
73/56 |
73 |
56 |
1094 |
1414 |
785 |
11.1 |
Lift or right |
|
73/45 |
73 |
45 |
2265 |
1630 |
1180 |
17.8 |
Lift or right |
