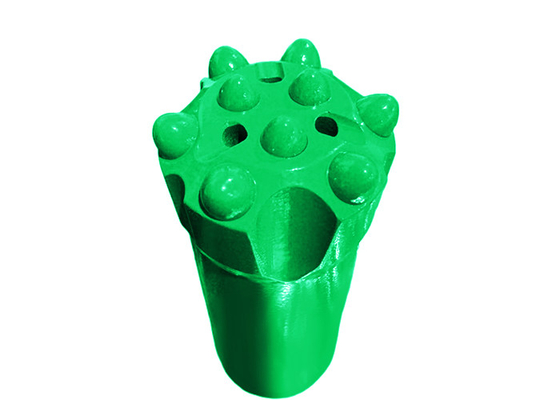

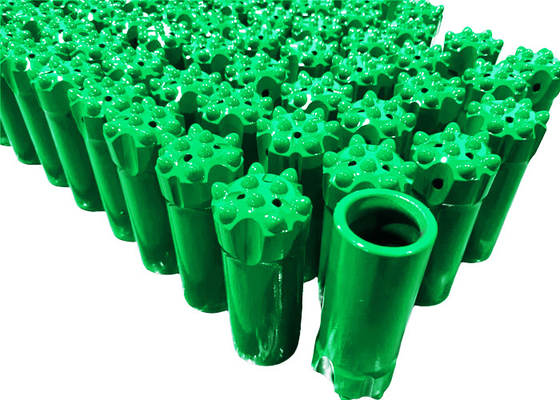

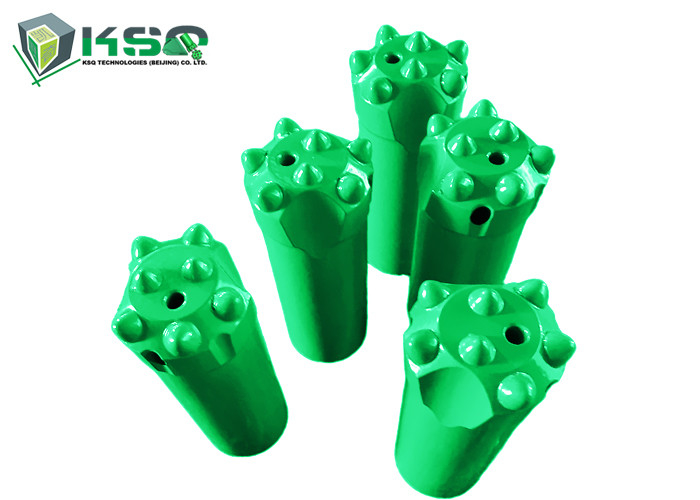

Name: Factory Price China Made Tunneling R32 43mm Ballistic Button Drill Bits For Mining
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: R32 43mm
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

Factory Price China Made Tunneling R32 43mm Ballistic Button Drill Bits For Mining

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	R32 43mm

Contact Now

Detailed Product Description

Face Shape:	Flat Shape And Drop-center Shape	Button Bit Shape:	Spherical, Ballistic,Conical
Thread Type:	R25,R28,R32,R38,T38,T45,T51,ST58,ST68	Material:	Alloy Steel Bar And Tungsten Carbide Bit
Use:	Tunneling, Mining,quarrying	Weight (KG):	1.6
Highlight:	Mining Ballistic Button Drill Bits , Tunneling Ballistic Button Drill Bits , R32 Ballistic Button Drill Bits

Button bit and Insert types.

Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions

Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions

Applications of rock drilling tools
• Underground mining
• Tunneling,quarrying

Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

R32 Button Bit	Bit Dia.		Buttons and Size (mm)		Flushing Hole		Weight
R32 Button Bit	mm	inch	Front	Gauge	Front	Side	kg
Button Bit Ballistic Buttons, B7XX	41	1 5/8	2x8	5x9	1	1	0.7
Button Bit Ballistic Buttons, B7XX	48	1 8/9	2x9	5x11	1	1	0.9
Button Bit Ballistic Buttons, B7XX,3FH	43	1 5/7	2x9	5x9	1	2	0.7
Button Bit Ballistic Buttons, B7XX,3FH	45	1 7/9	2x9	5x11	1	2	0.8

Factory Price China Made Tunneling R32 43mm Ballistic Button Drill Bits For Mining 0

Factory Price China Made Tunneling R32 43mm Ballistic Button Drill Bits For Mining 1
