11Degree 38mm Ballistic Small Hole Rock Drilling Tapered Drill Button Bit

11Degree 38mm Ballistic Small Hole Rock Drilling Tapered Drill Button Bit

Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: 11Degree 38mm Tapered Drill Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 20-30
Chat Now
Detailed Product Description
Product Name: Taper Button Bits Color: Customized
Feature: High Wear Resistant Heat Treatment: Fully Carburization
Material: Alloy Steel/Carbon Steel Advantage: Long Service Life

Products Description

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered cross type bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning. Used in drifting and tunneling.



Product Name

Taper Drill Bit

Taper Degree

4°, 6°, 7°, 11°, 12°

Diameter

26mm - 41mm (or 1 inch to 1 3/5 inch)

Drill Bit Type

Chisel bit, button bit, cross bit

Carbide Insert

Spherical and ballistic

Button Bit's Skirt Design

Short skirt, long skirt

Chisel Bit Type

Standard chisel bit, oblique chipways chisel bit,
flat chipways chisel bit, oblique flat chipways chisel bit

Material

High strength alloy steel bar and tungsten carbide

Color

Green, Gold, Black or based on customer requirements.



Applications
Small hole rock drilling
We can design and manufacture the personalized products to meet your specical apllication.



Small HoleDrilling Tools

Taper Degree

The NumberOf Button

Bit Dia.(mm)

Skirt

Weight(kg)

Tapered



4

32-42

Short Skirt

0.24-0.43



6

34

Short Skirt

0.29

7

32-42

Short Skirt

0.26-0.43



7

32-41

Long Skirt

0.30-0.42



4

32-40

Short Skirt

0.24-0.40

11°

5

38-40

Short Skirt

0.39-0.40



6

33-36

Short Skirt

0.25-0.36



7

32-41

Short Skirt

0.24-0.41



7

32-41

Long Skirt

0.30-0.42



8

33-35

Long Skirt

0.31-0.35

12°

4

28-30

Short Skirt

0.20-0.22

5

28-30

Short Skirt

0.20-0.22

6

30-38

Short Skirt

0.22-0.40

7

32-38

Short Skirt

0.24-0.40

7

32-41

Long Skirt

0.30-0.42

8

33-35

Long Skirt

0.31-0.35

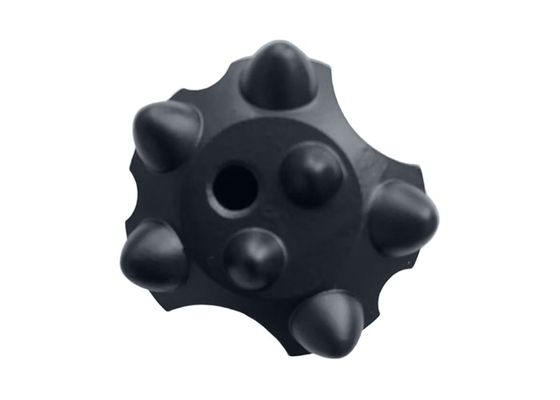

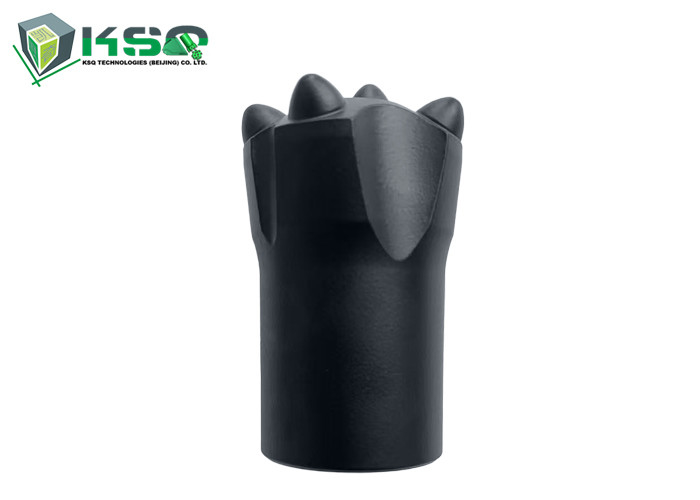

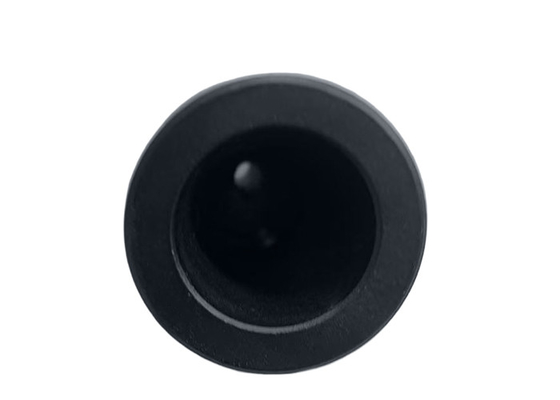

11Degree 38mm Ballistic Small Hole Rock Drilling Tapered Drill Button Bit 011Degree 38mm Ballistic Small Hole Rock Drilling Tapered Drill Button Bit 111Degree 38mm Ballistic Small Hole Rock Drilling Tapered Drill Button Bit 211Degree 38mm Ballistic Small Hole Rock Drilling Tapered Drill Button Bit 3
