Name: PQ Impregnated Diamond Core Bit Suitable For Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: PQ Impregnated Diamond Core Drill Bit
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

PQ Impregnated Diamond Core Bit Suitable For Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	PQ Impregnated Diamond Core Drill Bit

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30

Contact Now

Detailed Product Description

Model No:	PQ, Suitable For Drilling Accessory, Geological, Wireline	Impregnation Depth:	12mm
Matrix Hardness:	F0~F18, As Required	Diamond Size:	25/30, 30/35, 35/40
Rock Formation:	Soft To Medium Hard, Abrasive And Fragmented Formations	Quality:	Excellent

Features:

1. Significantly outperforms the successful Series range in drilling speed and bit life.

2. Protects the diamond from oxidation and surface degradation.

3. Inhibits the premature "pull-out" of the diamond.

4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.

Type of Bit Matrix:

The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action, also with long life using time is important, meanwhile it will keep the cost of diamond drilling to a minimum.

The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.

AVAILABLE SIZE
Q Series	AQ, BQ, NQ, NQ2, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK, Geobors
T2 Series	T2 46, T2 56, T2 66, T2 76, T2 86,T2 101
T6 Series	T6 76, T6 86, T6 101,T6 116,T6 131,T6 146,
T6S Series	T6S 76, T6S 86, T6S 101, T6S 116,T6S 131,T6S 146
T Series	T36, T46, T56, T66, T76, T86
Z Series	Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B Series	B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF Series	HWF, PWF, SWF, UWF, ZWF
WT Series	RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)
WG Series	EWG, AWG, BWG, NWG, HWG ( Single Tule , Double Tube )
WM Series	EWM, AWM, BWM, NWM, HWM
Others	NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, HTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146,TT46, TT56, TB56, TS116, CHD101
Chinese Standard	56mm , 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm,275mm
Customised	Others

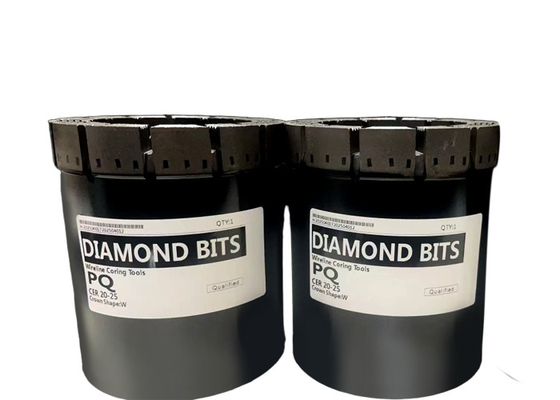

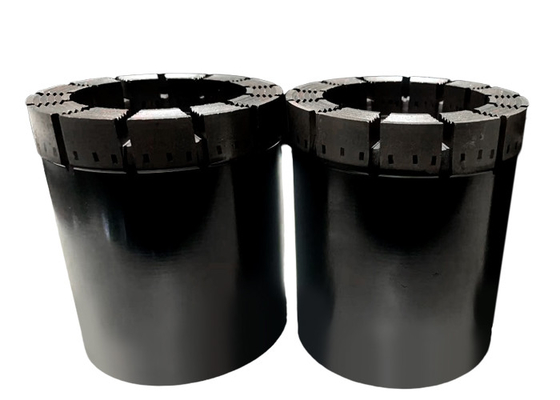

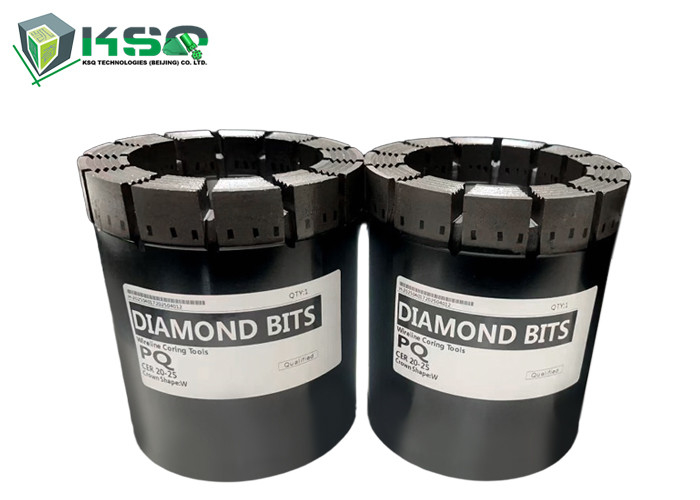

PQ Impregnated Diamond Core Bit Suitable For Drilling 0

PQ Impregnated Diamond Core Bit Suitable For Drilling 1

PQ Impregnated Diamond Core Bit Suitable For Drilling 2

PQ Impregnated Diamond Core Bit Suitable For Drilling 3
