| Place of Origin: | ShanDong, China(Mainland) |
| Brand Name: | MIROC |
| Certification: | GB / API / ISO |
| Model Number: | Button bits |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Box or Based on Customers |
| Delivery Time: | 1-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 900000 pieces per month |
| Degree: | 4°，7°, 11°, 12° | Processing Type: | Welding |
|---|---|---|---|
| Color: | Based On Customers | Use: | Underground Construction |
| Material: | 42CrMo | Machine Type: | Drilling Machines |
| High Light: | stone drilling tools,mining drilling tools |
||
Mining Tungsten Carbides Rock Drilling Tools Tapered Bits for Granite Quarry Drilling
Specifications
1. longer drilling time taper bit
2. bit size 20-42mm
3. short delivery time
4. factory direct supply
Taper bit is suitable for mining of black metal mines(such as iron mine/ manganese
ore), nonferrous metal mine(such as gold/silver/copper ore), marble and granite etc.
It's drilling depth usually is 15m-18m in case of hardness grade F8-14.
At present, there are Horse Shoe Bits and Chisel bits. Chisel is more popular in Saudi,
and it's suitable for hard rock drilling. It is widely used in drilling holes with a depth size less
than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, Like Y6, Y10,
Y24, , major use in natural dimensional stone quarry for small hole drilling, block ‘s trimming
and 2nd splitting for small blocks.
To match Hexagonal 22 mm and Hexagonal 25mm’s tapered drill steel with 4 ,6,7,11,12
degree , All tapered bit are made with high quality of raw material through special heat
treatment,The deliver capacity are very strong and can completely meet customer’s requirements
on delivery design.

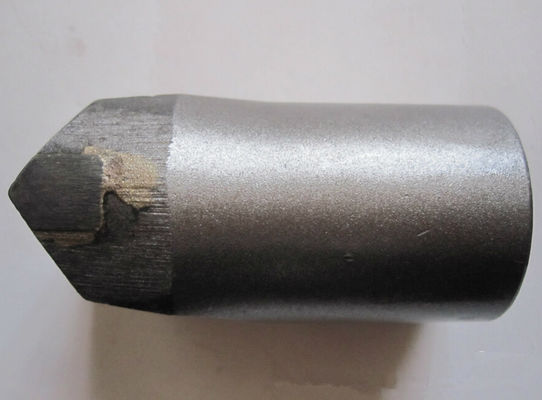

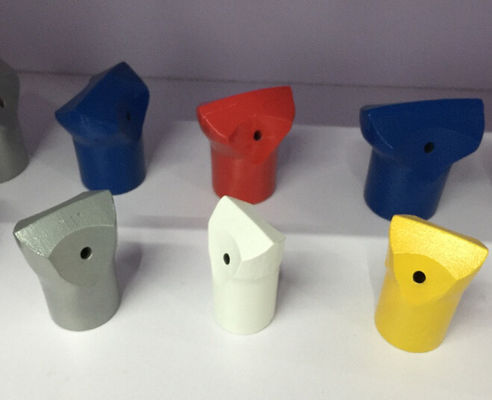

Taper Chisel Bits:
1) Tapered connection: 7,11,12
2) Alloy steel:42CrMo
3) Suitable carbide tips:YK20
4) Chisel bit diameter: 30-80mm
5)Technology:hot-pressing or welding
| Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
| 1 | 26 | 10x7 | 0.17 | ||
| 2 | 28 | 10x7 | 0.18 | ||
| 3 | 30 | 13.5x8 | 0.22 | ||
| 4 | 32 | 13.5x8 | 0.24 | ||
| 5 | 34 | 13.5x8 | 0.27 | ||
| 6 | 36 | 13.5x8 | 0.3 | ||
| 7 | 38 | 13.5x8 | 0.33 | ||
| 8 | 38 | 15x9 | 0.33 | ||
| 9 | 40 | 3.5x9.2 | 0.38 | ||
| 10 | 40 | 15x9.8 | 0.38 | ||
| 11 | 42 | 13.5x9.2 | 0.41 | ||
| 12 | 42 | 15x9.8 | 0.41 | ||
| 13 | 43 | 13.5x9.2 | 0.42 | ||

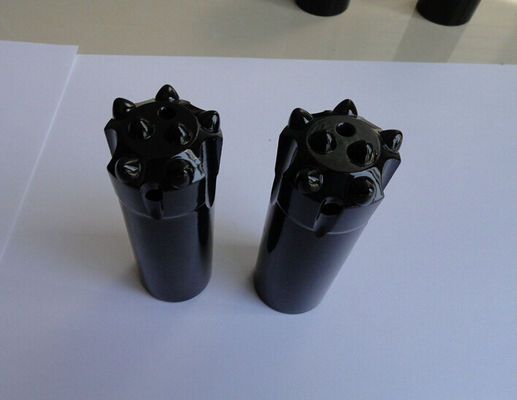

Taper Button Bits:
1) Type: Taper button bits
2) Shank Hex.Size: 22mm,25mm
3) Diameter: 30-42mm.
4) Taper degree: 7°11°12°
5) Buttons quantity: 4, 5, 6, 7, 8
6) Package: Plastic case, wooden case.
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 32 | 1x8 | 3x8 | 1 | 1 | 0.24 |
| 2 | 33 | 2x7 | 5x7 | 2 | 1 | 0.26 |
| 3 | 34 | 2x7 | 4x7 | 1 | 1 | 0.29 |
| 4 | 35 | 2x7 | 5x8 | 1 | 1 | 0.33 |
| 5 | 36 | 2x7 | 5x8 | 1 | 1 | 0.37 |
| 6 | 38 | 1x8 | 3x9 | 1 | 1 | 0.37 |
| 7 | 40 | 1x8 | 3x9 | 1 | 1 | 0.38 |
| 8 | 41 | 2x7 | 5x9 | 1 | 1 | 0.42 |
| 9 | 42 | 2x8 | 5x9 | 1 | 1 | 0.43 |

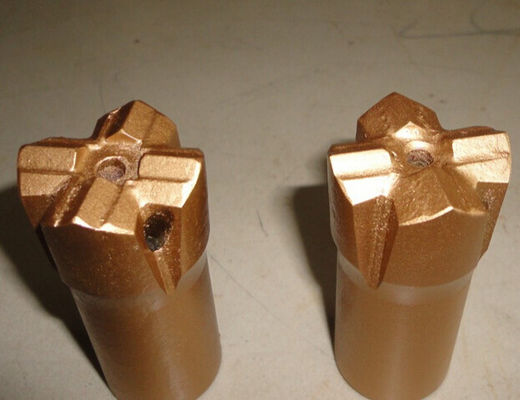

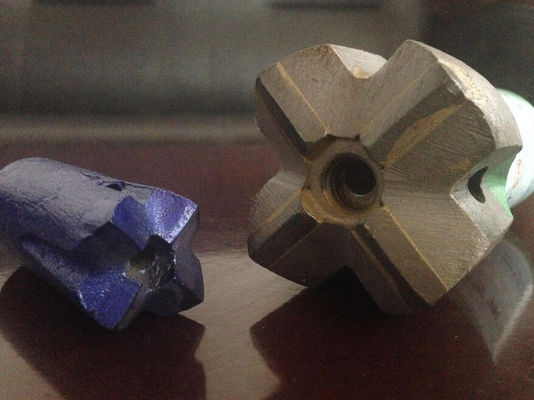

Taper Cross Bits:
1) Tapered connection: 7,11,12
2) Chisel bit diameter: 30-60mm
3) Technology:hot-pressing or welding
4) Bit Body: Short skirt and Long skirt
5) Tapered drill rod: H22/H25*108mm
| Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
| 1 | 30 | 12x12x8 | 0.29 | ||
| 2 | 32 | 12x12x8 | 0.31 | ||
| 3 | 33 | 12x12x8 | 0.33 | ||
| 4 | 34 | 12x12x8 | 0.34 | ||
| 5 | 35 | 12x12x8 | 0.36 | ||
| 6 | 36 | 13x12x8 | 0.37 | ||
| 7 | 38 | 14x12x8 | 0.43 | ||
| 8 | 40 | 15x12x8 | 0.47 | ||
| 9 | 41 | 15x12x8 | 0.49 | ||
| 10 | 42 | 15x12x8 | 0.51 | ||
| 11 | 43 | 15x12x8 | 0.53 | ||
| 12 | 45 | 17x14x8 | 0.58 | ||
| 13 | 48 | 17x14x8 | 0.67 | ||
| 14 | 50 | 19x14x8 | 0.72 | ||
| 15 | 55 | 20x16x10 | 0.92 | ||
| 16 | 60 | 20x16x10 | 1.19 | ||
