| Place of Origin: | ShanDong, China(Mainland) |
| Brand Name: | MIROC |
| Certification: | GB / API / ISO |
| Model Number: | Button bits |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Box or Based on Customers |
| Delivery Time: | 1-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 900000 pieces per month |
| Degree: | 7°, 11°, 12° | Processing Type: | Hot-pressing Or Welding |
|---|---|---|---|
| Color: | According To Requirements | Use: | Granite Quarry Drilling |
| Material: | 45CrNiMoV, 42CrMo | Machine Type: | Drilling Tools |
| Connection: | H19, H22, H25 Drill Rod | Bit Body: | Long - Skirt, Short - Skirt |
| High Light: | stone drilling tools,rock drill tools |
||
Hard Green Rock Drill Button Bit Tungsten Carbide for Hard Rock
Tapered Rock Drill Bits we have three types: taper chisel bit, taper cross bit and taper button bit. It's suitable for H22mm and H25mm taper rock drill rods use. It have three taper degree: 7°, 11°, 12°. It's widely used for hard rock(f=8~18) drilling use. Taper button bits is the best sales product.
It possess of high wear resistance like diamond, at the same time the impact
resistance like hard alloyand that’s made it the best material as a drill bit cutter.
Reinforced PDC has higher dense diamond powder, claw hard alloy substrate
made the two layers solid as whole one. So, the reinforced PDC of chengtan
wear resistance, longer service life and high efficiency.Chisel bits are widely
used in tunneling and mining.To meet your requirements,we provide various
specification for different rock conditions,which can improving the efficiency.
With superior carbide,special solder and good welding,our chisel bits can avoid
carbide drop off in circulsrly use.And also the bit bodies enjoy a longer life after
harden itself by heat treatment.
Taper Chisel Bits:
1) Tapered connection: 7,11,12
2) Alloy steel:42CrMo
3) Suitable carbide tips:YK20
4) Chisel bit diameter: 30-80mm
5)Technology:hot-pressing or welding
| Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
| 1 | 26 | 10x7 | 0.17 | ||
| 2 | 28 | 10x7 | 0.18 | ||
| 3 | 30 | 13.5x8 | 0.22 | ||
| 4 | 32 | 13.5x8 | 0.24 | ||
| 5 | 34 | 13.5x8 | 0.27 | ||
| 6 | 36 | 13.5x8 | 0.3 | ||
| 7 | 38 | 13.5x8 | 0.33 | ||
| 8 | 38 | 15x9 | 0.33 | ||
| 9 | 40 | 3.5x9.2 | 0.38 | ||
| 10 | 40 | 15x9.8 | 0.38 | ||
| 11 | 42 | 13.5x9.2 | 0.41 | ||
| 12 | 42 | 15x9.8 | 0.41 | ||
| 13 | 43 | 13.5x9.2 | 0.42 | ||
Taper Button Bits:
1) Type: Taper button bits
2) Shank Hex.Size: 22mm,25mm
3) Diameter: 30-42mm.
4) Taper degree: 7°11°12°
5) Buttons quantity: 4, 5, 6, 7, 8
6) Package: Plastic case, wooden case.
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 32 | 1x8 | 3x8 | 1 | 1 | 0.24 |
| 2 | 33 | 2x7 | 5x7 | 2 | 1 | 0.26 |
| 3 | 34 | 2x7 | 4x7 | 1 | 1 | 0.29 |
| 4 | 35 | 2x7 | 5x8 | 1 | 1 | 0.33 |
| 5 | 36 | 2x7 | 5x8 | 1 | 1 | 0.37 |
| 6 | 38 | 1x8 | 3x9 | 1 | 1 | 0.37 |
| 7 | 40 | 1x8 | 3x9 | 1 | 1 | 0.38 |
| 8 | 41 | 2x7 | 5x9 | 1 | 1 | 0.42 |
| 9 | 42 | 2x8 | 5x9 | 1 | 1 | 0.43 |

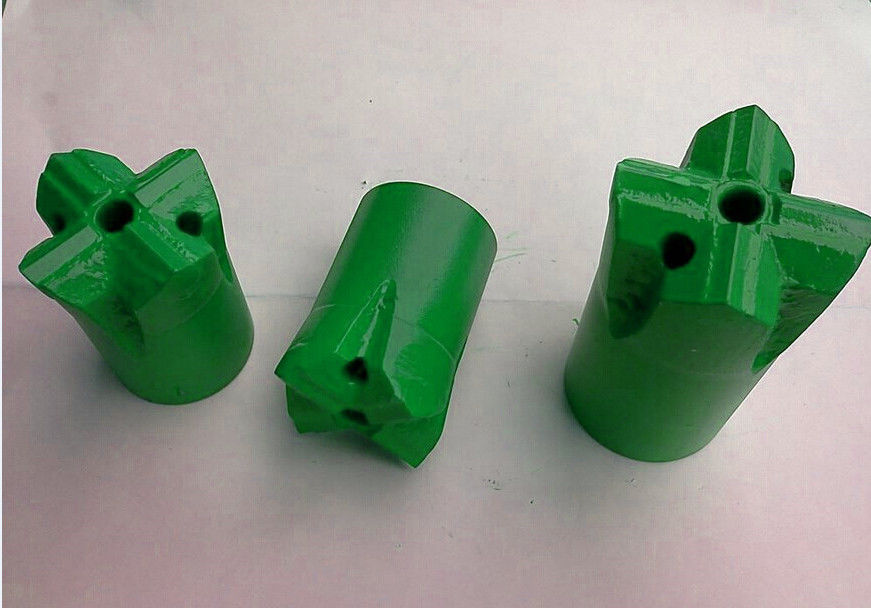

Taper Cross Bits:
1) Tapered connection: 7,11,12
2) Chisel bit diameter: 30-60mm
3) Technology:hot-pressing or welding
4) Bit Body: Short skirt and Long skirt
5) Tapered drill rod: H22/H25*108mm
| Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
| 1 | 30 | 12x12x8 | 0.29 | ||
| 2 | 32 | 12x12x8 | 0.31 | ||
| 3 | 33 | 12x12x8 | 0.33 | ||
| 4 | 34 | 12x12x8 | 0.34 | ||
| 5 | 35 | 12x12x8 | 0.36 | ||
| 6 | 36 | 13x12x8 | 0.37 | ||
| 7 | 38 | 14x12x8 | 0.43 | ||
| 8 | 40 | 15x12x8 | 0.47 | ||
| 9 | 41 | 15x12x8 | 0.49 | ||
| 10 | 42 | 15x12x8 | 0.51 | ||
| 11 | 43 | 15x12x8 | 0.53 | ||
| 12 | 45 | 17x14x8 | 0.58 | ||
| 13 | 48 | 17x14x8 | 0.67 | ||
| 14 | 50 | 19x14x8 | 0.72 | ||
| 15 | 55 | 20x16x10 | 0.92 | ||
| 16 | 60 | 20x16x10 | 1.19 | ||
