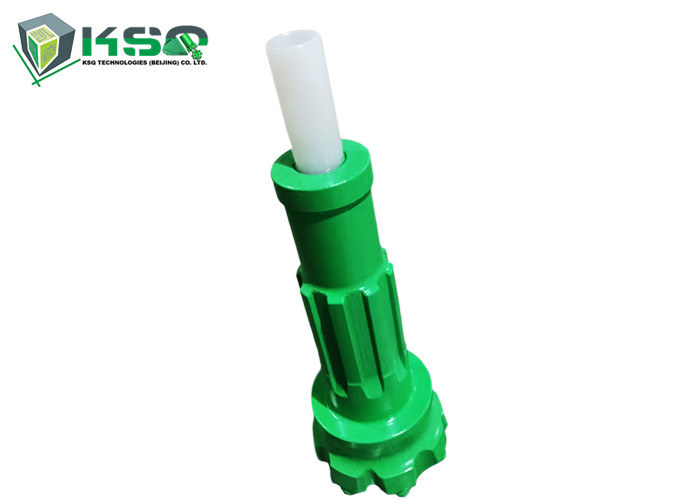

High Efficiency Quarry Mining MP35-95mm DTH Hammer and Bit Down the Hole Drilling Tools

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	MP35

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30

Contact Now

Detailed Product Description

Name:	DTH Hammer And Bit	Material:	Carbon Steel
Advantages:	High Quality And Factory Prices	Hammer Size:	3" Dth Hammers
Shank Type:	MP35	Bit Diameter:	90-110mm
Application:	Mining Or Marble Quarry Or Water Well Drilling	Bit Face:	Center Drop/Flat/convex/concave/double Gauge Face Bits
Button Shape:	Spherical/Ballistic/parabolic/sharp/falt Bottons	Connect Thread:	API 2 3/8" Reg

Product Description

The Mincon MP35 hammer is designed around proven technology to perform at the top end of the performance scale compared to other tools on the market. These tools are excellent for all types of drilling applications including residential geothermal, production quarry drilling, seismic drilling and small construction drilling.

Key Features and Benefits

Patented features maximize energy output and reduce service requirements.
Fewer internal components minimize service requirements.
Valveless, high frequency design ensures smooth operation.
Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions.
Multi-start threads on backhead and chuck ensure easy coupling/uncoupling of hammer.
Unique internal mount system eliminates the need for wear shims and special assembly tools.
All critical internal components are heat treated under strict control to maximize tool longevity.

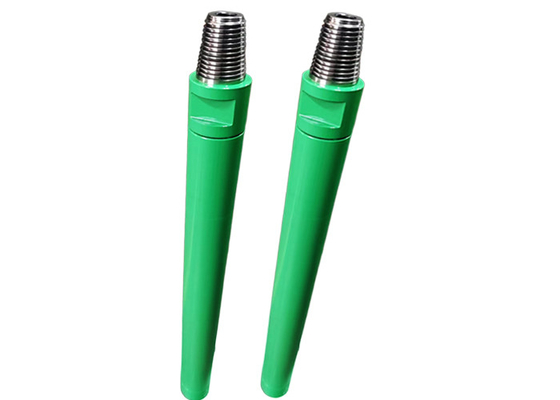

Mission30 DTH Drilling Hammer

Length (without bit)	Weight (Without bit)	External diameter	Bit shank	Hole range		Connection thread

955mm	23.2kg	Φ82mm	Mission30	Φ90mm-Φ110mm		API 2 3/8" REG

Working pressure	Impact rate at 17Bar	Recommended rotation speed	Pull force recommended	Air consumption(m³/min)
				14Bar	17.2Bar	20.7Bar	24Bar
7-25Bar	32Hz	30-70r/min	5kN	5.5	8	10.5	12

Mission30 DTH button bits technical parameter

Bit Diameter	Part No.	No. x Button diameter (mm)				Weight
Bit Diameter		Gauge	Front Buttons			Weight
(mm)		buttons	Flat	Convex	Concave	(kg)
Φ90	M30-90CV6	6xΦ14	2xΦ12	2xΦ13	/	4.3
Φ90	M30-90FF6	6xΦ14	4xΦ12	/	/	4.3
Φ95	M30-95CV6	6xΦ14	2xΦ13	2xΦ13	/	4.4
Φ100	M30-100CV6	6xΦ14	2xΦ13	3xΦ13	/	4.6
Φ105	M30-105CV6	6xΦ14	2xΦ13	3xΦ13	/	4.8
Φ105	M30-105FF8	8xΦ13	6xΦ12	/	/	4.8
