Name: Top Hammer Drilling Tools R32-R38 Rock Drilling Coupling Sleeves for Extension Rod
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: R32-R38
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

Top Hammer Drilling Tools R32-R38 Rock Drilling Coupling Sleeves for Extension Rod

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	R32-R38

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30

Contact Now

Detailed Product Description

Surface Treatment:	Spray-Paint	Material:	Cast Steel
Mining Object:	Mining, Drilling, Etc.	Specification:	As Per Customers′ Requirements
Usage:	Rock Drilling Mining	Color:	As Requested
Highlight:	R32-R38 rock drilling coupling sleeves , Top hammer drilling extension rod sleeves , Rock drilling tools coupling sleeves

Coupling Sleeve is a sleeve-shaped rock drilling component with internal threads for connecting shank adapter and drill rod, or drill rod and drill rod. We produce and provide three types of drill rod couplings – semi bridge couplings, full bridge couplings, and crossover couplings, which can meet the requirements of all applications.

Product	Top Hammer Rock Drilling Tool - Coupling Sleeves
Other Names	Couplings, Drill Rod Couplings, Drill Coupling Sleeve,
Material	Structural Alloy Steel
Application	Tunneling , Mining , Quarrying, Blasting and Infrastructure Construction Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling, Drifting
Thread	R25, R32, R35, R38, T38, T45, T51
Coupling Type	Standard Couplings (Semi bridge Couplings) Full bridge Couplings Crossover Couplings (Adapter Couplings, Reduction Couplings, Reducer Coupling)
Diameter	33~72mm
Length	150mm~235mm
Custom Design	Thread, Diameter, Length can be customized

O.D.(mm)	Length(mm)	Thread
45	150	R32
45	160	R32
45	160	R32
45	170	R32
45	170	R32
55	160	R32-R38
55	170	R32-R38
55	170	R32-R38
55	170	R32-R38
55	170	R32-R38
55	180	R32-R38
55	210	R32-R38

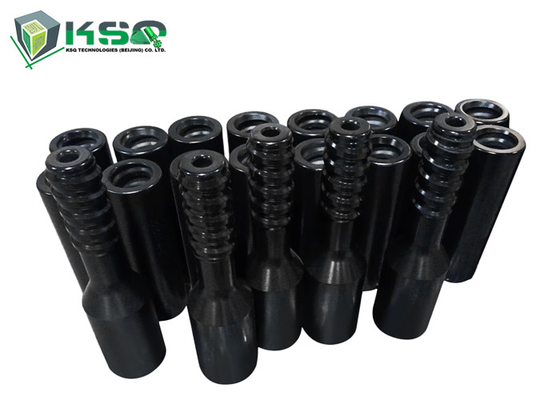

Top Hammer Drilling Tools R32-R38 Rock Drilling Coupling Sleeves for Extension Rod 0

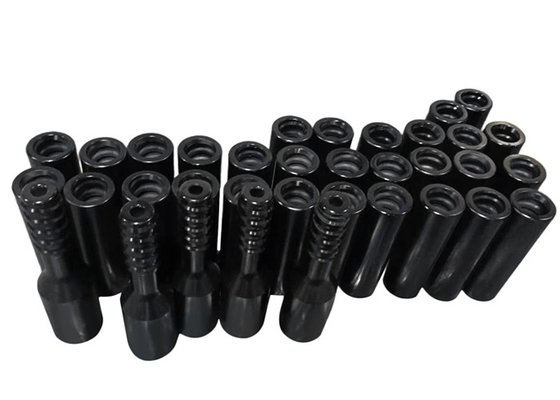

Top Hammer Drilling Tools R32-R38 Rock Drilling Coupling Sleeves for Extension Rod 1

Top Hammer Drilling Tools R32-R38 Rock Drilling Coupling Sleeves for Extension Rod 2
