Shank Adapter COP2160EX-T51-770mm

Shank Adapter COP2160EX-T51-770mm

Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: COP2160EX-T51-770mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 20-30
Contact Now
Detailed Product Description
Product Name: Shank Adapter Application: Coal Mining
Usage: Rock Quarrying Color: Black
Advantage: High Performance Size: Customize Size
Quality: HighQuality

Description

Shank adapter is designed to transmit power from rock drill piston to extension drill rod and finally to drill bit. When deploying, one side of shank adapter is connected to drill rod, while the other side should be connected with coupling or extension drill. Shank adapter can be deployed for drilling duties in tunneling, construction, mining, quarrying, etc.



Parameters of Shank Adapters
• Thread type: R25, R28, R32, R35, R38, T38, T45, T51, etc.
• Diameter: 32mm-70mm
• Length: 273mm-885mm

• Applicable rock drill brand: Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, etc.



Type

Thread

Length(mm)

Dia.(mm)

Weight(kg)

COP125,COP130,COP131

T38

380

38

3

COP1032,COP1032HD

R32

340

45

3.4

COP1032,COP1032HD

R38

340

55

4.1

COP1032

R32

550

45

5

COP1032

T38

550

45

5.4

COP1036,COP1038HB

R32

500

38

4

COP1036,COP1038HB

T38

500

38

4.4

COP1036,COP1038HB

T45

500

45

5

COP1036,COP1038,COP1238,COP1038HD,COP1238HD

R32

485

38

4

COP1036,COP1038,COP1238,COP1038HD,COP1238HD

R38

485

38

4.2

COP1036,COP1038,COP1238,COP1038HD,COP1238HD

T38

485

38

4.2

COP1036,COP1038,COP1238

R32

575

38

4.6

COP1036,COP1038,COP1238

T38

575

38

4.9

COP1036,COP1038,COP1238

T45

575

45

5.8

COP1036,COP1038,COP1238

T38

575

45

5.4

COP1432,COP1532,COP1440,COP1838HD/ME

R32

435

38

3.6

COP1432,COP1532,COP1440,COP1838HD/ME

R38

435

38

3.9

COP1432,COP1532,COP1440,COP1838HD/ME

T38

435

38

3.8

COP1432,COP1532,COP1440,COP1838HD/ME

R32

525

38

4.2

COP1432,COP1532,COP1440.COP1838HD/ME

T38

525

38

4.3

COP1432 Female

R32

341

55

4.7

COP1432 Female

R38

341

55

4.4

COP1132

R32

410

35

2.6

COP1132

TC35

410

35

2.6

COP1838MUX/HUX

TC35

730

52

9.5

COP1838MUX/HUX

T38

730

52

9.6

COP1838MUX/HUX

T45

730

52

9.9

COP1440,COP1550,COP1838ME/HE,COP1838

R32

525

52

5.7

COP1440,COP1550,COP1838ME/HE,COP1838

T38

525

52

5.9

COP1550EX.COP1838EX

T38

730

60

9.6

COP1550EX,COP1838EX

T45

730

60

10.2

COP1840HE,COP1850

T38

565

52

6.6

COP1840HE,COP1850

T45

565

52

6.8

COP1840HE,COP1850

T51

565

52

7.2

COP1840HEX,COP1850EX

T45

770

60

10.8

COP1840HEX,COP1850EX

T51

770

60

10.9

COP2150,COP2550

T51

770

52

9.9

COP2160EX

T45

770

63

13.2

COP2160,COP2560

T51

770

63

13.3

COP4050

T51

605

52

8.9

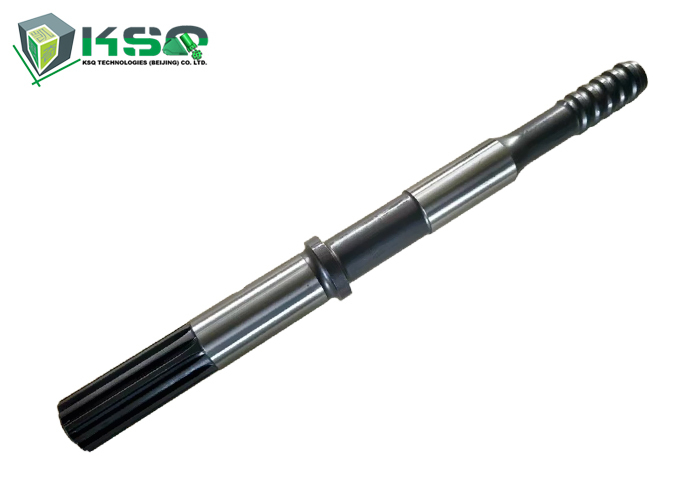

Shank Adapter COP2160EX-T51-770mm 0

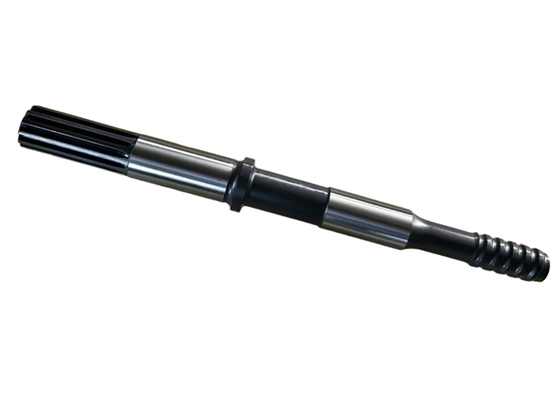

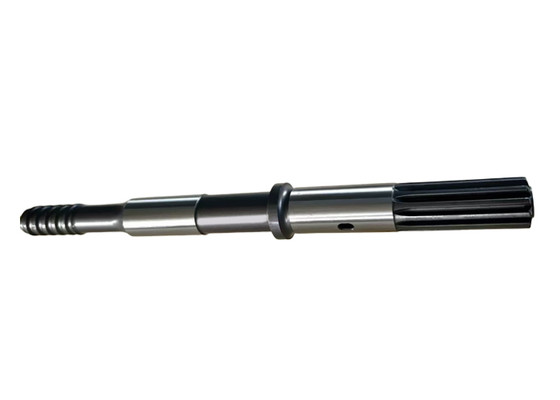

Shank Adapter COP2160EX-T51-770mm 1Shank Adapter COP2160EX-T51-770mm 2Shank Adapter COP2160EX-T51-770mm 3
