Name: T51 89mm Spiral Retrac Body Rock Drill Button Bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T51 89mm
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

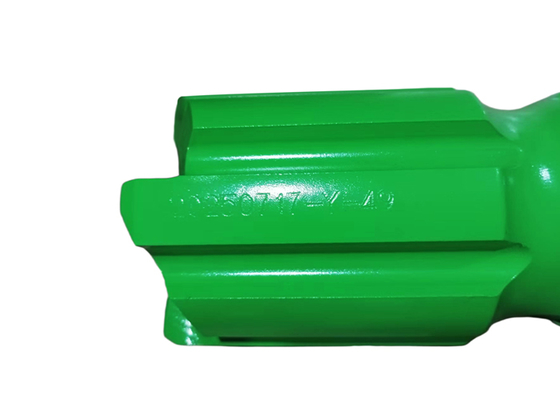

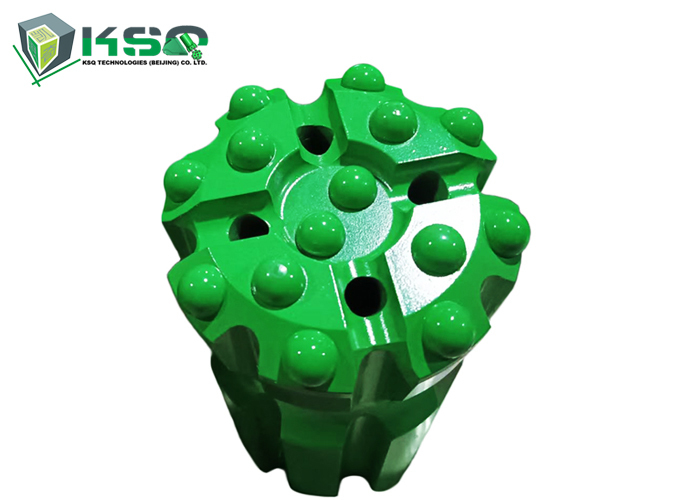

T51 89mm Spiral Retrac Body Rock Drill Button Bit

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	T51 89mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30

Contact Now

Detailed Product Description

Surface Treatment:	Painting	Material:	Alloy Steel & Tungsten Carbides
Type:	Drop Center Retract Bit	Class:	Hard
Application:	Coal Mining,Quarry Drilling, Construction	Face Designs:	Flat Face, Drop Center,
Skirt Designs:	Normal, Retrac,	Advantage:	High Performance,Wear Resistant,Competitive Price

High quality top hammer rock drilling tools,which are widely use in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields .

The use of a wide range: the practice proves that the bit is suitable for carbonate rock, limestone, chalk, clay rock, siltstone, sandstone and other soft and hard (9- grade drillability of rock, hard rock drilling), compared with normal bit, especially drilling in 6-8 grade rock the effect is particularly significant.

Thread Button Bit	Diameter		Carbide size(mm)		Flushing hole		Weight
	mm	in	Front	Gauge	Front	Side	(kg)
	mm	in	Qty×size	Qty×size	Front	Side	(kg)
T51(2") standard body	76	3	4×12	8×12	2	1	3.62
	89	3 1/2	6×12	8×14	2	2	4.48
	102	4	7×12	8×14	4	1	5.26
	115	4 1/2	8×12	8×14	4	1	7.62
	127	5	9×12	8×16	4	1	8.58
T51(2") retrac body	76	3	4×12	8×12	2	1	4.22
	89	3 1/2	6×12	8×14	2	2	5.08
	102	4	7×12	8×14	4	1	5.86
	115	4 1/2	8×12	8×14	4	1	8.12
	127	5	9×12	8×16	4	1	9.18
Reaming bit	152	6	2×14	20×14	5	2	-

T51 89mm Spiral Retrac Body Rock Drill Button Bit 0

T51 89mm Spiral Retrac Body Rock Drill Button Bit 1

T51 89mm Spiral Retrac Body Rock Drill Button Bit 2
