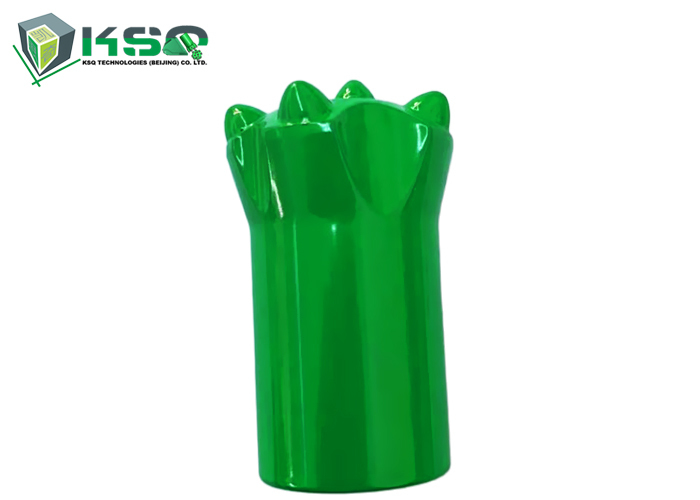

Tungsten Carbide 4° 46mm Tapered Button Bit for Rock Mining

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	tapered 4° 46mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Surface Treatment:	Spray-Paint	Color:	On Request
OEM/ODM:	Yes	Matched Rod:	Hex19/Hex22/Hex25 Taper Rod
Steel Material:	High Carbon Steel	Transport Package:	Carton
Highlight:	Tungsten carbide tapered button bit , 46mm rock mining drill bit , 4 degree tapered button bit

Tungsten Carbide 4° 46mm Tapered Button Bit for Rock Mining

KSQ offers a complete line of tapered rods and bits for all of your hand-held pneumatic drilling needs. For mine, quarry and tunnel work, we provide quality tools that withstand the toughest rock drilling demands.

With our comprehensive product line, you can find the exact configuration to integrate into your drilling operation. Our tapered bit and rods come in a variety of taper angles, and we provide tapered rods in a full range of shank configurations and steel hex diameters. Our tapered bits include both cross and button designs, as well as chisel design. KSQ tapered rods are available with high-frequency or fully carburized heat treatments.

Taper Button Bit Features

Comparing with taper chisel bits and taper cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency
Button bits are popular among users for their superior performance
Available in various tungsten carbide insert types: hemispherical button, conical button and parabolic button
Hemispherical button offers high bearing capacity and abrasive resistance
Conical button and parabolic button provide high drilling speed and low abrasive resistance

Technical Specifications

Taper degree: 4°, 6°, 7°, 11° and 12°
Diameter: 28mm to 45mm
Carbide profile: spherical and ballistic
Socket inside diameter: 19mm / 22mm / 25mm
Carbide quantity: 4 to 8 pieces
Length: 50mm to 80mm

Product Dimensions

Description	Diameter (mm)	Length (mm)	No. of buttons	Weight (kg)
Taper Button Bit Taper: a=4°,6°,7°,11°,12° Socket inside Dia. D=19, 22, 25	26	50	5	0.2
	27	50	5-6	0.2
	28	50	4-5	0.2
	29	50	4	0.2
	30	50-80	4-7	0.2-0.3
	32	50-80	5-8	0.2-0.3
	33	50-80	6-9	0.2-0.36
	34	50-55	6-9	0.22-0.3
	35	55-80	7-8	0.22-0.37
	36	50-55	4-7	0.3-0.35
	37	55	7	0.3
	38	50-55	4-7	0.25-0.35
	40	50-55	4-7	0.35
	41	50-71	7	0.35
	42	50	4-5	0.4
45	50-71	6-7	0.5
