High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit

High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit

  • High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit
  • High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit
High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: QL50-140mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 20-30
Supply Ability: 3000
Contact Now
Detailed Product Description
Highlight:

High Air Pressure DTH Hammer

,

QL50-140mm Rock Drilling Hammer

,

DTH Hammer for Rock Drilling

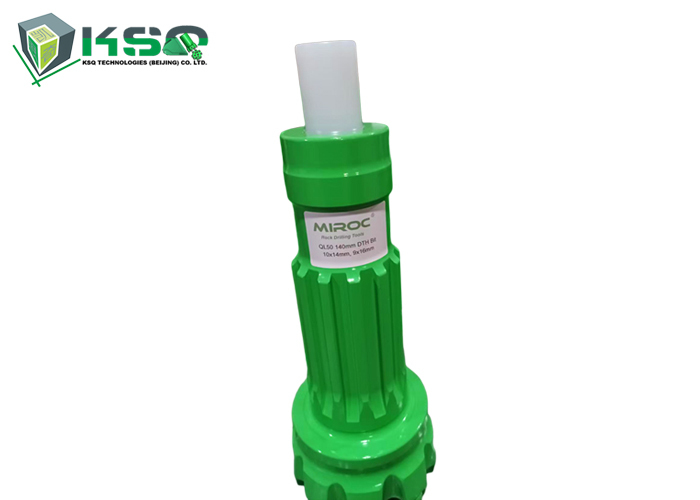

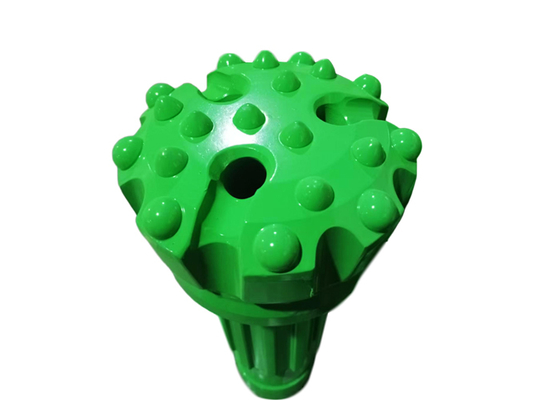

High Air Pressure Rock Drilling QL50-140mm DTH Hammer Bit

The QL50 DTH (Down-The-Hole) bit is a specific type of drilling bit used in rock drilling operations. It is designed to be used with Down-The-Hole hammers and is commonly used in mining, construction, and geotechnical drilling applications.

Valved drill bits are a type of down-the-hole (DTH) drill bit used for drilling blast holes in mining and quarrying operations. They are designed to work with DTH hammers and are typically used to drill holes in hard rock formations.

Advantages
  • Improved drilling efficiency: The valves help to control the flow of air and cuttings, which improves the drilling efficiency and reduces the amount of time it takes to drill a hole.
  • Reduced wear and tear: The valves also help to protect the bit from wear and tear, which extends the life of the bit.
  • Increased safety: Valved drill bits are designed to be more stable than other types of DTH drill bits, which can help to reduce the risk of accidents.
Applications
  • Drilling blast holes for blasting operations in mining
  • Drilling exploratory holes for mineral exploration
  • Drilling holes for water wells and geothermal wells
Specifications
Shank style Diameter in mm Flat face Convex face Concave face Approx. weight Part number
QL 50 135 √ √ √ 16.2 kgs QL50-135
140 √ √ √ 16.6 kgs QL50-140
146 √ √ √ 17.1 kgs QL50-146
152 √ √ √ 17.1 kgs QL50-152
165 √ √ √ 18.0 kgs QL50-165
Product Images
High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit 0
High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit 1
High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit 2
High Air Pressure Rock Drilling QL50-140mm DTH Hammer Dit 3
