Name: Top Hammer Rock Drilling Tools T45、T51 Rock Drill Button Bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T45、T51
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

Top Hammer Rock Drilling Tools T45、T51 Rock Drill Button Bit

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	T45、T51

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Type:	DRILL BIT	Material:	Carbon Steel
Use:	Well Drilling,Drilling Tool	Thread:	T45、T51
Size:	89mm、102mm	Color:	Customized
Heat Treatment:	Fully Carburization	Feature:	High Wear Resistant
Highlight:	T45 rock drill button bit , T51 rock drill bit , hammer drilling tools with warranty

Top Hammer Rock Drilling Tools T45,T51 Rock Drill Button Bit

Product Description

Top Hammer drilling tools are designed to transmit intensive impact power into the rock while minimizing energy loss. This results in increased production, reduced maintenance, and more sustainable operations. These reliable Top Hammer tools are ideal for demanding operations.

Applications

Surface or underground operations
Tunneling or quarrying
Road construction and general construction

Features

Skirt body: Retrac, normal, straightrac
Face type: Flat, uniface, Drop Center
Carbide shape: Dome, ballistic, semi-ballistic
Used in bench drilling and underground long hole drilling
Compatible with extension MF rod, MM rod heavy duty top hammer drilling tools

Technical Specifications

Part Number	Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
4148300811	89	3 1/2	4x13	8x13	40°	2	-	4.6
4148300812	89	3 1/2	6x11	8x12	35°	2	-	4.6
4148300813	89	3 1/2	3x11, 2x11	6x13	35°	3	1	4.1
4148300814	89	3 1/2	4x11, 1x11	8x12	35°	4	-	4.6
4148300815	89	3 1/2	4x13, 1x13	8x13	35°	4	-	4.6

T51 Button Bit Specifications

#	Bit Dia. (mm)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Front Flushing Holes	Side Flushing Holes	Weight (kg)
1	89	3x11, 2x11	6x13	4	-	4.9
2	102	3x13, 2x13	6x14	3	1	5.2
3	115	6x14	8x14	2	-	6.8
4	127	4x16, 2x13	8x16	4	-	7.5

Product Images

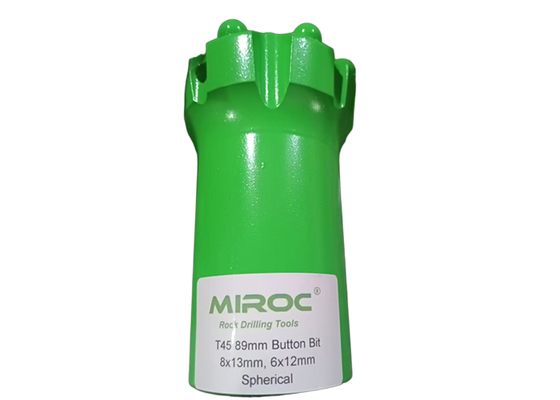

Top Hammer Rock Drilling Tools T45、T51 Rock Drill Button Bit 0

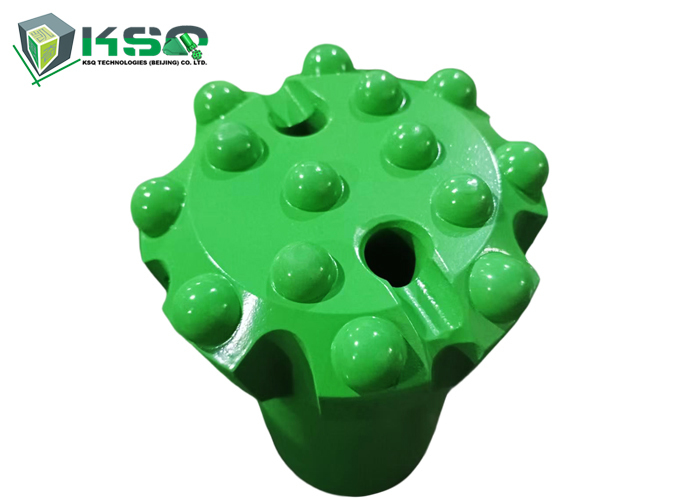

Top Hammer Rock Drilling Tools T45、T51 Rock Drill Button Bit 1
