Name: Reverse Circulation Drilling Tools RC Hammer Drill Bit MR116-124mm
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: MR116-124mm
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

Reverse Circulation Drilling Tools RC Hammer Drill Bit MR116-124mm

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	MR116-124mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Usage:	For DTH Driller	Material:	High Manganese Steel
Mining Object:	Coal Machinery	Product Name:	DTH Hammer Bit
Application:	Ore Mining,stone Quarry, Water Well ,drilling Hole	Advantage:	Wear Resistant,High Performance, With Competitive Price
Button Shape:	Spherical/ballistic/ogive Button	Face Design:	Flat, Concave, Convex
Formation:	Medium Hard Rock Formation	Key Words:	DTH Hammer Drill Bit
Highlight:	RC hammer drill bit 124mm , reverse circulation drilling tools MR116 , rock drilling tools with warranty

MR116 bit is not a standalone tool but a drill bit designed for use with a Mincon MR116 RC Hammer, a type of Reverse Circulation (RC) drilling equipment, which is used in mineral exploration and water well drilling to collect rock samples. The "MR116" refers to the hammer model, and the bit's size range is typically between 121mm and 127mm (4.75" to 5").

Application:
Used in Reverse Circulation (RC) drilling for mineral exploration and water well drilling.

Compatibility:
Designed to fit with the Mincon MR116 RC hammer.

Size:
The drill bit typically has a size range of 121mm – 127mm (4.75″ – 5″).

Function:
The bit's role is to cut into the rock and create a hole, while the RC hammer's design allows for fast and efficient sample collection.

MR Series Specifications

Hammer Model	Hole	Size Range
MR116	4.75″ – 5″	121mm – 127mm
MR120	5″ – 5.625″	127mm – 143mm
MR132	5.4″ – 5.75″	137mm – 146mm

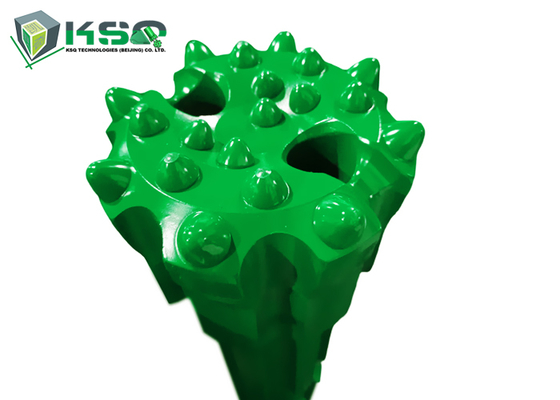

Reverse Circulation Drilling Tools RC Hammer Drill Bit MR116-124mm 0

Specifications:

1) face design: flat, convex, concave

2) inserts design: spherical, ballistic, parabolic

Features:

1) reliable quality

2) long service life

3) smooth flushing effect

4) designed to work with RC hammers

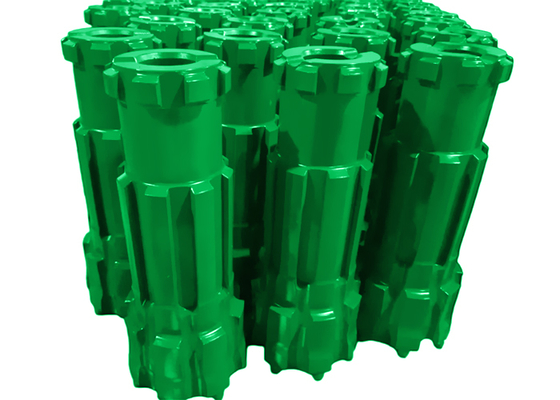

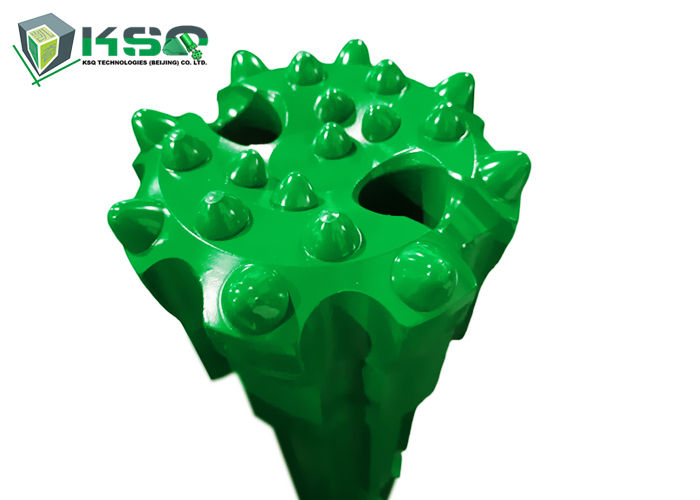

Reverse Circulation Drilling Tools RC Hammer Drill Bit MR116-124mm 1
