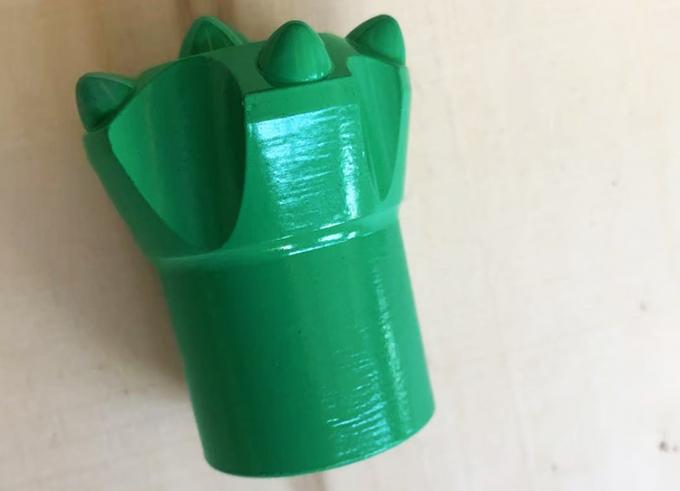

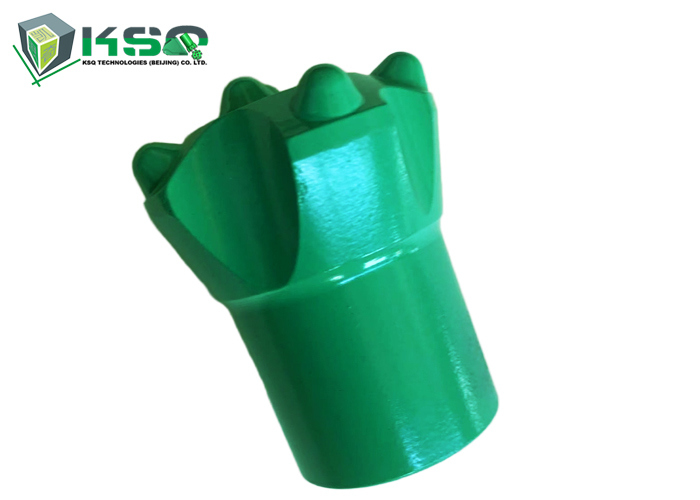

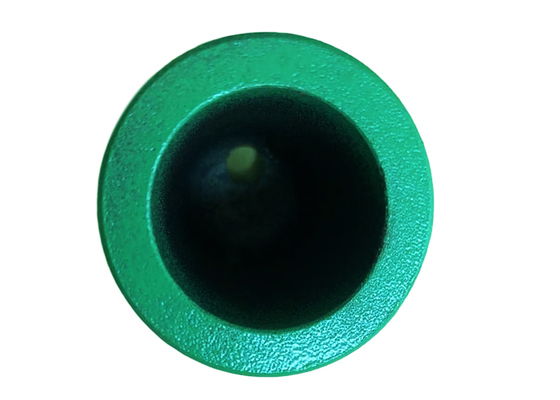

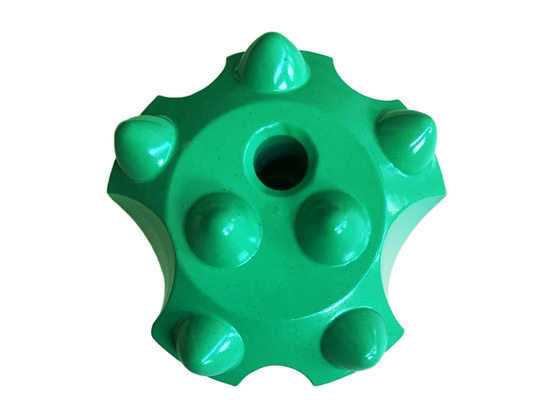

Name: 12° 41mm Rock Drilling Taper Button Bit for Quarrying with High-Quality
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 12° 41mm
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

12° 41mm Rock Drilling Taper Button Bit for Quarrying with High-Quality

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	12° 41mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Length:	Stub-length	Material:	Alloy Steel & Tungsten Carbides
Applicable Industries:	Quarrying, Small Hole Drilling, Mining	Taper:	6/7/11/12 Degree
Angle:	15°, 35°	Button Shape:	Spherical / Ballistic
Rock Class:	Soft, Medium And Hard	Service:	Longer Service Life And Lower Drilling Costs
Highlight:	12° 41mm rock drilling bit , quarrying taper button bit , high-quality rock drilling tool

12° 41mm Rock Drilling Taper Button Bit for Quarrying with High-Quality

Product Description

KSQ tapered bits are ideal for short hole drill & blast, as well as roof bolting applications. As a Chinese leading manufacturer of rock drilling bits, we have rich experience in researching and producing high-quality products. Our products are sold worldwide and have gained significant trust and praise from customers.

Why Choose Our Products?

We use the highest performance materials for every order according to customer requirements
We understand global market needs and can recommend the most suitable products
We offer the most competitive prices in the Chinese market by selling directly from our factory
All customers receive VIP service before and after sales
Our products give you a competitive advantage in your market

Available Specifications

Tapered button bit diameter: 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm etc.

Tapered button bit degree: 7°, 11°, 12° etc.

Key Features

Suitable for small hole range
Widely used in Dimensional Stone Quarrying Industry
Widely used in Underground Mining Industry
Available in Green, Blue or custom colors

Tapered Drilling Tools Specifications

Tapered drilling tools Types	Diameter (mm)	Taper Angle (Degree)	Skirt	Weight (kg)
Tapered chisel bits	20-60mm	4°,6°,7°,11°,12°	Normal, Length	0.15 - 0.45
Tapered cross bits	32-60mm	Normal, Length		0.18 - 0.7
Tapered button bits	30-55mm	Normal, Length		0.2 - 0.5

Applications

Underground mining
Dimensional Stone Industry
Tunneling, quarrying

Product Features

Tapered cross bits connect with tapered drill rod for drilling holes

Stable and mature welding technology ensures good quality of bits

Accurate dimension of taper degree perfectly matches the rods

Work reliable and very cost-effective

Detailed Specifications

Part Number	Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
4148300271	41	1 3/5	2x7	5x9	35°	1	1	0.41
4148300272	32	1 1/4	2x7	5x7	35°	1	1	0.3
4148300273	33	1 2/7	2x7	5x7	35°	1	1	0.31
4148300274	33	1 2/7	2x7	6x7	40°	2	1	0.31
4148300275	35	1 3/8	2x7	6x7	40°	2	1	0.35
4148300276	38	1 1/2	2x7	5x9	35°	1	1	0.41
4148300277	41	1 3/5	2x7	5x9	35°	1	1	0.42
4148300278	35	1 3/8	2x7	5x9	35°	1	1	0.38
4148300279	36	1 3/7	2x7	5x9	35°	1	1	0.39
4148300280	38	1 1/2	2x7	5x9	35°	1	1	0.41
4148300281	41	1 3/5	2x7	5x9	35°	1	1	0.42
