Name: Hard Rock Drill Head T51-102mm Flat Face Spherical Thread Rock Drill Button Bit for Mining
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T51-102mm
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

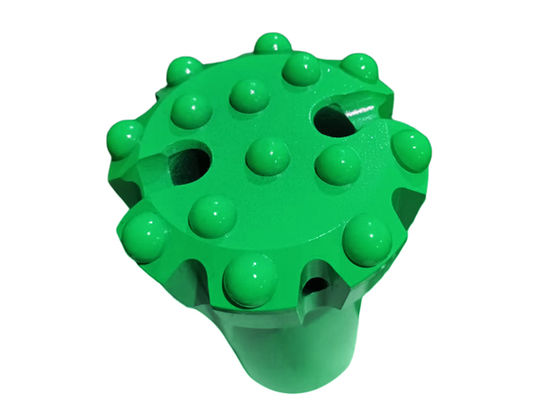

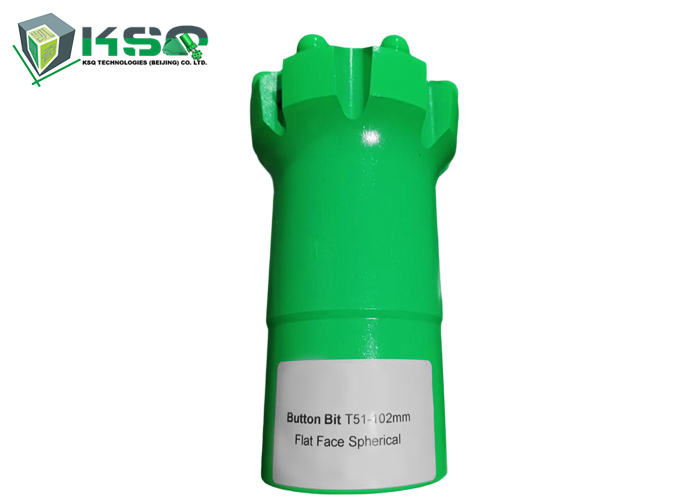

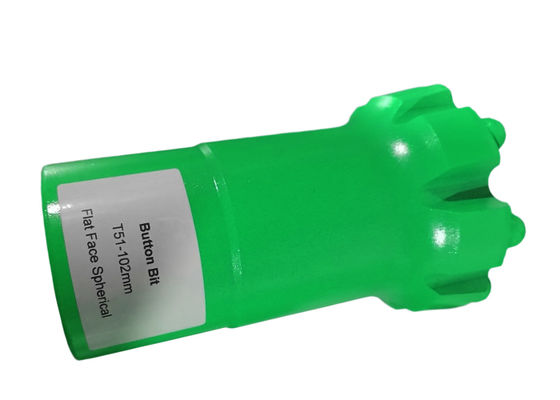

Hard Rock Drill Head T51-102mm Flat Face Spherical Thread Rock Drill Button Bit for Mining

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	T51-102mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Thread:	T51 Button Bit	Diameter:	102mm
Material:	Alloy Steel & Tungsten Carbides	Type:	Rock Drilling Bit
Application:	Drifting&Tunneling	Class:	Hard
Body:	Retrac Skirt, Standard Skirt	Button Bit:	Drop Center, Flat Front
Other Thread:	R25, R32, R35, T38, T51, St58, St68, Gt60	Application Industries:	Construction Works, Energy & Mining
Highlight:	T51 rock drill bit for mining , 102mm flat face drill head , spherical thread rock drill bit

Hard Rock Drill Head T51-102mm Flat Face Spherical Thread Rock Drill Button Bit for Mining

Product Description

Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

T51-102mm Drop Center Rock Drilling Button Bit. Rock drilling thread button bits are widely used in all kinds of mining, drilling, quarrying, engineering, construction, water well drilling, oil exploring industries etc.

Product Specifications

Product item	Thread button bit
Size	T51 Thread
Diameter	102mm
Type	Flat face with standard skirt
Buttons diameter	Front button:613mm, Gauge button:814mm
Buttons Type	Spherical

Detailed Specifications

T51 Button Bit	Bit Dia.	Buttons and Size (mm)	Flushing Hole	Weight	Part Number
	mm	inch	Front	Gauge	Front	Side	kg
Button Bit, Drop Center Spherical Buttons, B11XX	89	3 1/2	3x11, 2x11	6x13	4	0	4.9	4148300885
	102	4	3x13, 2x13	6x14	3	1	5.2	4148300890
Button Bit Spherical Buttons, B12XX	89	3 1/2	4x13	8x13	2	0	4.9	4148300883
	102	4	4x14	8x14	2	0	5.8	4148300888
Button Bit Spherical Buttons, B13XX	89	3 1/2	5x13	8x13	2	1	4.9	4148300884
Button Bit,Drop Center Spherical Buttons, B13XX	89	3 1/2	4x11,1x11	8x13	4	0	4.9	4148300886
	89	3 1/2	4x13,1x13	8x13	4	0	4.9	4148300887
	102	4	4x13,1x13	8x14	4	0	5.8	4148300891
Button Bit Spherical Buttons, B14XX	102	4	6x13	8x16	2	1	5.8	4148300889
	115	4 1/2	6x14	8x14	2	0	6.8	4148300893
	115	4 1/2	6x14	8x16	2	0	6.8	4148300894

Advantages

Our products can match over 95% against the original products
Price are competitive against the famous brands and best quality against the small factory

About Us

Our factory has been specialized in manufacturing drilling tools and spare parts for over 15 years.
We have advanced technology and equipment.
Our technician has more than 15 year's professional working experience.
Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
