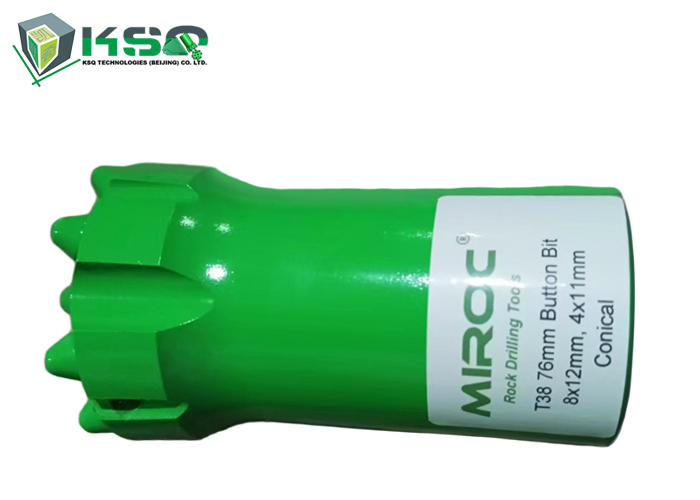

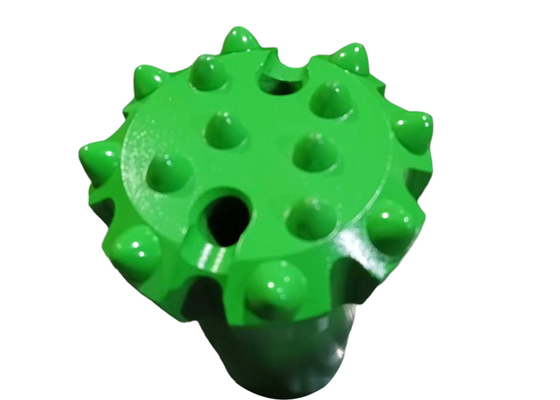

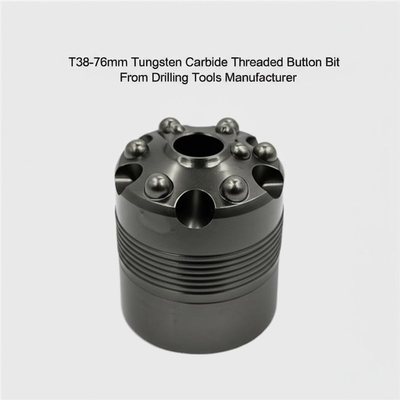

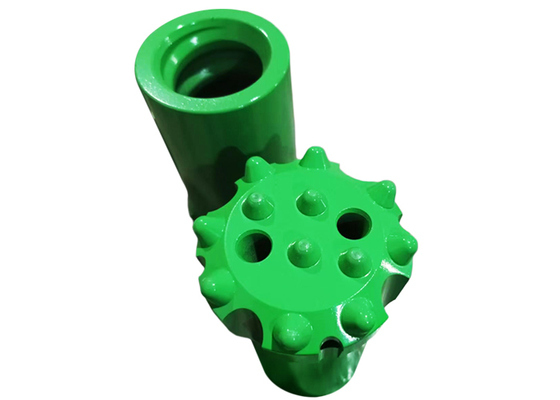

Name: T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38-76mm
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling

Product Details:

Place of Origin:	china
Brand Name:	MIROC
Certification:	ISO
Model Number:	T38-76mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Product:	T38-76mm Button Bit	Button Shape:	Ballistic, Spherical, Composite Buttons
Application:	Bench Drilling, Underground Production Drilling, Long Hole Drilling	Body:	Retrac Skirt, Standard Skirt
Key Words:	Rock Drilling Bit	Usage:	Rock Drilling
Highlight:	T38-76mm Threaded Button Bit , Ballistic Buttons Rock Drill Bit , Spherical Buttons Tungsten Carbide Button Bit

T38-76mm Tungsten Carbide Threaded Button Bit

Product Description

Description: Threaded button bit

Raw material: Alloy steel and tungsten carbides

Thread: R25, R28, R32, R35, R38; T38, T45, T51, T60, ST58, ST68

Face: Flat front, drop center

Diameter: 35mm-127mm

Carbide: Ballistic, conical, spherical

Color: Customized

Application: Used to drill deep holes in underground mines, open pit mines, and tapholes

Customization: Thread, diameter, buttons number, button type, and flushing holes can be customized according to client's requirements and drawings

Key Features

Premium material with high-quality alloy steel and tungsten carbide from internationally renowned brands
Advanced heat treatment technology for high wear resistance
High toughness and wear resistance
Rich production experience and market feedback data from clients
Large capacity, stable quality, short lead time, competitive pricing

Specifications of Button Bits (T38)

Bit Dia. (mm)	Buttons and Size (mm)	Flushing Hole	Weight (kg)
64	3×10, 1×10 (Front) 6×11 (Gauge)	3 (Front)	1.7
70	3×10, 1×10 (Front) 6×12 (Gauge)	3 (Front)	1.8
76	3×11, 1×11 (Front) 6×12 (Gauge)	3 (Front) 1 (Side)	2.6
89	3×11, 2×11 (Front) 6×13 (Gauge)	3 (Front) 1 (Side)	3.3
