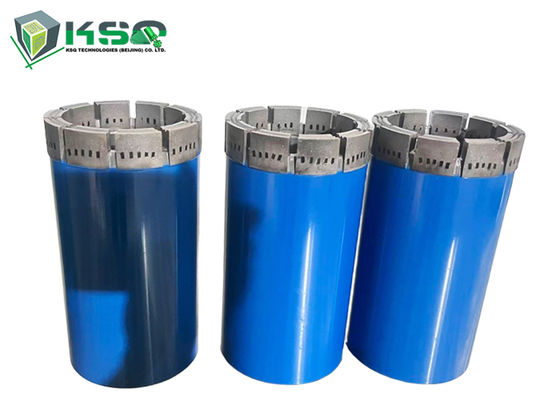

Name: T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T6-101
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	T6-101

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Type:	Core Drill Bit	Material:	Diamond
Crown Profile:	Standard	Waterways:	Standard /Face Discharge /Turbo /Spiral
Applicaion:	All Conventional And Wireline Core Barrel	Use:	Mining Exploration Diamond Drilling
Highlight:	Standard Crown Profile Diamond Core Bit , Face Discharge Waterways Core Drill Bit , Tungsten Carbide Matrix Impregnated Diamond Core Bit

T6-101 Diamond Core Bit with Diamond for Mining

Product Description

The T6-101 Impregnated Diamond Core Bit is designed for surface exploration when used with the T6 series core barrel. These impregnated bits can penetrate a broad range of formations from soft to extremely hard rocks.

Manufactured with high-quality synthetic diamonds evenly distributed through a tungsten carbide matrix, these bits wear evenly during drilling, continuously exposing new, sharp diamond points throughout their lifespan. All impregnated bits feature T.C. and diamond gauge protection, with optimal diamond size, concentration, and matrix composition tailored to specific rock formations.

Size Specifications

Size	Outside Diameter (inch)	Outside Diameter (mm)	Inside Diameter (inch)	Inside Diameter (mm)
T6-76	2.997/2.987	76.12/75.87	2.249/2.239	57.12/56.87
T6-86	3.391/3.381	86.13/85.88	2.643/2.633	67.13/66.88
T6-101	3.981/3.971	101.12/100.8	3.115/3.105	79.12/78.87
T6-116	4.575/4.560	116.20/115.8	3.667/3.657	93.14/92.89
T6-131	5.165/5.150	131.19/130.8	4.257/4.247	108.13/107.89
T6-146	5.755/5.740	146.18/145.8	4.847/4.837	123.18/122.89

Applications

Impregnated diamond core bits (including NQ, HQ, T2-76 models) are widely used in mineral exploration and site investigation industries. These bits have become the standard in mineral exploration due to their superior performance advantages:

Extremely wide range of applications across various rock formations
Consistent performance in both soft and hard rock conditions
Long service life with continuous diamond exposure as the matrix wears
