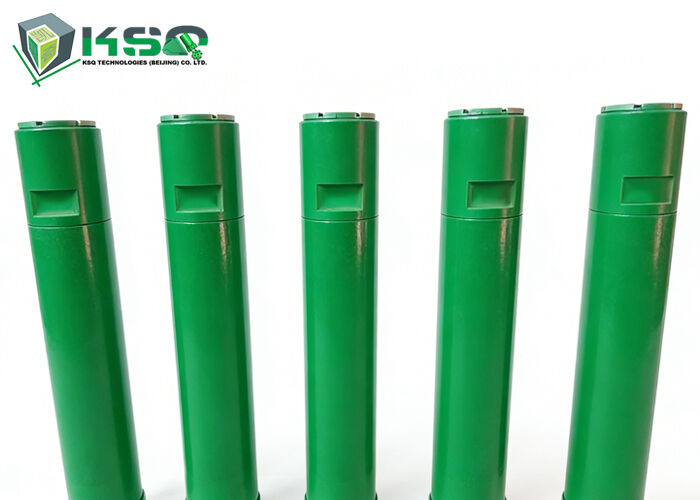

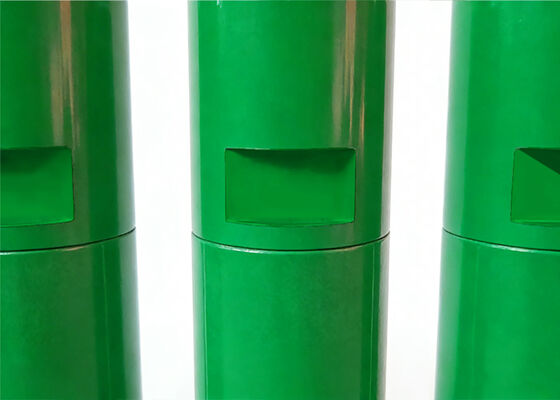

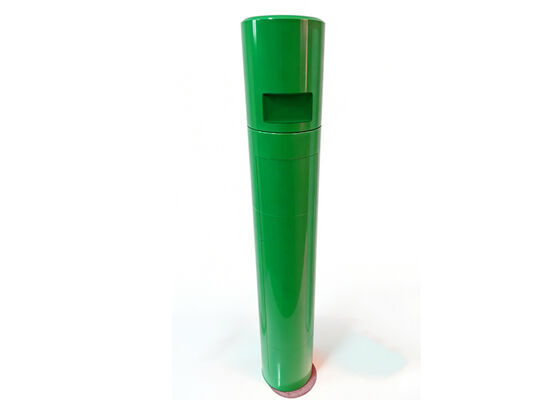

Reverse Circulation Hammer for High Penetration Rates in 2 Inch to 12 Inch RC Drilling Operations

KSQ offers a complete line of Reverse Circulation hammers and spare parts, designed to replace KSQ series Reverse Circulation Hammers & Bits. Available in a wide range of sizes and styles, these hammers deliver maximum performance and longevity on all RC drilling operations.

Reverse Circulation hammers feature an inner sample tube that extends through the center and into the top of the hammer bit. The RC hammer exhausts air between the bit splines and over the face of the bit, forcing the sample into recovery holes in the bit face. The sample then travels through the center of the hammer and upward through the drill rod inner tubes to the surface for collection. A shroud or collar is required to direct return air and cuttings up through the bit face.

While conventional DTH hammers can be used in RC drilling operations, they increase the potential for sample loss and contamination. Conventional systems require a cross-over sub between the hammer and drill rod, with samples traveling from the bit face up the outside of the hammer before being directed into the cross-over sub and up through the dual wall rods.

We offer a comprehensive range of reverse circulation down the hole hammers and bits suitable for all depths and ground conditions. Reverse circulation drilling is becoming increasingly popular worldwide due to its high-quality sample results and operational speed for shallower holes. As the most widely accepted chip sampling method, our innovative designs continue to advance the capabilities of this valuable sampling technology.

• High penetration rates in all rock conditions
• Quality samples from areas of lost circulation
• Large, uncontaminated sample return
• Increased longevity means lower cost per meter
• Option of diamond-enhanced carbide bits for deep and abrasive drilling conditions, with no bit sharpening required
