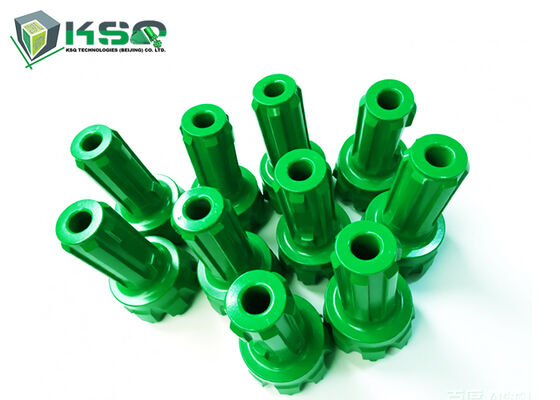

Name: 110-120mm Low Air Pressure DTH Hammer Drill Bit for Water and Mine with Alloy Steel Construction
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: CIR110
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

110-120mm Low Air Pressure DTH Hammer Drill Bit for Water and Mine with Alloy Steel Construction

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	CIR110

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Model NO.:	CIR110	Type:	Drilling Bit For Mining
Material:	Alloy Steel	Usage:	Well Drilling, Mine Drilling
Hammer Shank:	CIR110	Bit Dia:	4inch~8inch (110mm~200mm)
Bit Face Shape:	Falt Face/Convex Face/Drop Face	Specification:	ISO9001
Highlight:	Low Air Pressure DTH Hammer Drill Bit , 110-120mm Button Bit , Alloy Steel Down The Hole Bit

CIR110-120mm Low Air Pressure DTH Hammer Drill Bit for Water and Mine

Product Overview

KSQ's low air pressure DTH hammer button bits are engineered to deliver exceptional drilling capacity, remarkable reliability, and impressively low operating costs. By integrating advanced production technologies with skillful design and high-quality materials, we guarantee outstanding performance, unparalleled durability, and long-lasting service life. These superior drilling tools are the preferred choice for industries demanding precision and strength, including mining and construction. Our cutting-edge tools excel in geotechnical engineering, adeptly handling diverse challenging rock types from the hardest formations to those with lesser toughness.

Technical Specifications

Type	Diameter (mm)	Spline NO	Weight (kg)
CIR65	65	4	1.5
CIR65	68	4	1.6
CIR70	76	4	2.0
CIR70	85	4	2.3
CIR90	90	6	3.75
CIR90	110	6	4.8
CIR110	110	6	6.2
	130	6	8.05
	140	6	9.0
CIR150	155	6	16.7
	165	6	17.55
	178	6	18.85
CIR170	195	6	24.2
CIR170	203	6	26.35
