NUMA100 Large Size Excellent Straightness DTH Hammer Bit with Carbide Inserts for Mining Borehole Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	NUMA100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Model NO.:	Numa100-305	Type:	Drill Bit
Material:	Carbon Steel	Usage:	Well Drilling, Ore Mining
Model Number:	Cop, DHD, Mission, Ql, SD, CIR, BR	Face Design:	Flat Face, Convex Face, Concave Face
Highlight:	Large Size DTH Hammer Bit , Excellent Straightness Down-The-Hole Drill Bit , Carbide Inserts NUMA100 Bit

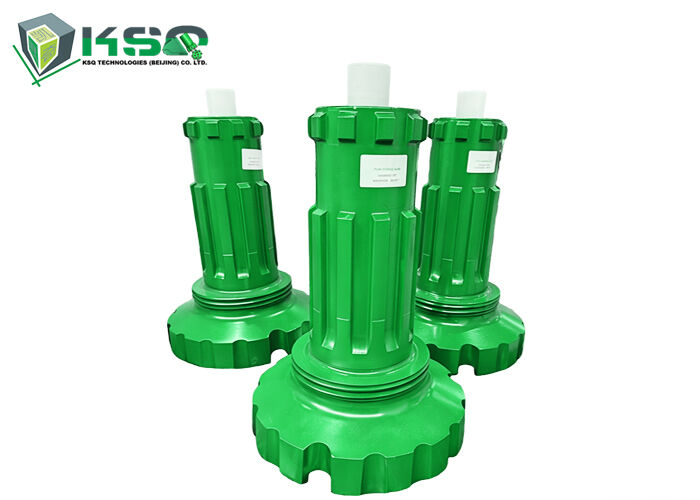

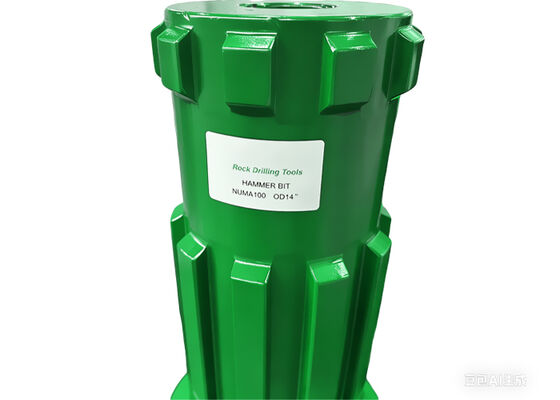

NUMA100 Large Size Excellent Straightness DTH Hammer Bit

The NUMA100 is a large-diameter Down-The-Hole (DTH) drill bit designed for mining borehole drilling applications. Engineered to fit the NUMA Challenger 100 DTH Hammer, this heavy-duty rock drilling tool delivers high penetration rates across various geological conditions.

Product Specifications

Type: DTH Button Bit (Down-The-Hole)
Diameter Range: 9-7/8" to 15" (250mm to 380mm)
Compatibility: NUMA 100 series hammers, interchangeable with Atlas Copco, Ingersoll-Rand, and Mission

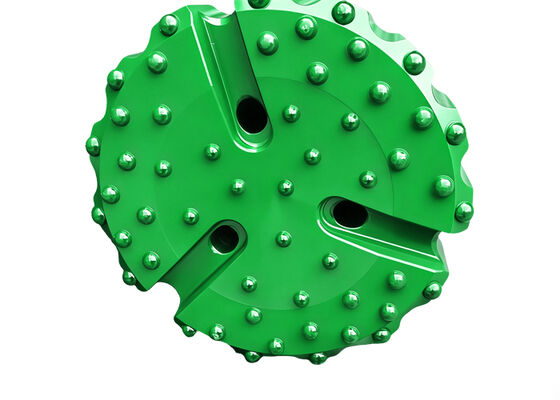

Design: Carbide button inserts with various face configurations (flat, concave, convex) for optimal rock cutting

"NUMA100 bit" is the specialized cutting tool that pairs with the NUMA100 DTH hammer to efficiently drill deep, large-diameter holes in rock.

Head Shape	Head Diameter(mm)	Shank Length (mm)	Spline	Port holes	Button qty pcs x dia mm			Weight (kg)
Head Shape	Head Diameter(mm)	Shank Length (mm)	Spline	Port holes	Button Type	Gauge Buttons	Front Buttons	Weight (kg)
concave face	254	375	10	2	Domed	12×φ19	8×φ18+19×φ16	89
concave face	275	375	10	2	Domed	12×φ19	8×φ18+20×φ16	93.5
concave face	305	375	10	3	Domed	15×φ19	27×φ18+8×φ16	103.5
concave face	325	375	10	3	Domed	15×φ19	27×φ18+9×φ16	112
concave face	350	375	10	4	Domed	16×φ19	32×φ18+14×φ16	121
concave face	400	375	10	4	Domed	16×φ19	40×φ18+25×φ16	146.5

Competitive Advantages

Compatibility matching over 95% against original equipment manufacturer specifications
Competitive pricing compared to major brands while maintaining superior quality standards
Enhanced performance and durability for demanding mining and construction applications

The NUMA100 DTH Hammer Bit represents the ideal cutting solution for creating large-diameter holes in challenging geological formations, combining precision engineering with robust construction for maximum drilling efficiency.
