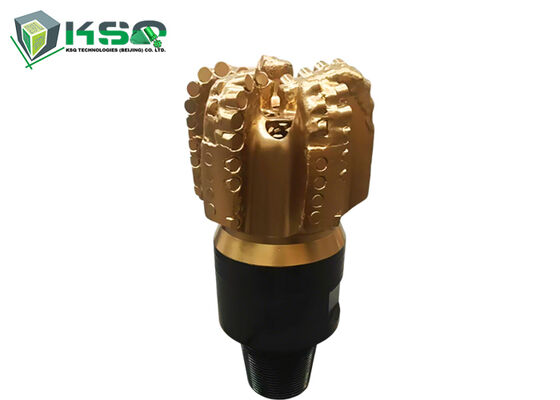

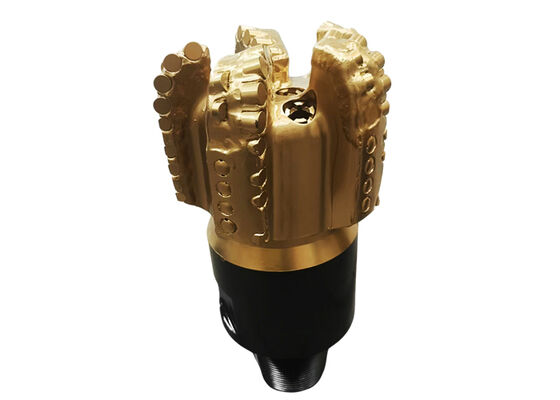

Name: High Performance 5 Blades PDC Drill Bit for Hard Rock Mining and Water Well Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 5 Blades Pdc Drill Bit
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

High Performance 5 Blades PDC Drill Bit for Hard Rock Mining and Water Well Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	5 Blades Pdc Drill Bit

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Type:	Drag Bit	Processing Type:	Forging
Application:	Construction	Color:	Customized Color
Quality:	HighQuality	Advantage:	High Performance
Highlight:	5 Blades PDC Drill Bit , High Performance Rock Drill Bit , Hard Rock Drill Bit

High Quality 5-Blade PDC Drill Bit for Mining & Water Well Drilling

The PDC non-coring drill bit delivers exceptional performance in geological exploration, mining, and water well drilling applications. Engineered with premium polycrystalline diamond cutters, this robust drill bit provides superior penetration rates and extended service life in hard, abrasive formations.

Key Features & Benefits

High-quality arc PDC cutter gauge reduces rock abrasion on the bit body while enhancing wear resistance and stability
Steel body construction with enhanced welding and double row cutters for improved penetration ability and wear resistance
Advanced dynamic flow simulation technology optimizes hydraulic design for superior bottom hole flow field, enhanced cleaning, cooling capacity, and anti-balling performance

Technical Specifications

IADC Code: S223

Design Parameters	Operating Parameters
Size (in): 8 1/2 Primary cutter size (mm): 19 Gage length (in): 4 Nozzle: 6NZ+1P Number of blades: 5 API Shank (in): 4 1/2 REG	WOB(kn): 25-100 RPM: 60-260 Flow rate (l/s): 22-35
Size (in): 12 1/4 Primary cutter size (mm): 19 Gage length (in): 3 Nozzle: 6NZ+1P Number of blades: 5 API Shank (in): 6 5/8 REG	WOB(kn): 30-140 RPM: 60-260 Flow rate (l/s): 28-70
Size (in): 13 5/8 Primary cutter size (mm): 19 Gage length (in): 2 5/7 Nozzle: 7NZ Number of blades: 5 API Shank (in): 6 5/8 REG	WOB(kn): 30-160 RPM: 60-260 Flow rate (l/s): 35-70
Size (in): 14 3/4 Primary cutter size (mm): 19 Gage length (in): 2 8/9 Nozzle: 7NZ Number of blades: 5 API Shank (in): 7 5/8 REG	WOB(kn): 30-170 RPM: 60-260 Flow rate (l/s): 40-70
Size (in): 16 Primary cutter size (mm): 19 Gage length (in): 3 Nozzle: 7NZ Number of blades: 5 API Shank (in): 7 5/8 REG	WOB(kn): 30-180 RPM: 60-260 Flow rate (l/s): 40-70
Size (in): 17 1/2 Primary cutter size (mm): 19 Gage length (in): 3 Nozzle: 7NZ Number of blades: 5 API Shank (in): 7 5/8 REG	WOB(kn): 30-200 RPM: 60-260 Flow rate (l/s): 45-80
