Name: Factory Price Wholesale ISO Certified Tungsten Carbide DTH Bit For Borehole Well Drilling Hard Rock Button Tool
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: CIR dth hammer bit
Price: 150 USD
Availability: InStock

Home Products Rock Drilling Tools

Factory Price Wholesale ISO Certified Tungsten Carbide DTH Bit For Borehole Well Drilling Hard Rock Button Tool

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	CIR dth hammer bit

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄150
Packaging Details:	Wooden box
Delivery Time:	20-30
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	30000

Contact Now

Detailed Product Description

Product Name:	DTH Hammer Bit	Application:	Coal Mining,Well Drilling,Construction Works
Advantage:	High Performance,Wear Resistant	Key Words:	DTH Hammer Drill Bit
Button Shape:	Spherical/Ballistic/parabolic/sharp/falt Bottons	Bit Face:	Center Drop/Flat/convex/concave/double Gauge Face Bits
Quality:	100% Quality Similarity World Top Class Brands	Shank Series:	COP, MISSION, SD, DHD, BR, QL, BR, CIR Etc.
Series:	Low/middle/high Air Pressure Dth Hammer	Color:	According To Your Requirements
Highlight:	ISO certified tungsten carbide DTH bit , hard rock borehole drilling tool , wholesale DTH bit for well drilling

Factory Price Wholesale ISO Certified Tungsten Carbide DTH Bit

Premium down-the-hole hammer bits for borehole well drilling in hard rock formations. Engineered for efficient ore mining, water well drilling, and exploration boreholes.

Product Description

These DTH drill bits are manufactured from high-quality forged alloy steel and fitted with tungsten carbide inserts. Precision-machined and heat-treated to withstand extreme down-hole conditions, they deliver reliable performance in both soft formations (carbonate rock, chalk, siltstone) and hard rock (limestone, granite, sandstone).

Key Specifications

Type	Down-the-Hole (DTH) Hammer Bit
Available Models	CIR130, CIR150, CIR170, Standard Thread Options
Popular Sizes	140mm, 175mm, 210mm
Material	High-grade Forged Alloy Steel + Tungsten Carbide Buttons
Heat Treatment	Precise hardening + Surface compression for fatigue resistance
Features	Wear-resistant, Efficient cutting, Gauge protection, Stable speed
Rock Compatibility	Soft: Chalk, Claystone / Medium: Limestone, Siltstone / Hard: Sandstone, Granite
Certification	ISO Certified

CIR Series Low Air Pressure DTH Bit Specifications

Type	Diameter (mm)	Number of Splines	Weight (kg)
CIR65	68	6	2.50
CIR70	76	6	3.40
CIR80	83	6	3.45
CIR80X	83	6	3.50
CIR90	90	6	3.50
CIR90	100	6	4.50
CIR90	130	6	9.50
CIR110	110	6	6.40
CIR110	123	6	8.50
CIR110W	110	6	6.50
CIR6110W	123	6	8.80
CIR6150	155	6	12.0
CIR150A	155	6	12.5
CIR150A	165	6	14.0

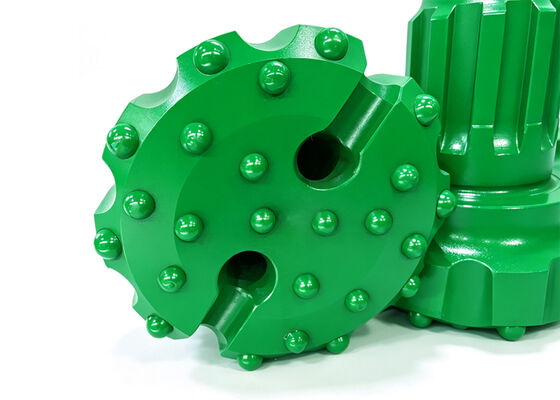

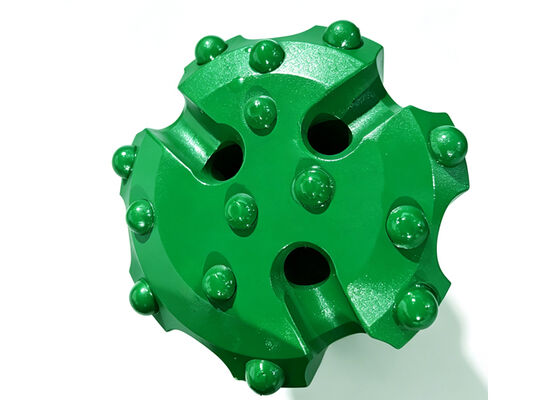

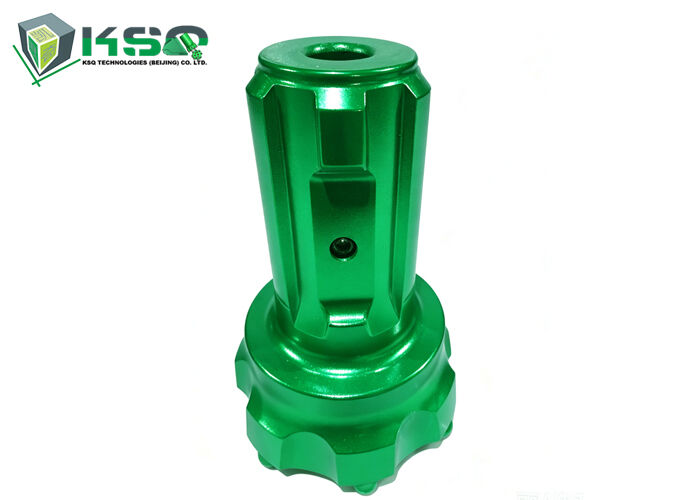

Product Images

Key Advantages

Longer Life: Superior alloy material outperforms competitors in wear resistance
High Efficiency: Sharp, wear-resistant buttons maintain high drilling speed
Stable Speed: Uses scraping and cutting action for consistent penetration
Gauge Retention: Excellent diameter protection ensures efficient use of cutting teeth and hole integrity
