Name: High Quality CIR110 CIR150 CIR170 DTH Hammer Bit For Hard Rock Mining Water Well Drilling Tool
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: CIR110 CIR150 CIR170
Price: 225.00 USD
Availability: InStock

Home Products Rock Drilling Tools

High Quality CIR110 CIR150 CIR170 DTH Hammer Bit For Hard Rock Mining Water Well Drilling Tool

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	CIR110 CIR150 CIR170

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄120-330
Packaging Details:	Wooden box

Contact Now

Detailed Product Description

Product Name:	CIR Series DTH Hammer Bits	Model Number:	CIR110 / CIR150 / CIR170
Type:	Down The Hole (DTH) Drill Bit	Material:	High Grade Alloy Steel
Button Type:	Spherical Button / Ballistic Button	Manufacturing Process:	Forged / Heat Treated
Working Pressure:	0.5 – 1.5 MPa	Application:	Mining, Water Well, Quarry, Borehole, Construction
Highlight:	CIR110 DTH hammer bit for hard rock , CIR150 water well drilling tool , CIR170 mining drilling bit

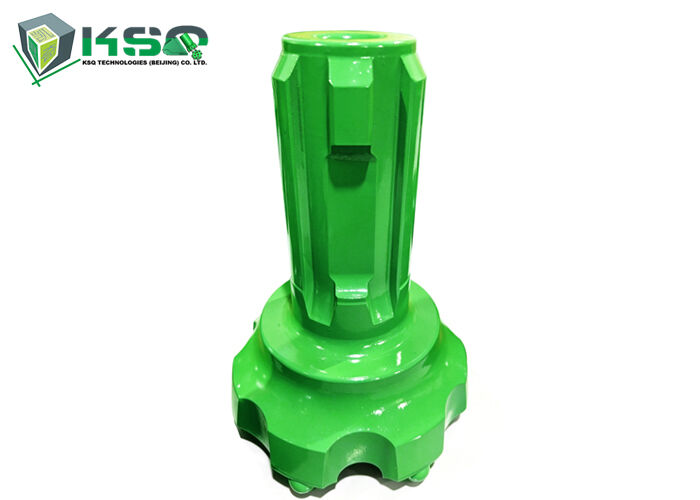

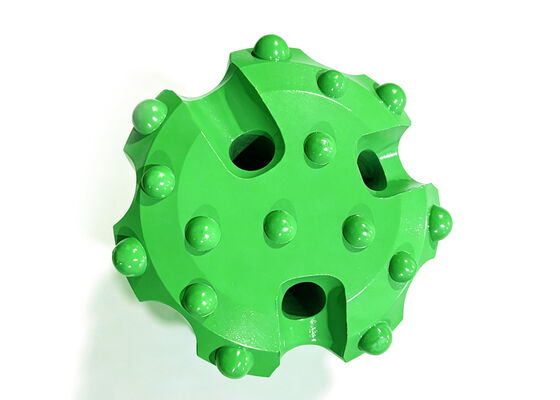

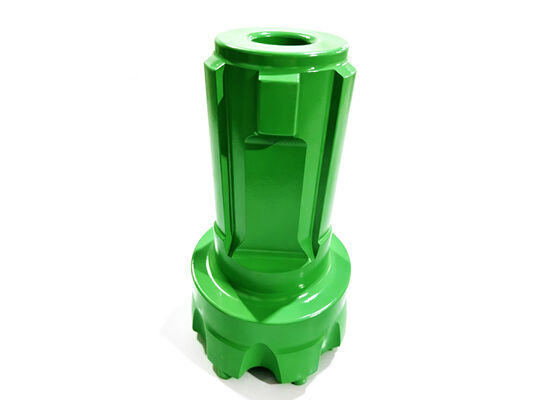

CIR Series DTH Hammer Bits for Hard Rock Mining & Water Well Drilling

Premium-grade CIR110, CIR150, and CIR170 down-the-hole hammer bits engineered for demanding drilling applications in hard rock mining, water well drilling, quarrying, and borehole construction. These tools deliver exceptional penetration rates, superior wear resistance, and reliable performance with standard CIR shank configurations.

Product Specifications

Parameter	CIR110	CIR150	CIR170
Bit Type	DTH Hammer Bit	DTH Hammer Bit	DTH Hammer Bit
Compatible Hammer	CIR110	CIR150	CIR170
Diameter Range	90-130mm	140-180mm	170-220mm
Shank Design	Standard CIR110	Standard CIR150	Standard CIR170
Button Material	Tungsten Carbide	Tungsten Carbide	Tungsten Carbide
Head Profile	Concave/Flat/Convex	Concave/Flat/Convex	Concave/Flat/Convex
Body Material	High-Grade Alloy Steel	High-Grade Alloy Steel	High-Grade Alloy Steel
Manufacturing	Forged / Heat Treated	Forged / Heat Treated	Forged / Heat Treated

Available Diameters

Model	Common Diameters (mm)
CIR110	90, 92, 95, 100, 105, 110, 115, 120, 125, 130
CIR150	140, 146, 152, 155, 160, 165, 170, 175, 180
CIR170	170, 175, 180, 185, 190, 195, 200, 210, 220

Industry Applications

Industry	Application
Hard Rock Mining	Blast hole drilling, ore extraction
Water Well Drilling	Potable water, irrigation, dewatering
Quarrying	Aggregate production, dimension stone
Borehole Drilling	Exploration and production boreholes
Construction	Foundation drilling, piling
Geothermal	Geothermal well drilling
