Name: High Quality R32 76mm Dome Reaming Button Bit Tungsten Carbide For Ore Mining Rock Drilling Tool
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: R32 76mm
Price: 85 USD
Availability: InStock

Home Products Rock Drilling Tools

High Quality R32 76mm Dome Reaming Button Bit Tungsten Carbide For Ore Mining Rock Drilling Tool

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	R32 76mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄85
Delivery Time:	7-14
Supply Ability:	3000

Contact Now

Detailed Product Description

Products Name:	Tungsten Carbide Dome Reaming Drill Bits	Application:	Mining / Quarrying / Tunneling /Construction
Color:	Customized	Usage:	Hole Opener
Thread Type:	R25, R28, R32, R35, R38, T38, T45, T51	Diameter:	64mm To 127mm
Rock Formation:	Hard / Medium Hard / Soft Rock Formation	Material:	Carbon Steel
Highlight:	R32 dome reaming button bit , 76mm tungsten carbide drill bit , ore mining rock drilling tool

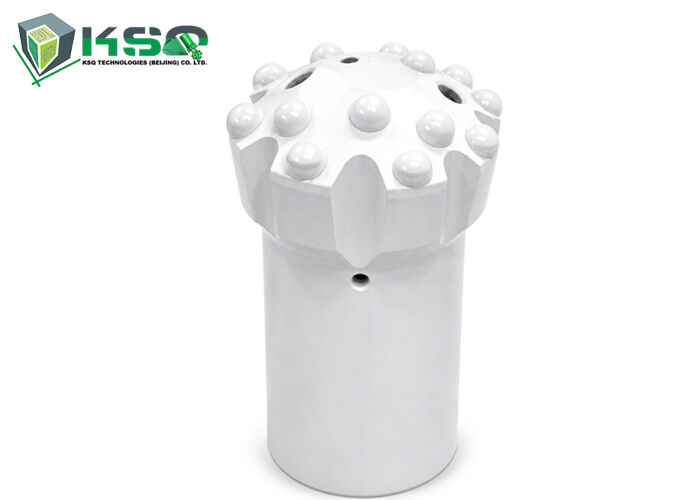

R32 76mm Dome Button Reaming Bit

The R32 Dome Bit is a threaded reaming bit designed for rock drilling, mining and hole enlargement applications. It features a 76mm drilling diameter, R32 threaded connection and dome-shaped tungsten carbide buttons for efficient rock penetration and wear resistance.

Product Specifications

Drill Bit	Diameter, mm	No x Button Diameter	Flushing Hole	Weight approx., kg
Dome Bit for Reaming	76	1 x 13 \| 9 x 13	35	2.0
Dome Bit for Reaming	89	1 x 13 \| 14 x 13	35	2.6
Dome Bit for Reaming	102	1 x 13 \| 16 x 13	35	3.2
Dome Bit for Reaming	127	1 x 13 \| 18 x 16	35	4.8

Product Features

R32 Threaded Connection: Designed with an R32 thread connection for compatible drilling systems and reliable connection during drilling operations.
76mm Reaming Diameter: The 76mm diameter provides an effective solution for hole enlargement and reaming applications in mining and rock drilling.

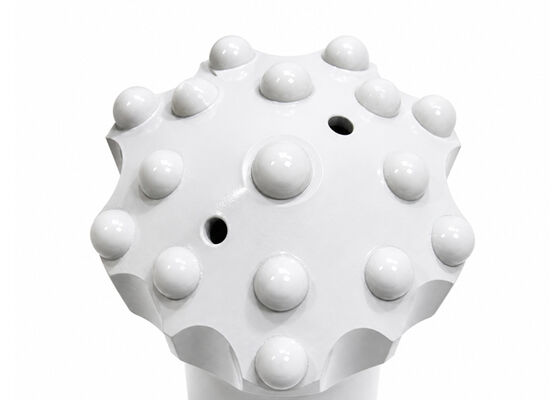

Dome Tungsten Carbide Buttons: Dome-shaped carbide buttons provide good impact resistance, wear resistance and drilling performance in hard rock formations.
Wear Resistant Construction: High-quality materials and carbide buttons help improve bit durability and service life under demanding drilling conditions.
Efficient Rock Drilling: The button arrangement is designed to provide stable rock penetration and efficient cutting during reaming operations.

Applications
