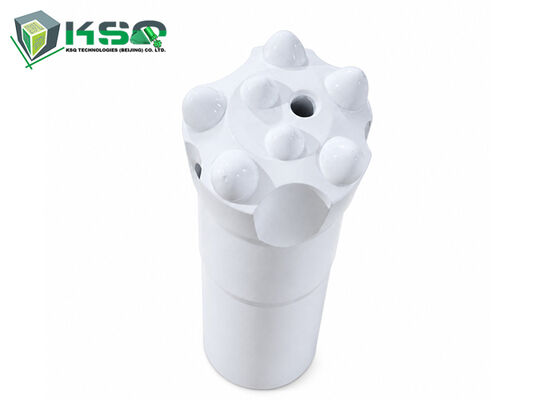

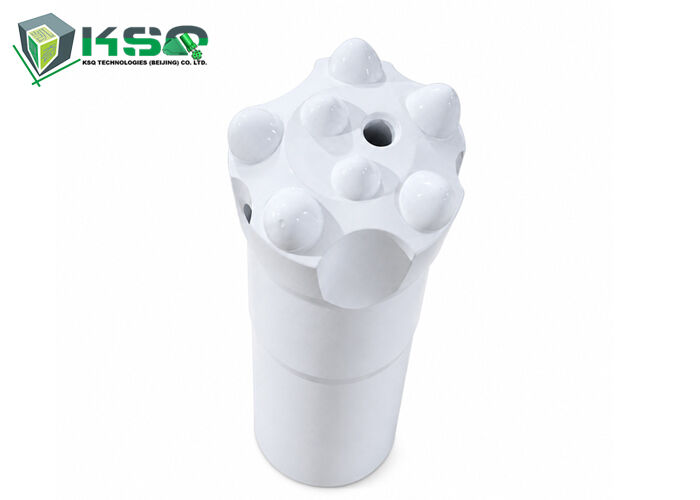

Name: R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: R25 35mm
Price: 35 USD
Availability: InStock

Home Products Rock Drilling Tools

R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	R25 35mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄35
Supply Ability:	3000

Contact Now

Detailed Product Description

Product Name:	R25 Rock Drill Button Bit	Button Material:	Tungsten Carbide
Body Material:	Alloy Steel	Heat Treatment:	Advanced Heat Treatment
Application:	Rock Drilling	Application Industry:	Mining Quarrying Construction
Suitable Rock:	Soft Medium Hard Rock	Drilling Method:	Top Hammer Drilling
Customization:	Available
Highlight:	35mm rock drill button bit , tungsten carbide threaded bit , mining quarrying rock drilling bit

R25 35mm Rock Drill Button Bit

The R25 35mm Rock Drill Button Bit is engineered for efficient rock drilling in mining, quarrying, construction, and general drilling applications. It combines high-quality tungsten carbide buttons with a forged alloy steel body to deliver reliable drilling performance and exceptional wear resistance.

High-Quality Tungsten Carbide Buttons

High-strength tungsten carbide inserts provide excellent wear resistance and impact resistance during continuous rock drilling operations. The optimized button configuration ensures effective rock penetration and stable drilling performance.

Precision Forged Steel Body

The bit body is manufactured from premium alloy steel and processed through precision forging and heat treatment. The reinforced construction delivers superior structural strength and durability under demanding drilling conditions.

Efficient Rock Penetration

The R25 threaded connection ensures secure compatibility with corresponding drilling rods and tools. The 35mm drilling diameter is ideal for small-diameter rock drilling applications requiring efficient penetration and accurate hole formation.

R25 Thread Button Bit Specifications

Bit Dia.	Buttons and Size (mm)	Flushing Hole	Weight	Part Number
mm	inch	Front	Gauge	Angle	Front	Side	kg
Spherical
33	1 2/7	2x7	5x7	35°	1	1	0.4	B733-R25-S
35	1 3/8	2x7	5x8	35°	1	1	0.4	B735-R25-S
38	1 1/2	2x7	5x8	30°	1	1	0.5	B738-R25-S
38	1 1/2	2x7	5x9	30°	1	1	0.5	B738-R25-S
41	1 5/8	2x9	4x9	35°	1	2	0.6	B741-R25-S
41	1 5/8	2x8	5x9	35'	1	1	0.6	B741-R25-S
45	1 7/9	2x9	4x11	35°	1	2	0.6	B645-R25-S
45	1 7/9	2x8	5x10	30°	1	2	0.6	B745-R25-S
45	1 7/9	2x8	5x11	30°	1	2	0.6	B745-R25-S
Ballistic
33	1 2/7	2x7	5x7	35°	1	1	0.4	B733-R25-B
35	1 3/8	2x7	5x9	25°	1	1	0.4	B735-R25-B
38	1 1/2	2x7	5x9	40°	1	1	0.5	B738-R25-B
41	1 5/8	2x8	5x9	40°	1	1	0.6	B741-R25-B
45	1 7/9	2x9	5x10	35°	1	2	0.6	B745-R25-B

Wide Application Range

Mining Drilling
Quarry Drilling
Rock Drilling
Construction Drilling
Tunneling
Bench Drilling
Small Hole Drilling
General Top Hammer Drilling

Customization Services

Different button configurations, carbide grades, bit diameters, and thread specifications can be customized according to your drilling equipment, rock formation, and working conditions.
