T45 HD712 790mm Shank Adapter Rock Drilling Tool For Mining Quarrying Construction Top Hammer Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	T45 HD712

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄165
Delivery Time:	7-14

Contact Now

Detailed Product Description

Model:	T45-HD712	Length:	790mm
Thread:	T45	Type:	Shank Adapter
Material:	High Strength Alloy Steel	Process:	Precision Forging And Heat Treatment
Drilling Method:	Top Hammer Drilling	Application:	Mining Quarrying Construction And Rock Drilling
Highlight:	790mm shank adapter rock drilling tool , T45 HD712 mining drilling tool , top hammer drilling construction tool

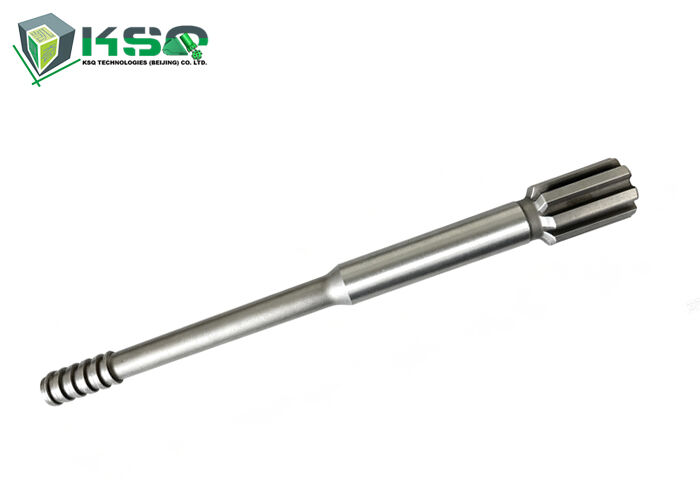

T45 HD712 790mm Shank Adapter Rock Drilling Tool

Designed for top hammer rock drilling systems in mining, quarrying, and construction applications.

Product Overview

The T45-HD712 790mm Shank Adapter provides a robust connection between the rock drill and drill string, efficiently transferring impact energy and rotational torque during demanding drilling operations.

Key Features

T45 Thread Connection
HD712 Model
790mm Overall Length
High Strength Alloy Steel Construction
Precision Forged Manufacturing
Advanced Heat Treatment
High Impact Resistance
Excellent Wear Resistance
Stable Torque Transmission
Reliable Drilling Performance
Long Service Life

Technical Specifications

Part Number	Product Code and Description	Thread	Length (mm)	Weight (kg)	Flushing Hole Size (mm)
4148301105	HD 260, HD 300 [G1]	T38	655	7.8	16
4148301106	HD 260, HD 300 [G2]	T45	655	7.8	16
4148301107	HD 609 [G1]	T38	620	6.2
4148301108	HD 609 [G2]	T38	690	6.5
4148301109	HD 609 [G3]	T45	620	6.9
4148301110	HD 612	T45	710	9.2
4148301111	HD 712	T45	788	11.2

Applications

Mining Drilling
Quarry Drilling
Construction Drilling
Surface Drilling
Bench Drilling
Blast Hole Drilling
Rock Excavation
Infrastructure Drilling

Performance Advantages

Manufactured from high-strength alloy steel with precision forging and heat treatment, the T45-HD712 Shank Adapter delivers superior strength, toughness, and wear resistance. The optimized manufacturing process enables the adapter to withstand repeated impact loads and rotational forces during drilling operations.

The T45 threaded connection ensures reliable engagement with compatible drilling components and supports efficient transmission of impact energy and rotational torque from the rock drill to the drill string.
