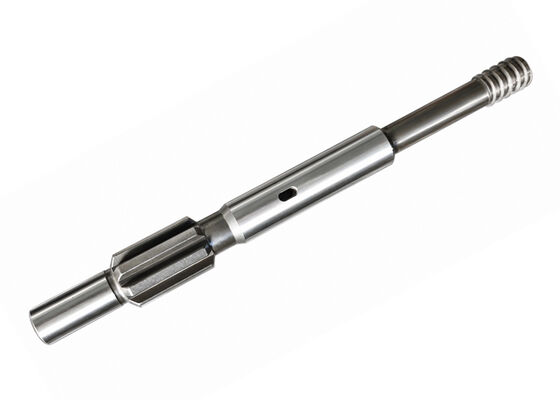

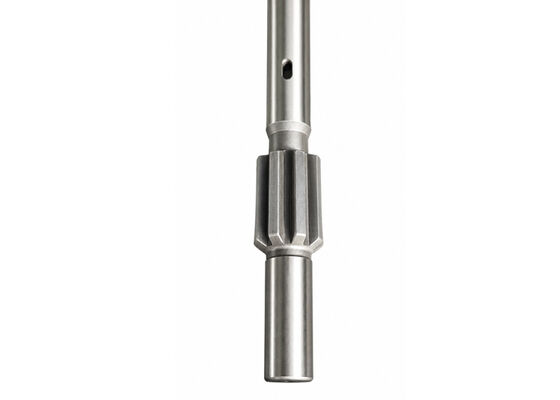

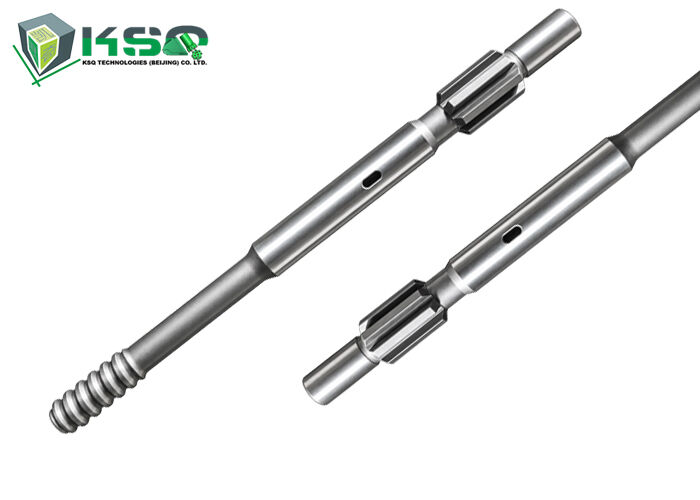

Name: HD609 T38 690mm Shank Adapter Rock Drill Shank Adapter for Top Hammer Mining Drilling Equipment
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: HD609
Price: 165 USD
Availability: InStock

Home Products Rock Drilling Tools

HD609 T38 690mm Shank Adapter Rock Drill Shank Adapter for Top Hammer Mining Drilling Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	HD609

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄165
Delivery Time:	7-14
Supply Ability:	3000

Contact Now

Detailed Product Description

Product Name:	Shank Adapter	Model:	HD609
Material:	Alloy Steel	Application:	Mining And Rock Drilling
Drilling Method:	Top Hammer Drilling	Applicable Industry:	Mining Tunneling Quarrying And Construction
OEM Service:	Available	Quality Inspection:	Dimensional And Thread Inspection
Packaging:	Export Standard Packaging
Highlight:	T38 shank adapter rock drill , 690mm shank adapter mining drilling , HD609 top hammer shank adapter

The HD609 T38 690mm Shank Adapter is a precision-engineered drilling component built for compatible top hammer rock drilling systems. It serves as the critical connection between the rock drill and the drill string, transferring impact energy and rotational torque to the connected drilling tools during rock drilling operations.

With a specified model of HD609, a T38 connection, and an overall length of 690mm, this shank adapter is intended for professional drilling applications where correct equipment matching, reliable connection performance, and dimensional accuracy are essential.

It is suitable for buyers seeking replacement drilling components for mining, tunneling, quarrying, and other rock excavation projects. Before ordering, the complete equipment model and connection dimensions should be checked to ensure compatibility with the intended rock drill and drill rod.

Main Product Features

Model-Specific Design

The HD609 model designation helps buyers identify the required shank adapter configuration. Confirming the original equipment model and technical drawing before purchase helps reduce compatibility issues and supports accurate replacement part selection.

T38 Threaded Connection

The T38 connection specification allows the adapter to be selected for compatible threaded drilling systems. Proper thread matching and dimensional inspection are important for secure assembly, efficient energy transmission, and reliable drilling operation.

690mm Overall Length

The 690mm overall length provides a clear dimensional reference for product selection. Buyers should confirm the measurement method and critical interface dimensions against the original component before placing an order.

Efficient Impact Energy Transmission

The shank adapter transfers impact energy and rotational torque from the rock drill to the connected drill string. Correctly matched components help maintain stable drilling operation and support effective power transmission under suitable operating conditions.

Precision Machining

Precision machining of critical connection surfaces and functional dimensions helps achieve consistent assembly with compatible drilling equipment. Inspection of the connection profile, concentricity, and key dimensions can help ensure product consistency.

Material And Heat Treatment Options

Material selection and heat treatment can be specified according to the required mechanical properties and operating conditions. Appropriate manufacturing controls help support the strength, toughness, wear resistance, and fatigue performance required for demanding drilling environments. Actual material grades, hardness values, and heat treatment specifications can be confirmed according to the manufacturer's technical documentation.

Product Specifications

Product NameShank Adapter
ModelHD609
Thread SpecificationT38
Overall Length690mm
Product CategoryTop Hammer Drilling Component
Main FunctionConnecting the rock drill and drill string
Drilling MethodTop Hammer Drilling
ApplicationMining, Tunneling, Quarrying and Rock Excavation
MaterialAccording to confirmed product specification
Customized RequirementsAvailable upon technical confirmation

Furukawa Shank Adapter Specification Reference

Furukawa HD 90 Shank Adapter
Thread	Diameter (mm)	Length (mm)	Flushing	Weight (kg)	Part Number
R38	40	515	-	4.3	414832528

Furukawa HD 190 Shank Adapter
Thread	Diameter (mm)	Length (mm)	Flushing	Weight (kg)	Part Number
R38	40	500	-	4.5	414832529
T38	40	500	-	4.5	414832530

Furukawa HD 300 Shank Adapter
Thread	Diameter (mm)	Length (mm)	Flushing	Weight (kg)	Part Number
T38	45	654	16	6.0	414832531
T45	45	654	16	6.7	414832532

Furukawa HD 609 Shank Adapter
Thread	Diameter (mm)	Length (mm)	Flushing	Weight (kg)	Part Number
T38	45	690	-	6.3	414832533
T45	45	690	-	6.4	414832534

Furukawa HD 612 RP Shank Adapter
Thread	Diameter (mm)	Length (mm)	Flushing	Weight (kg)	Part Number
T45	51	884	-	11.2	414832535

Furukawa PD200 Shank Adapter
Thread	Diameter (mm)	Length (mm)	Flushing	Weight (kg)	Part Number
T38	45	485	14.3	5.0	414832536
T45	45	485	14.3	5.4	414832537

Application Industries

Mining Operations

Used in compatible top hammer drilling systems for rock drilling, mine development, and underground excavation.

Tunneling Projects

Suitable for drilling operations associated with tunnel excavation and underground infrastructure construction when matched with the correct equipment.

Quarrying And Stone Extraction

Can be used in compatible drilling systems for rock excavation and quarry development.

Construction And Geotechnical Engineering

Applicable to selected rock drilling operations for infrastructure, foundation preparation, and other engineering projects requiring top hammer drilling equipment.

Product Quality And Manufacturing

Reliable shank adapter performance depends on material quality, manufacturing accuracy, connection compatibility, and appropriate heat treatment. Our manufacturing and inspection requirements can be arranged according to the confirmed technical specifications, including:

Inspection of overall length and critical dimensions
Verification of thread profile and connection dimensions
Assessment of machined surfaces and visible manufacturing defects
Material and heat treatment documentation according to the agreed requirements
Product identification and export packaging before shipment

Inspection reports, material documentation, and additional quality requirements can be discussed before order confirmation, subject to availability.

Why Choose Our Shank Adapters

Model and specification confirmation before production
Options for replacement parts and customized requirements
Dimensional inspection according to agreed drawings
Technical support for connection and equipment matching
Packaging suitable for international transportation
Support for bulk orders and long-term supply cooperation

Ordering And Customization

To ensure the correct HD609 T38 690mm shank adapter is supplied, please provide the following information when requesting a quotation:

Rock drill manufacturer and complete equipment model
T38 connection drawing or detailed interface dimensions
Required overall length and other critical measurements
Order quantity and expected delivery schedule
Any specific material, hardness, or inspection requirements

Our team can review the supplied specifications and confirm the available manufacturing options before production.

Contact us for pricing, technical confirmation, lead time, and customized requirements for HD609 T38 690mm shank adapters.

Our team is ready to support your top hammer drilling component sourcing with reliable specification matching and professional service.
