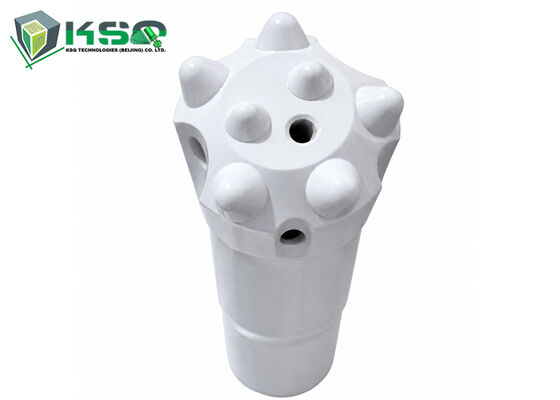

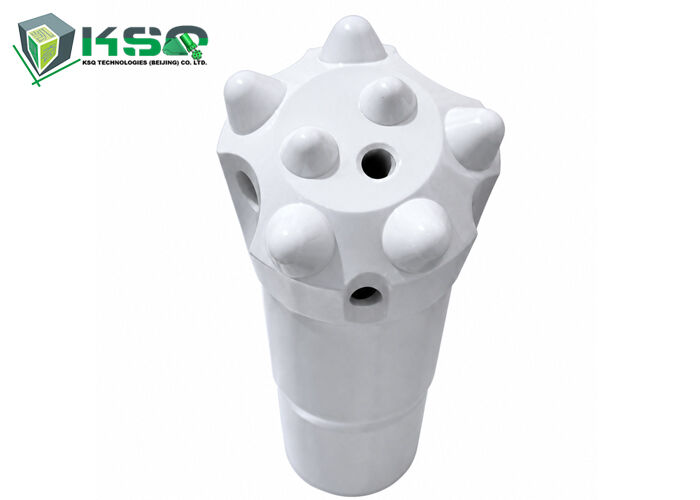

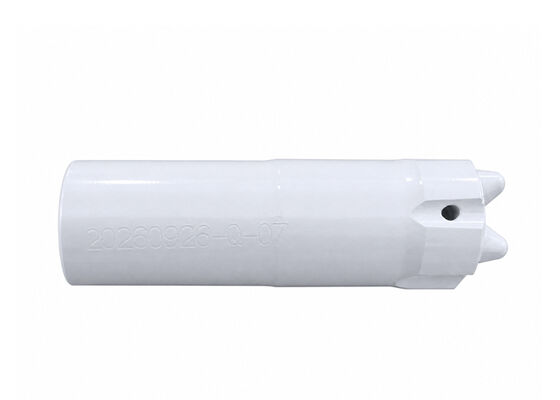

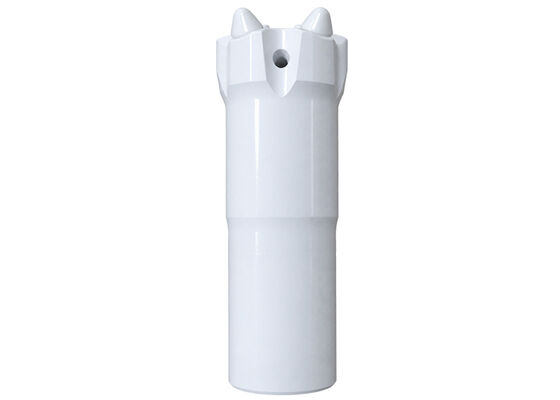

R25 36mm Flat Face Button Bit With 7 Conical Carbide Buttons For Rock Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	R25 36mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄26
Delivery Time:	7-14

Contact Now

Detailed Product Description

Product Name:	R25 Button Bit	Diameter:	36mm
Thread:	R25	Button:	7 Buttons
Face:	Flat Face	Button Shape:	Conical Carbide Buttons
Applications:	Mining, Tunneling, Quarrying	Customization:	Available Upon Request
Highlight:	R25 36mm flat face button bit , 7 conical carbide button bit , rock drilling button bit

The R25 36mm Flat Face Button Bit is engineered for rock drilling in mining, tunneling, quarrying, and underground construction. Its compact 36mm diameter, flat face geometry, and seven conical carbide buttons make it well suited to precision drilling in confined working areas and to applications requiring smaller hole diameters.

The robust steel body and carbide cutting buttons deliver reliable rock penetration, wear resistance, and consistent drilling performance. The R25 threaded connection ensures compatibility with matching R25 drill rods and top hammer drilling equipment.

Key Features of the R25 36mm Button Bit

1. 36mm Compact Drilling Diameter

The 36mm diameter makes this rock drill bit suitable for small-diameter boreholes, precise drilling, and access to confined working areas. It integrates with compatible drilling systems for underground mining, tunneling, and construction projects.

2. Seven Conical Carbide Buttons

Equipped with seven conical carbide buttons, the bit concentrates impact energy on the rock surface to facilitate penetration into suitable rock formations. The carbide buttons provide high hardness and wear resistance, helping maintain cutting performance through repeated drilling operations.

3. Flat Face Design

The flat face configuration provides a practical cutting structure for consistent drilling. When matched with appropriate drilling equipment and operating parameters, the bit supports stable penetration and reliable hole formation across suitable rock conditions.

4. Durable Bit Body

The robust bit body is built to withstand repeated impact loads and abrasive drilling environments. Its construction supports dependable performance in mining and tunneling applications, meeting the demands of continuous field operations.

5. R25 Threaded Connection

The R25 threaded connection is designed for use with compatible R25 drill rods and top hammer drilling equipment. Correct thread matching helps ensure secure assembly, efficient impact transmission, and reliable operation throughout the drilling process.

R25 Thread Button Bit Specifications

R25 thread button bit dimensions, button configuration, flushing holes, weight, and part numbers
Bit Dia. (mm)	Bit Dia. (inch)	Front Buttons	Gauge Buttons	Angle	Front Flushing Hole	Side Flushing Hole	Weight (kg)	Part Number
Spherical
33	1 2/7	2x7	5x7	35°	1	1	0.4	B733-R25-S
35	1 3/8	2x7	5x8	35°	1	1	0.4	B735-R25-S
38	1 1/2	2x7	5x8	30°	1	1	0.5	B738-R25-S
38	1 1/2	2x7	5x9	30°	1	1	0.5	B738-R25-S
41	1 5/8	2x9	4x9	35°	1	2	0.6	B741-R25-S
41	1 5/8	2x8	5x9	35°	1	1	0.6	B741-R25-S
45	1 7/9	2x9	4x11	35°	1	2	0.6	B645-R25-S
45	1 7/9	2x8	5x10	30°	1	2	0.6	B745-R25-S
45	1 7/9	2x8	5x11	30°	1	2	0.6	B745-R25-S
Ballistic
33	1 2/7	2x7	5x7	35°	1	1	0.4	B733-R25-B
35	1 3/8	2x7	5x9	25°	1	1	0.4	B735-R25-B
38	1 1/2	2x7	5x9	40°	1	1	0.5	B738-R25-B
41	1 5/8	2x8	5x9	40°	1	1	0.6	B741-R25-B
45	1 7/9	2x9	5x10	35°	1	2	0.6	B745-R25-B
