3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face for well drilling

3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face for well drilling

  • 3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face for well drilling
  • 3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face for well drilling
  • 3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face for well drilling
3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face for well drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: DTH Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Processing Type: Forging Material: Carbon Steel
Diameter: 90-105mm Usage: Hole Drilling
Advantage: High Performance
High Light:

dth hammer bits

,

dth button bits

3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face





In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



Basic Information



Product

DTH Button Bits

Low Air Pressure CIR80, CIR90

3’’

DHD3.5, M30,

4’’

DHD340, SD4,QL40, M40

5’’

DHD350, SD5,QL50, M50

6’’

DHD360, SD6,QL60, M60

8’’

DHD380, SD8,QL80, M80

Color

Green, Gold, Black or based on customer requirements.

MOQ:

No MOQ required for testing and trial order



Applications



• Underground mining

• Down the hole rock drilling



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



DHD3.5 And M30 High Air Pressure DTH Bit Specification:



Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge kg
DHD3.5 Ballistic button/Convex face
90 3 1/2 4×12,2×12 8×12 2 4.5 4148301219
95 3 3/4 4×12,2×12 8×12 2 4.8 4148301220
100 3 7/8 4×13,2×13 8×13 2 5 4148301221
105 4 1/8 4×14,2×14 8×14 2 5.5 4148301222
DHD3.5 Spherical button/Flat face
90 3 1/2 6×12 8×12 2 4.5 4148301223
95 3 3/4 6×12 8×12 2 4.8 4148301224
100 3 7/8 6×13 8×13 2 5 4148301225
105 4 1/8 6×14 8×14 2 5.5 4148301226
M30 Ballistic button/Convex face
90 3 1/2 4×12,2×12 8×12 2 4.7 4148301227
95 3 3/4 4×12,2×12 8×12 2 4.9 4148301228
100 3 7/8 4×13,2×13 8×13 2 5.3 4148301229
105 4 1/8 4×14,2×14 8×14 2 5.6 4148301230
M30 Spherical button/Flat face
90 3 1/2 6×12 8×12 2 4.7 4148301231
95 3 3/4 6×12 8×12 2 4.9 4148301232
100 3 7/8 6×13 8×13 2 5.3 4148301233
105 4 1/8 6×14 8×14 2 5.6 4148301234


We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.


Keywords



DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,

Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit



Pictures

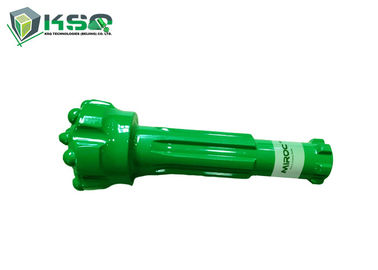

3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face for well drilling 0



3'' High Air Pressure DTH Button Bit Ballistic Convex Face and Spherical Flat Face for well drilling 1
