DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit

DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit

  • DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit
  • DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit
  • DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit
DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: DTH Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: Dth Bits Bit Diameter: 105-445mm
Hammer Size: 3'' 4'' 5'' 6'' 7'' 8'' 10'' 12'' Bit Face: Center Drop/Flat/convex/concave/double Gauge Face Bits
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Application: Quarry/DTH Drilling/Water Well
Color: Customer's Requirement
High Light:

carbide tipped drill bits

,

dth hammer bits

DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



High Penetration Speed Dth Hammer is our company main product. After many years search, we have rich experience in development and manufacture which adopted high-quality raw materials, advanced craft technology and passed through strictly inspection, manufacturing high quality products.

Basic Information

Product

DTH Button Bits

Low Air Pressure CIR80, CIR90

3’’

DHD3.5, M30,

4’’

DHD340, SD4,QL40, M40

5’’

DHD350, SD5,QL50, M50

6’’

DHD360, SD6,QL60, M60

8’’

DHD380, SD8,QL80, M80

Color

Green, Gold, Black or based on customer requirements.

MOQ:

No MOQ required for testing and trial order


Applications
• Underground mining
• Down the hole rock drilling



Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


High Air Pressure DTH Button Bit for M50 Shank Specification:

M50 Ballistic button/Concave face

130

5 1/8

4×14,3×14

8×16

2

13.9

4148301363

133

5 1/4

4×14,3×14

8×16

2

14.3

4148301364

140

5 1/2

4×14,4×14

8×16

2

15

4148301365

146

5 3/4

4×14,4×14

8×16

2

16

4148301366

152

6

4×16,4×16

8×18

2

17.1

4148301367

M50 Spherical button/Concave face

130

5 1/8

4×14,3×14

8×16

2

13.9

4148301368

133

5 1/4

4×14,3×14

8×16

2

14.3

4148301369

140

5 1/2

4×14,4×14

8×16

2

15

4148301370

146

5 3/4

4×14,4×14

8×16

2

16

4148301371

152

6

4×16,4×16

8×18

2

17.1

4148301372

M50 Ballistic button/Convex face

130

5 1/8

3×14,4×14

9×16

3

13.9

4148301373

133

5 1/4

3×14,4×14

9×16

3

14.3

4148301374

140

5 1/2

3×16,4×16

9×16

3

15

4148301375

146

5 3/4

3×16,4×16

9×16

3

16

4148301376

152

6

3×16,5×16

9×18

3

17.1

4148301377

M50 Spherical button/Flat face

130

5 1/8

7×14

8×16

2

13.9

4148301378

133

5 1/4

7×14

8×16

2

14.3

4148301379

140

5 1/2

8×14

9×16

3

15

4148301380

146

5 3/4

8×14

9×16

3

16

4148301381

152

6

8×16

9×18

3

17.1

4148301382


We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
Keywords

DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit


Pictures

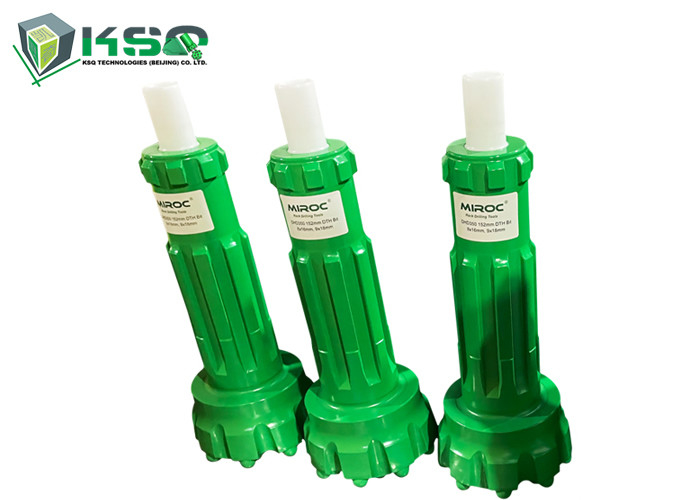

DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit 0

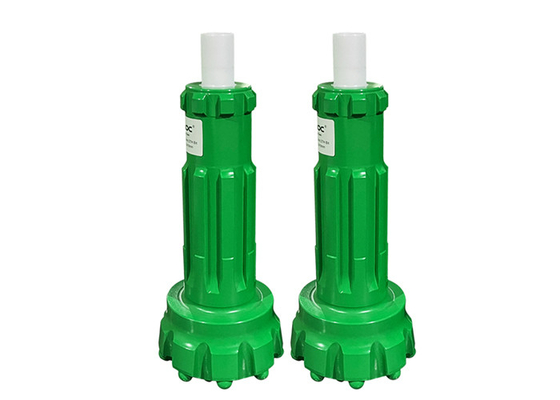

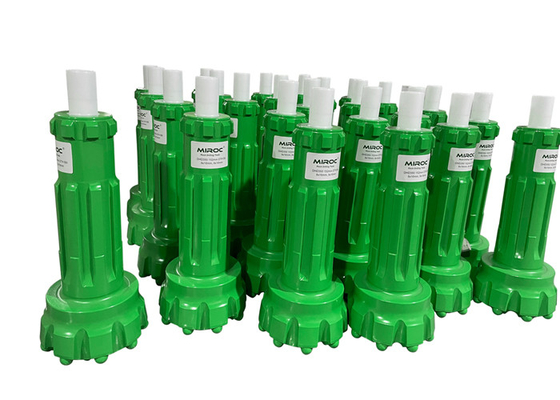

DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit 1DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit 2DHD350 Flat Face Down The Hole Drill Middle and High Pressure DTH Hammer Bit 3
