1 cubic meter bucket volume ERL-1 small tunnel available electric load haul dumper

1 cubic meter bucket volume ERL-1 small tunnel available electric load haul dumper

  • 1 cubic meter bucket volume ERL-1 small tunnel available electric load haul dumper
  • 1 cubic meter bucket volume ERL-1 small tunnel available electric load haul dumper
1 cubic meter bucket volume ERL-1 small tunnel available electric load haul dumper
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: CE, ISO
Model Number: 1 CBM Load-Haul-Dump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Load-Haul-Dump Machine
Price: negotiation
Packaging Details: Nude Package or Based on Customer's Requirements
Delivery Time: 1-3 Months
Payment Terms: T/T or L/C
Supply Ability: 30 Units per month
Contact Now
Detailed Product Description
Model: Electric Load Haul Dumper Bucket Capacity: 1 M3
Condition: New Type: Electric Load Haul Dumper
Warranty: 1 Year,one Year Or 2000 Hours Application: Small Size Underground Tunnel
High Light:

underground lhd machines

,

lhd load haul dump

1 cubic meter bucket volume ERL-1 small tunnel available electric load haul dumper





ERL-1 Electric Loader Advantage



1. Use motor as power source, no pollution, low energy consumption.

2. Double design of parking brake and emergency braking, good braking effect and high safety factor.

3. The use of imported Slovak variable displacement pump and variable-speed motor drives the gearbox with continuously variable transmission, which has high efficiency and low energy consumption.

4. The front and rear racks are hinged at the center and the rear axle swings. The performance is reliable, the driving is stable and the failure rate is low.

5. The working device uses hydraulic pilot control, which reduces the user's labor intensity.

6. Full hydraulic power steering system, light and flexible operation.

7. Full-hydraulic, adjustable cable retractable control system, which can freely adjust the cable tension and extend the cable life.

8. Independent heat dissipation system, oil pressure detection alarm device, allowing users to easily maintain and ease of use.


Specification



ERL-1 Electric Load Haul Dumper Machine Main Dimensions

Capacity of the Bucket

1cubic meters

Rated Loading Capacity

2.0t

Max. Unloading Height

1050mm

Max. Departure Angle

15°

Max. Steering Angle

38°

Min. Unloading Distance

800mm

Max. Lifting Height

3250mm

Min. Turning Radius



≤4260mm( Outside); 2540mm (Inside)

Size

6170mmx1300mmx2000mm

Motor

Y225M-4(IP44) 45KW

Cable length

95m(100mm)

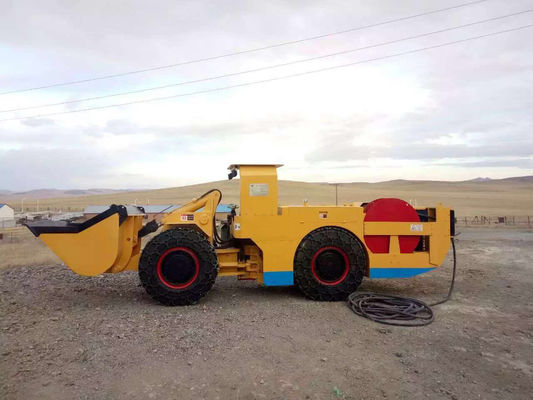

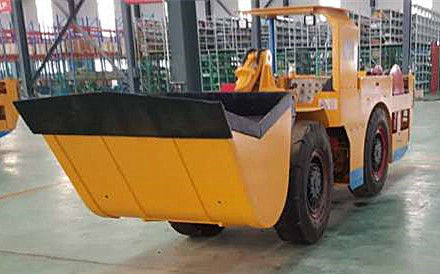

Machine Photos



1 cubic meter bucket volume ERL-1 small tunnel available electric load haul dumper 0
