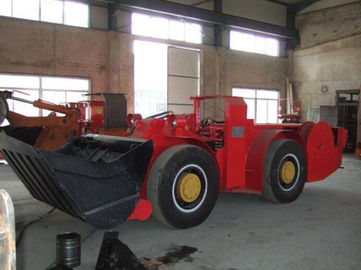

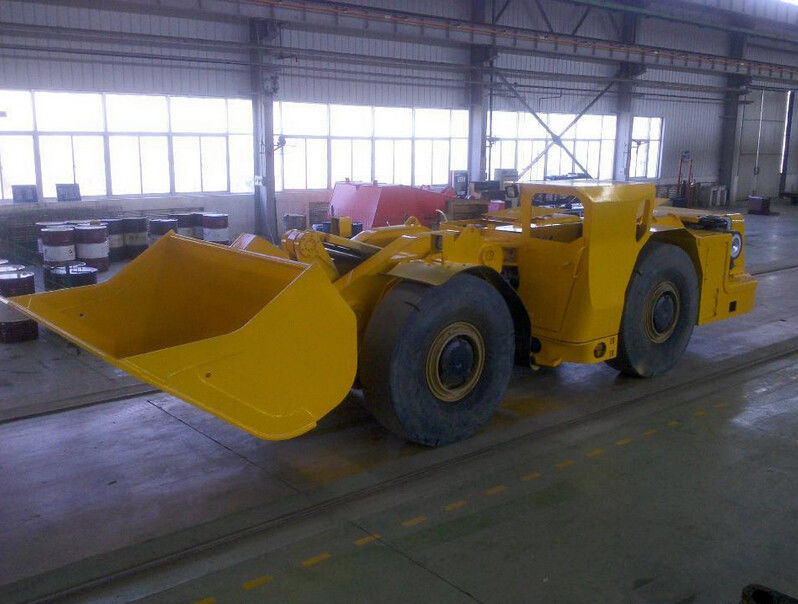

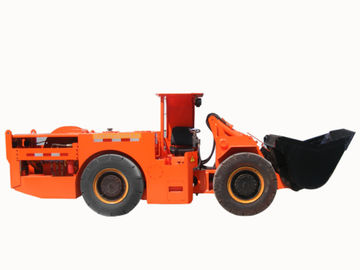

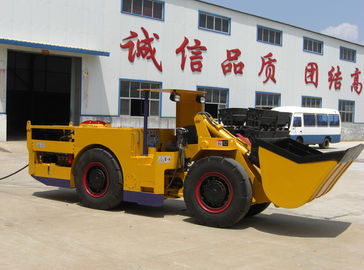

2CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity

2CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity

2CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity
2CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity
2CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: CE / ISO
Model Number: RL-2 Load Haul Dump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Based on requirements
Delivery Time: 1-3 Months
Payment Terms: T/T or L/C
Supply Ability: 5 Units per month
Contact Now
Detailed Product Description
Main Dimensions: 6875*1770*1950mm(L*W*H) Volume Capacity: 2 Cubic Meter
Tramming Capacity: 4000kg Engine: DEUTZ F6L912W Diesel Engine
Torque Converter: DANA C272 Transmission: DANA RT20000
Axles: MERITOR CY-2J Tires: 12.00-24.00 L5-S
High Light:

underground lhd machines

,

load haul dump truck

2CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity



The trusted workhorse of miners and tunneling professionals, the RL-2 Load-Haul-Dump
Machine is ideal for small to medium scale rock excavation operations. The RL-2 maintains
the simple yet very robust design tenets of what a mining equipment should be - it has a
small footprint and turning radius suitable for small envelope sizes, high proven reliability,
and straight-forward mechanical components that are easy to maintain.

Color: Based on Customer requirements

Type:  RL-4 Load-Haul-Dump Machine



Applications

Underground Mining

Hydropower Tunneling

Roadway/Railway Tunneling


Competitive Advantage

Major components from industry respected suppliers

Simple yet very robust design

Very competitive pricing compared to its counterparts coming from well-known brands

Competitive delivery



Specification

 Load-Haul-Dump Machine
Type

Main

Dimensions

(L*W*H)

Volume

Capacity

Tramming

Capacity


Engine Axles  Tires
RL-1 6000*1330*
2037mm
1m3 2000 kg

DEUTZ BF6L914

diesel engine

XUZHOU-JINHE

10.00-20.00

L5-S

RL-2 6875*1770*
1950 mm
2m3 4000 kg

DEUTZ F6L912W

diesel engine

MERITOR CY-2J

12.00-24.00

L5-S

RL-3 8868*2112*
2275mm
3m3 6000 kg

DEUTZ BF6L914C

diesel engine


DANA 16D

17.50-25.00

L5-S

RL-4 9690*2550*
2395mm
4m3 8000 kg CUMMINS QSL9C250   diesel engine KESSLER D91

18.00-25.00

L5-S



2CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity 02CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity 1



 Low Profile Dump Truck
Type

Main

Dimensions

(L*W*H)

Volume

Capacity

Tramming

Capacity

Engine

Torque

Converter

Transmission Axles
RT-12 7956*1804
*2150mm
6m3 12000 kg

DEUTZ BF6L914

diesel engine

DANA C273

DANA

R24000

MERITOR

CY-2J

RT-15 7956*1804*
2150mm
7.5m3 15000 kg

DEUTZ BF6L914C

diesel engine


DANA C273

DANA

R32000

DANA

16D

RT-20 9046*2280*
2325mm
10m3 20000 kg DEUTZ BF6M1013FC diesel engine DANA CL5000

DANA

R36000

DANA

19D

MT30D 10150*2700*
2600mm
16m3 33000 kg

CUMMINS QSX15

diesel engine

DANA CL8000

DANA

6000

KESSLER

D91

2CBM Underground Equipment RL-2 Load Haul Dump Machine 4000kg Tramming Capacity 2


Company Profile:

ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
ROXMECH® Rock Excavation and Service/Support Equipment include:



RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series
MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer
