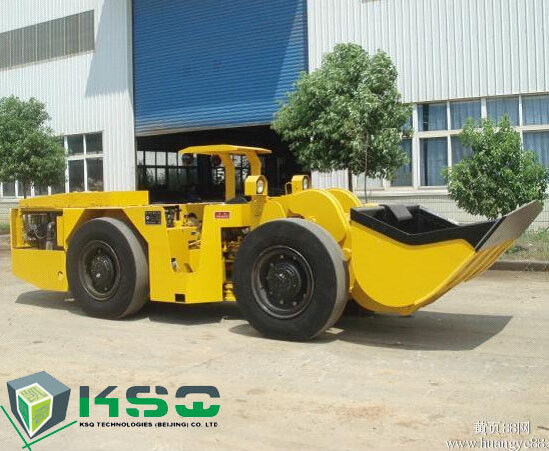

RL-2 Mine Diesel Underground Hauling Scraper Load Haul Dump Truck

RL-2 Mine Diesel Underground Hauling Scraper Load Haul Dump Truck

  • RL-2 Mine Diesel Underground Hauling Scraper Load Haul Dump Truck
  • RL-2 Mine Diesel Underground Hauling Scraper Load Haul Dump Truck
RL-2 Mine Diesel Underground Hauling Scraper Load Haul Dump Truck
Product Details:
Place of Origin: AnHui,China
Brand Name: MIROC
Model Number: RL-2 Load Haul Dump
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Nude Packed or Based on Customers
Delivery Time: 1-3 months after receiving payment and order confirmation
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 40 Set/Sets per Month
Contact Now
Detailed Product Description
Type: RL-2 Load Haul Dump Color: Yellow
Volume Capacity: 2m3, 3m3 Tramming Capacity: 4000KG,6000KG
After-sales Service Provided: Engineers Available To Service Machinery Overseas Engine: DEUTZ F6L912W Air Cooled Diesel Engine
High Light:

underground lhd machines

,

lhd load haul dump



RL-2 Mine Diesel Underground Hauling Scraper Load Haul Dump Truck





The trusted workhorse of miners and tunneling professionals, the RL-2 Load-Haul-Dump Machine is ideal for small to medium scale rock excavation operations. The RL-2 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.



RL-2 Load-Haul-Dump Machine Main Dimensions



Main Dimensions

Length

6875mm(haul position)

Width

1770mm

Height

1950mm

Turning Radius

Inside

2600mm

Outside

4886mm

Volume Capacity



2m3

Tramming Capacity



4000kg

Engine



DEUTZ F6L912W air cooled diesel engine

Torque Converter



DANA C272

Transmission



DANA RT20000

Axles



MERITOR CY-2J

Tires



12.00-24.00 L5-S



RL-2 Mine Diesel Underground Hauling Scraper Load Haul Dump Truck 0

Weights of Load Haul Dump



Deadweight: 11000 kg

Payload: 4000 kg

Front-axle load, unladen: 5625 kg

Rear-axle load, unladen: 6875 kg

Fully loaded:  14800 kg



Bucket of Load Haul Dump



Type: Heavy duty rock bucket

Maximum lift height: 4000 mm

Maximum dumping height: 1800 mm

Required dumping height clearance: 950 mm

Dumping angle: 40 degree



Applications of Load Haul Dump



Underground Mining

Hydropower Tunneling

Roadway/Railway Tunneling



Our Services



ROXMECH® Rock Excavation and Service/Support Equipment include:

RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series

MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer



Company Information


ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
