| Place of Origin: | Shan Dong China(Mainland) |
| Brand Name: | MIROC |
| Certification: | API / GB |
| Model Number: | Thread button bits |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | USD30-110 pieces |
| Packaging Details: | Carton / Wooden Box or Based on Customers |
| Delivery Time: | 1-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9000 pieces per month |
| Raw Material: | 45CrNiMoV | Color: | Green Or Based On Customers |
|---|---|---|---|
| Process: | Heated Treatment | Advantage: | Good Quality |
| Use: | Quarrying / Tunneling | Type: | T38 / T51 Thread Drill Bit |
| High Light: | industrial drill bits,hardened steel drill bits |
||

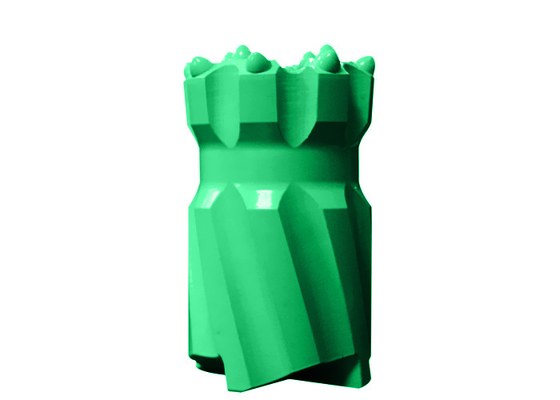

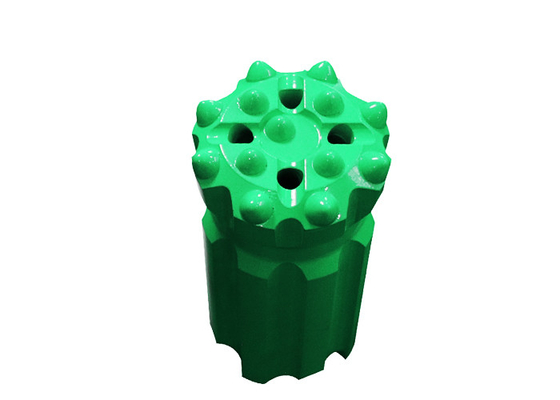

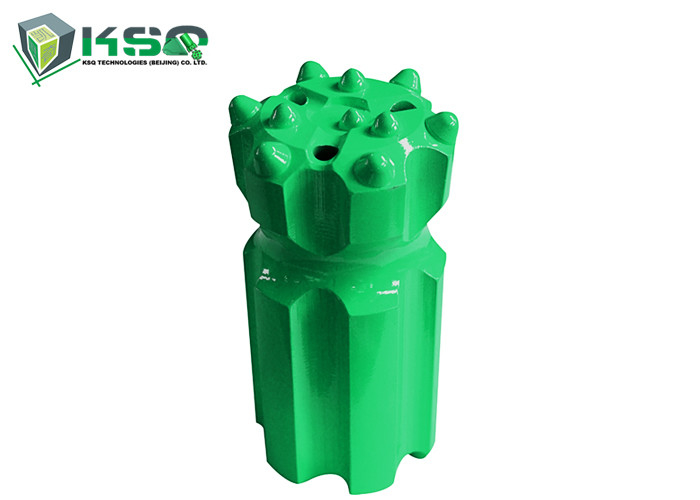

Mining Power Tools 64mm T38 T51 Industrial Conical Parabolic Button Drill Bits
Specifications
our dominant drill bits are chisel bits, cross bits, buttons bits, DTH bits
We are a professional company which is specialized in making and researching on drilling equipments as well, and our dominant products are chisel bits, cross bits, buttons bits, DTH bits with high, medium and low air pressure, symmetric drilling tools, eccentric drilling tools, standardized API system casings, bit shanks and casing tubes which are fit for hydraulic drilling equipments.
Mainly Products
Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51
Drill Rod
Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.
Thread Rod---R25,R28,R32,R38,T38,T45,T51.
Integral Drill Rod---H19/H22, Diameter---20mm - 42mm
Specification
| R28 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 37 | 2×7 | 5×9 | 1 | 1 | 0.5 |
| 2 | 45 | 2×9 | 5×10 | 1 | 2 | 0.9 |
| 3 | 48 | 2×9 | 5×11 | 1 | 2 | 1 |
| T38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 2.6 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| T45 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 70 | 3×11, 1×19 | 6×11 | 3 | - | 2.2 |
| 2 | 76 | 3×11, 1×11 | 6×13 | 3 | - | 2.4 |
| 3 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 4.1 |
| 4 | 102 | 3×13, 2×13 | 6×14 | 3 | 1 | 4.5 |
| T51 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 89 | 3x11, 2x11 | 6x13 | 4 | - | 4.9 |
| 2 | 102 | 3x13, 2x13 | 6x14 | 3 | 1 | 5.2 |
| 3 | 115 | 6x14 | 8x14 | 2 | - | 6.8 |
| 4 | 127 | 4x16, 2x13 | 8x16 | 4 | - | 7.5 |
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
