| Place of Origin: | China |
| Brand Name: | ROXMECH |
| Certification: | CE Certificate |
| Model Number: | RT-12 Low Profile Dump Truck |
| Minimum Order Quantity: | 1 Set Low Profile Dump Truck |
|---|---|
| Price: | negotiation |
| Packaging Details: | Nude Package or Based on Customer's Requirements |
| Delivery Time: | 1-3 Months |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 3 Units per month |
| Engine: | DEUTZ | Hydraulic Torque Converter: | DANA |
|---|---|---|---|
| Power Transmission: | DANA | Axles: | Meritor,Xuzhou |
| Color: | Yellow | ||
| High Light: | Underground Dump Truck,mining dump trucks |
||
RT-12 Low Profile Dump Truck With DEUTZ Air Cooled Diesel Engine
The RT-12 Low Profile Dump Truck is ideal for medium scale rock excavation operations that require high haulage productivity. Works perfecly with the RL-2 LHD Machine. The RT-12 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.
Main Components
1. Engine:
Manufacturer DEUTZ
Model BF6M1013EC
Power 165KW / 2300 rpm
2. Hydraulic torque converter
Manufacturer DANA
Model C270
Type Single stage two components with hydraulic pump drive
3. Power transmission
Manufacturer DANA
Model R32000
Type Power shift
4. Axles
Manufacturer Meritor,Xuzhou
Model QY-150
5. Brakes system
Include Working brake, Parking brake
Design Fully closed,Spring applied, Hydraulic released multidisc wet brakes(SAHR Brake)
6. Hydraulic system
Include Working system, Steering system, Braking system, Filling system
Design T he main components are imported from abroad, Parker, Micro, Williams
Technical specification
Dump box capacity 6.0 m3
Max. Payload 12,000 kg
Length 7560mm
Width 2047mm
Height(including cabin) 2410mm
Ground clearance 400mm
Deadweight 14,500KG
Max. Traction 160KN
Max. climbing ability 25%
Max. unloading height 4110mm
Box lifting time 11S
Box dumping time 10S
Tire 14.00－24
Tramming speed 1st Gear 5 km/h
2nd Gear 11 km/h
3rd Gear 20 km/h
Steering Central articulated, hydraulic power steering, driven by two double-acting cylinders
Steering angle 2×40°
Inner turn radius 4860 ± 250 mm
Outer turn radius 7650 ± 250 mm
Hinged point lateral swing angle ±10°
Specification
| RT- 12 Low Profile Dump Truck Main Dimensions | |
| Length | 7956mm |
| Width1804 | 1804mm |
| Height | 2150mm |
| Turning Radius | 3600mm(Inside) |
| 6057mm(Outside) | |
| Volume Capacity | 6m³ |
| Tramming Capacity | 12000kg |
| Engine | DEUTZ BF6L914 Turbocharged air cooleddiesel engine |
| Torque Converter | DANA C273 |
| Transmission | DANA R24000 |
| Axles | MERITOR CY-2J |
| Tires | 14.00-24.00 E3 |
Applications
• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments
Competitive Advantage
• Major components from industry respected suppliers
• Simple yet very robust design
• Very competitive pricing compared to its counterparts coming from well-known brands
• Competitive delivery
• Engineers available to service machinery overseas

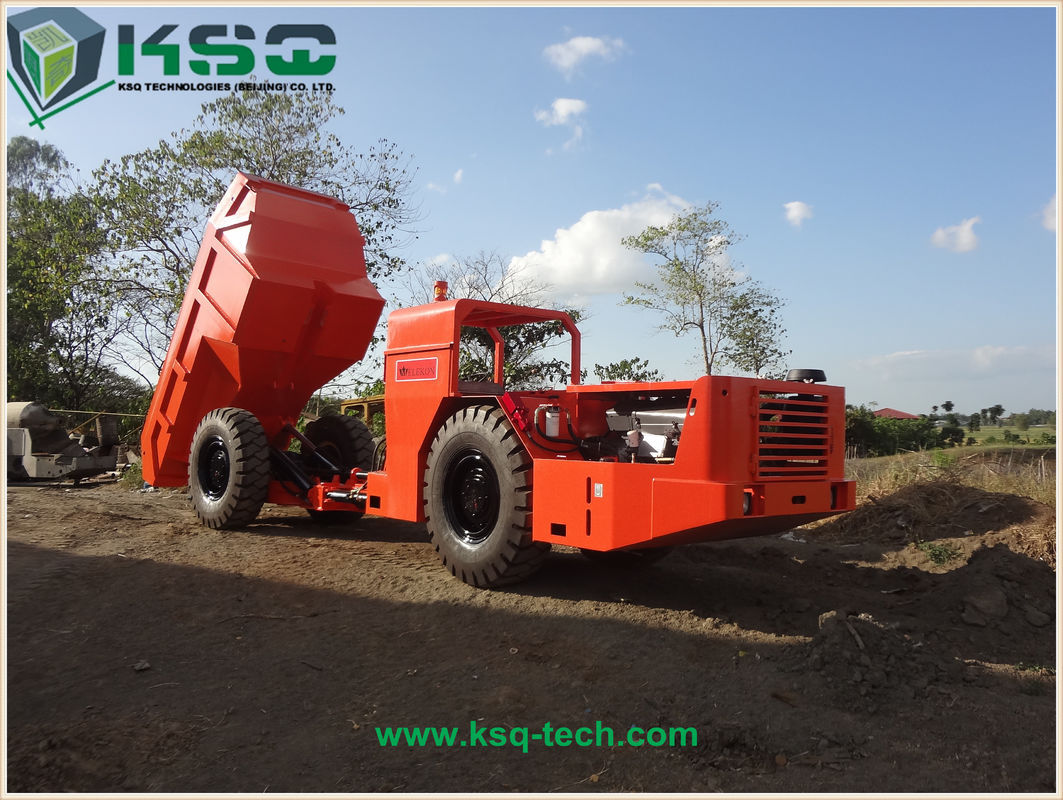

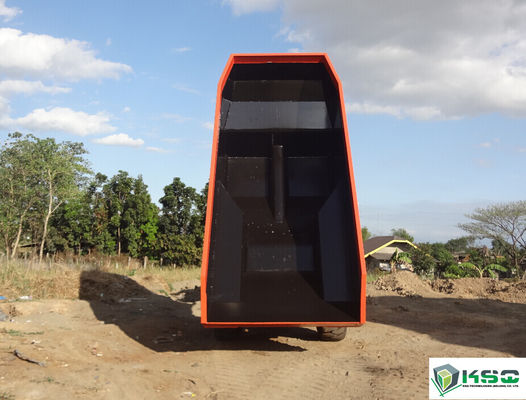

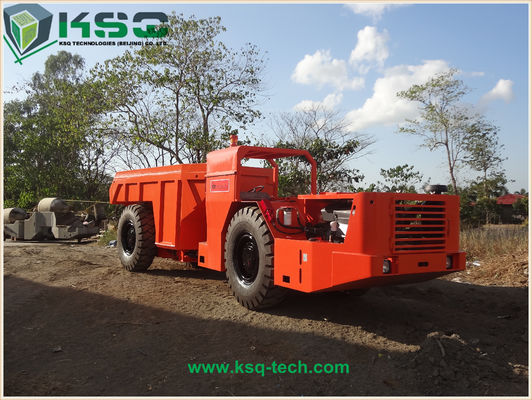

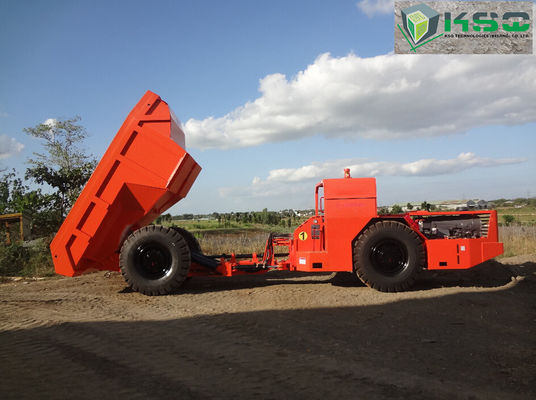

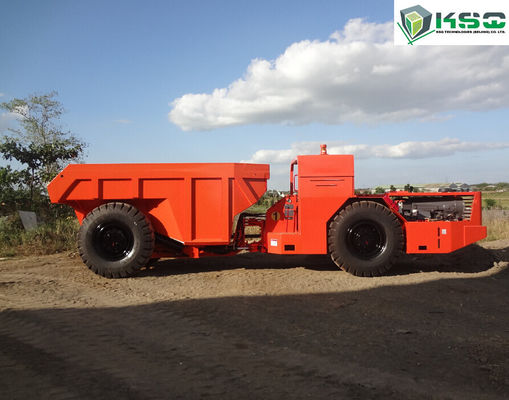

Machine Photos
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
