| Place of Origin: | Shangdong,China |
| Brand Name: | MIROC |
| Certification: | API |
| Model Number: | Reaming Drill Bit |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10-22days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Material: | Tungsten Carbide And Alloy Steel Bar | Type: | Reaming Drill Bit |
|---|---|---|---|
| Color: | Green,blue,golden,orange Etc | Use: | Tunneling, Mining,Quarrying,Construction |
| Processing Type: | Forging | Thread: | R25,R28,R32,R38,T38,T45,T51,ST58,ST68 |
| High Light: | tungsten drill bits,cnc drill bits |
||

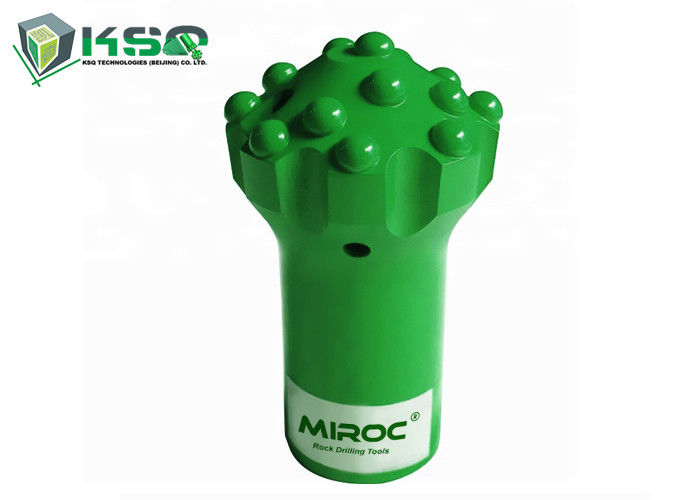

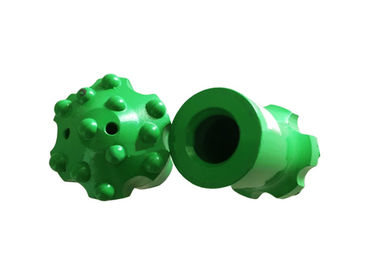

Mining Rock Drill Bits Threaded Tungsten Carbide Button Bit With High technology Center Top Hammer Bit
Reaming bits is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.
| Product Name: | different rock hardness drilling button bit |
| Description: |
For different rock hardness mining,tunneling, quarrying button bit Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment. |
| Material: | Alloy steel bar and tungsten carbide bit |
| MOQ: | trial order 1-5pcs |
| Body Type | Normal type and retract type |
| Thread type | R25,R28,R32,R38,T38,T45,T51,ST58,ST68 |
| Diameter | 32mm-152mm |
| Button bit shape | Spherical and Ballistic |
| Face shape | Flat shape ,Drop-center shape, |
Button bit and Insert types
Spherical Button Characteristics
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics
1. Fast Penetration
2.B est suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions
More Products:
|
Button Bit ( R25) |
D | Flushing hole (mm) |
Buttons (mm) |
Angle | Class | |||
| mm | inch | Gauge | Front | Gauge | Front | |||
|
33 35 38 41
|
1 5/16” 1 3/8” 1 1/2” 1 5/8”
|
1×5 1×5 2×5 2×5
|
1×5 1×5 1×5 1×5
|
5×7 5×8 5×9 5×9
|
2×7 2×7 2×7 2×8
|
35° 30° 30° 30°
|
H H H H
|
|
|
33 41 |
1 5/16” 1 5/8” |
2×4.5 2×5 |
2×4.5 2×5.5 |
6×7 6×9 |
2×7 2×8 |
30° 30° |
S S |
|
| 38 | 1 1/2” | 2×5 | 2×5 | 6×8 | 2×8 | 30° | S | |
