| Place of Origin: | Shangdong,China |
| Brand Name: | MIROC |
| Certification: | API IOS |
| Model Number: | Reaming Drill Bit |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10-22days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Material: | 45CrNiMoV | Type: | Dome Bit For Reaming |
|---|---|---|---|
| Use: | Tunneling, Mining,Quarrying,Construction | Processing Type: | Forging |
| Thread: | R32, R38, T38, T45, T51 | Diameter: | 64-152MM |
| Button Bit Shape: | Spherical, Ballistic,Conical | Color: | Green / Black Or Depends On Customers |
| High Light: | tungsten drill bits,cnc drill bits |
||

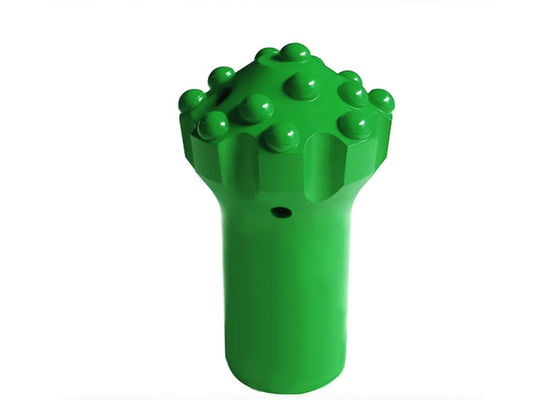

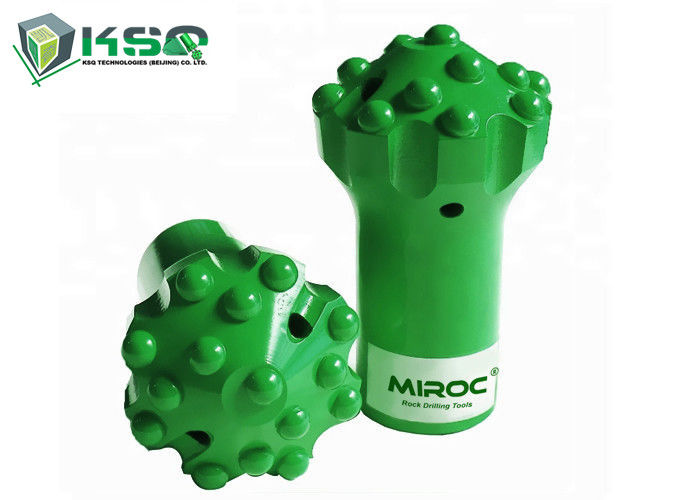

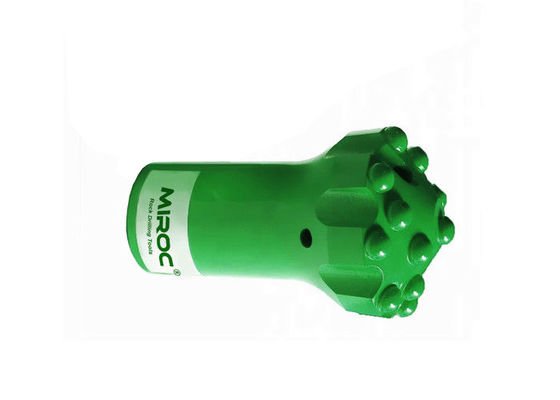

T45 Reamer Drill Bit Tungsten Carbide Buttons 102MM Rock Button Bit For Hard Rock Drill
Description
1) Thread connection: R28, R32, R38, T38, T45
2) Steel material: 45CrNiMoV.
3) Suitable carbide tips.
4) Bits diameter: 30-89mm.
Specification:
| T38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| R38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×11 | 6×12 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 4 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
| R32 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 2 | 43 | 2×9 | 5×10 | 1 | 1 | 0.7 |
| 3 | 45 | 2×9 | 5×11 | 1 | 1 | 0.8 |
| 4 | 48 | 2×9 | 5×11 | 1 | 1 | 0.9 |
| 5 | 51 | 2×10 | 5×11 | 1 | 1 | 1 |
| 6 | 57 | 3×9 | 6×11 | 3 | - | 1.3 |
| 7 | 64 | 3×11 | 6×12 | 3 | - | 1.6 |
| 8 | 70 | 4×11 | 8×11 | 2 | - | 2.6 |
| 9 | 76 | 4×11 | 8×11 | 2 | - | 2.8 |
| R28 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 37 | 2×7 | 5×9 | 1 | 1 | 0.5 |
| 2 | 38 | 2×7 | 5×9 | 1 | 1 | 0.6 |
| 3 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 4 | 43 | 2×9 | 5×9 | 1 | 2 | 0.8 |
| 5 | 45 | 2×9 | 5×10 | 1 | 2 | 0.9 |
| 6 | 48 | 2×9 | 5×11 | 1 | 2 | 1 |
1. Independently researched and developed alloys with high strength and good abrasion resistance;
2. Independently researched and developed world-class production equipment, advanced production technology,ensuring product quality stability
3. Wide range of products, matching different working conditions
Usage:
Drilling in ore field,
Suitable even for harsh enviroment works;
Selling Point:
Quality certified;
Competitive prices;
Brand Name effect;
Nice after-sales services;
