| Name: | DTH Hammer | Series: | CIR, BR, COP,DHD,MISSION,QL,SD,NUMA |
|---|---|---|---|
| Size: | 3'', 3.5'', 4'', 5'', 6'' ,8'', 10'', 12'' Etc. | Type: | With Foot Valve, No Foot Valve |
| Use: | Tunneling, Mining,Quarrying,Water Well | Color: | Green,Black ,Orange ,Blue,Golden |
| Highlight: | down the hole drilling tools,down the hole hammer |
||

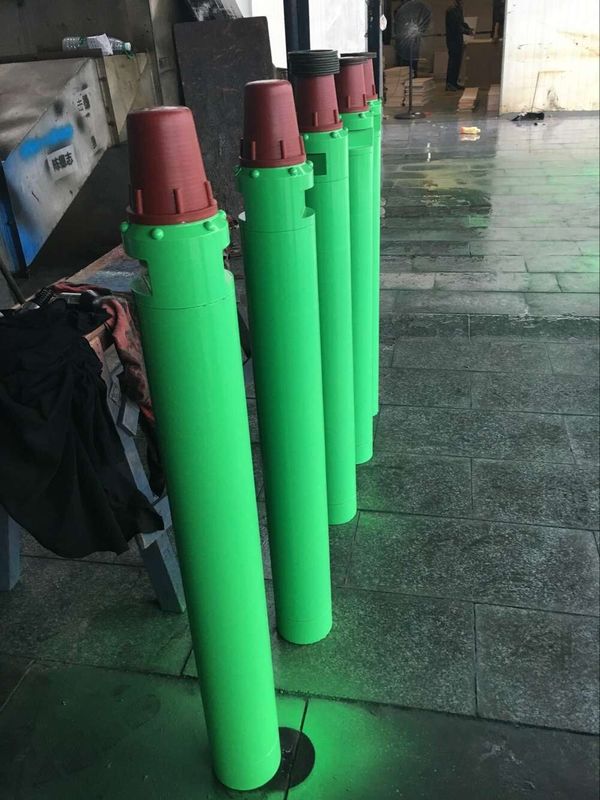

Green KSQ Ql50 DTH Hammers Downhole Drilling Tools For Mining
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
Basic Information
| Items | Replacement Parts |
| 1 | Top sub |
| 2 | O-ring of top sub |
| 3 | Breakout Ring |
| 4 | Check Valve |
| 5 | Spring |
| 6 | Compression Buffer |
| 7 | Air Distributor |
| 8 | Internal cylinder |
| 9 | Piston |
| 10 | External cylinder |
| 11 | Guide sleeve |
| 12 | O-ring of stop ring |
| 13 | Stop ring |
| 14 | Breakout ring |
| 15 | Drive chunk |
| 16 | Drill bit |
| Drilling Diameter(mm) | Hammer Length(mm) | External Diameter(mm) | Weight(kg) | ||||
| φ135-φ155 | 1156(without bit) | 125 | 73(without bit) | ||||
| Working Pressure(Mpa) | Air Consumption(m³/min) | ||||||
| 1.3-2.3 | 1.0Mpa: 9m³/min | 1.8Mpa: 15m³/min | 2.4Mpa: 23m³/min | ||||
| Impact rate at 17 bar | Connection Rod Thread | Recommended Rotation Speed | Bit Shank | ||||
| 25HZ |
API 3 1/2'' Reg API 2 7/8'' Reg |
25-40r/min. |
QL50 (with foot valve) |
||||
Applications
• Underground mining
• Down the hole rock drilling
Competitive Advantage
• Valveless air distribution, more reliable.
• Simple design of the piston. Long life span.
• More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.
• Fewer internal parts, simple structure, less failure and easier to maintain.
• Easy to disassembled because the top sub, the drive chuck and the external cylinder are connected by multiple steps thread.
Photos
KSQ Related Rock Drilling Tools:
(1) Integral Drill Rod–Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, coupling sleeve of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit.
Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
