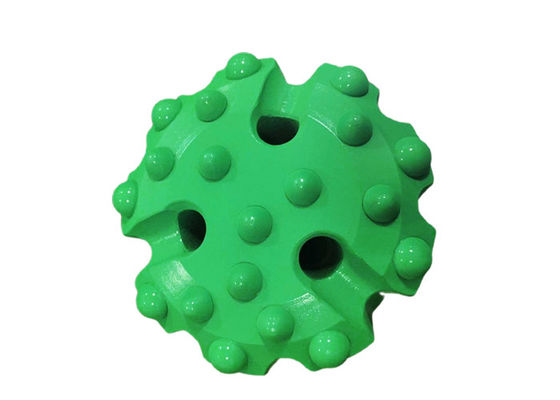

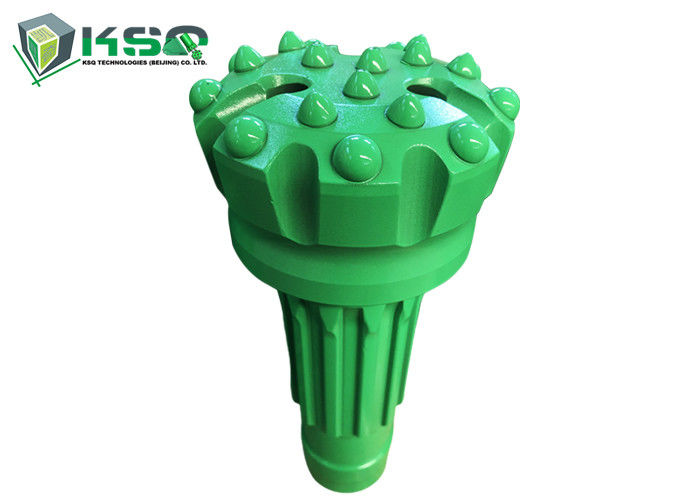

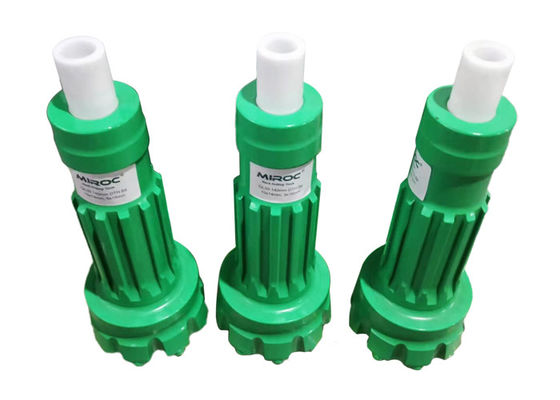

Forging Tungsten Carbide DTH Tools RC Hammers And Bits RE547 Series

Forging Tungsten Carbide DTH Tools RC Hammers And Bits RE547 Series

  • Forging Tungsten Carbide DTH Tools RC Hammers And Bits RE547 Series
  • Forging Tungsten Carbide DTH Tools RC Hammers And Bits RE547 Series
  • Forging Tungsten Carbide DTH Tools RC Hammers And Bits RE547 Series
Forging Tungsten Carbide DTH Tools RC Hammers And Bits RE547 Series
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: ISO9001:2000
Model Number: RC Bits
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-22days after receiving payment and order confirmation
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Type: RC Bits Material: Tungsten Carbide
Series: RE547 Processing Type: Forging
Bit Dia.: 143MM Application: Used For Deep Exploration Drilling And Ore Grade Control
High Light:

carbide tipped drill bits

,

dth hammer bits



Forging Tungsten Carbide DTH Tools RC Hammers And Bits RE547 Series



In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



Specification of Reverse Circulation Bits

Drill Bit Bit Dia.              (mm) NO.Air Holes Gauge Buttons Front Buttons Weight(Kg)
MIC 133 2 8×φ16 8×φ16 17.5
140 2 8×φ16 8×φ14 18
146 2 8×φ18 8×φ14 20
PR5 133 2 8×φ16 8×φ14 12.5
140 2 8×φ16 8×φ14 13
146 2 8×φ18 8×φ14 13.5
PR4 115 2 8×φ16 8×φ13 14.4
127 2 8×φ16 8×φ14 15
133 2 8×φ16 8×φ14 15.5


Forging Tungsten Carbide DTH Tools RC Hammers And Bits RE547 Series 0

Characteristics of Reverse Circulation Bits:

1.Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.



2. The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.



3.The  collection  tube  adopts  an  integrative  design  and  can  be  replaced  without  disassembling  the  hammer.  With  carburizing treatment, it has good abrasive resistance.



4.Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.



5. In difficult conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.
