Underground Low Profile Dump Truck Reliability Articulated Dump Truck

Underground Low Profile Dump Truck Reliability Articulated Dump Truck

  • Underground Low Profile Dump Truck Reliability Articulated Dump Truck
  • Underground Low Profile Dump Truck Reliability Articulated Dump Truck
Underground Low Profile Dump Truck Reliability Articulated Dump Truck
Product Details:
Place of Origin: AnHui,China
Brand Name: MIROC
Certification: CE
Model Number: Underground Mining Dump Truck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Nude Packed or Based on Customers
Delivery Time: 30-60 Days after receiving payment and order confirmation
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 40 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Underground Mining Dump Truck Color: Yellow,Orange
Volume Capacity: 6m3,7.5m3 Tramming Capacity: 12000KG,15000KG
After-sales Service Provided: Engineers Available To Service Machinery Overseas Engine: DEUTZ BF6L914 Turbocharged Air Cooled Diesel Engine
High Light:

heavy duty Dump Truck

,

Underground Dump Truck

Underground Low Profile Dump Truck Reliability Articulated Dump Truck

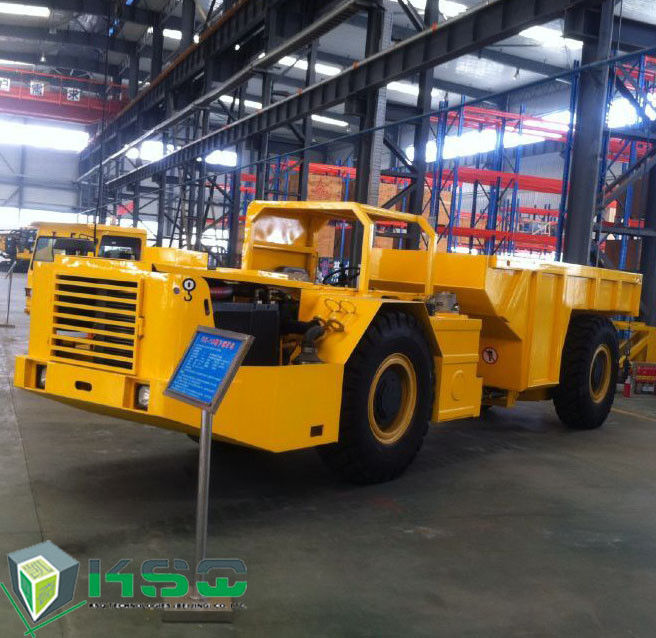

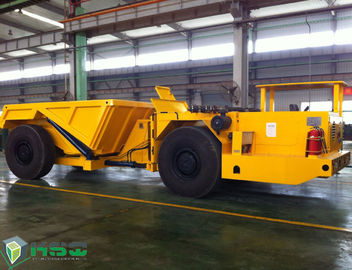

The RT-12 Low Profile Dump Truck is ideal for medium scale rock excavation operations that
require high haulage productivity.  Works perfectly with the RL-2 LHD Machine. The RT-12
maintains the simple yet very robust design tenets of what a mining equipment should be
- it has a small footprint and turning radius suitable for small envelope sizes, high proven
reliability, and straight-forward mechanical components that are easy to maintain.

Main Dimensions     Length 7956mm
    Width 1804mm
    Height 2150mm
Turning Radius      Inside 3600mm
   Outside 6057mm
Volume Capacity   6m3
Tramming Capacity   12000kg
Engine   DEUTZ BF6L914 Turbocharged air cooled diesel engine
Torque Converter   DANA C273
Transmission   DANA R24000
Axles   MERITOR CY-2J
Tires   14.00-24.00 E3

Underground Low Profile Dump Truck Reliability Articulated Dump Truck 0

Applications of Low Profile Dump Truck

Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling



Specification of Low Profile Dump Truck

Low Profile Dump Truck
Type Main Dimensions           (L*W*H) Volume Capacity Tramming Capacity Engine Torque   Converter Transmission Axles
RT-12

7956*18

04 *2150mm

6m3 12000 kg DEUTZ BF6L914             diesel engine DANA C273 DANA R24000 MERITOR             CY-2J
RT-15

7956*18

04*2150mm

7.5m3 15000 kg DEUTZ BF6L914C           diesel engine DANA C273 DANA R32000 DANA                   16D
RT-20

9046*22

80*2325mm

10m3 20000 kg DEUTZ BF6M1013FC diesel engine DANA CL5000 DANA R36000 DANA     19D
MT30D

10150*27

00*2600mm

16m3 33000 kg CUMMINS QSX15                   diesel engine DANA CL8000 DANA 6000 KESSLER             D91
Our Services


ROXMECH® Rock Excavation and Service/Support Equipment include:
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series

MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer



Company Information


ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
