90mm 115mm 120mm Down The Hole Drill Adapter

90mm 115mm 120mm Down The Hole Drill Adapter

  • 90mm 115mm 120mm Down The Hole Drill Adapter
  • 90mm 115mm 120mm Down The Hole Drill Adapter
  • 90mm 115mm 120mm Down The Hole Drill Adapter
90mm 115mm 120mm Down The Hole Drill Adapter
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: API
Model Number: DTH Sub
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces DTH Sub
Price: negotiation

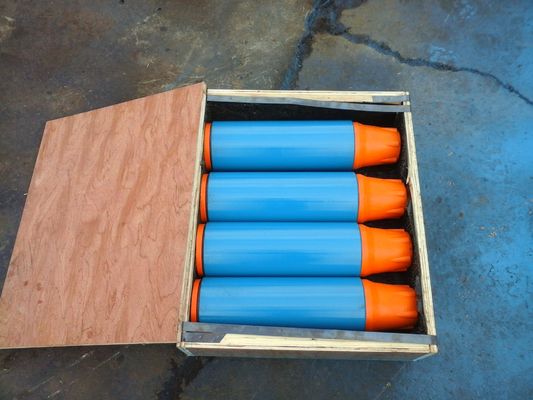

Packaging Details: Bundle and Wooden Box
Delivery Time: 10- 25 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Type: DTH Sub/ DTH Adapter Length: 140mm - 225mm
Diameter: 59mm- 115mm Thread: 2 3/8'' API Reg, 2 7/8'' API Reg, 3 1/2‘’ API Reg
High Light:

rock drill tools

,

downhole drilling tools

Down The Hole Drill Adapter DTH Drilling Tools Diameter 90mm 115mm 120mm



In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



Specification:

DTH Subs Specification
Female- Male
Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
mm mm mm mm kg
2 3/8"API Reg 2 3/8"API Reg 77 77 140 65 4.0 4148301570
2 3/8"API Reg 2 3/8"API Reg 90 90 140 65 5.5 4148301571
2 3/8"API Reg 2 3/8"API Reg 102 102 130 76 7.8 4148301572
2 3/8"API Reg 2 3/8"API Reg 90 90 144 65 5.5 4148301573
2 3/8"API Reg 2 3/8"API IF 95 95 130 65 8.0 4148301574
2 3/8"API Reg 2 7/8"API Reg 90 102 120 95 10.5 4148301575
2 3/8"API IF 3 1/2"API Reg 90 90 164 65 6.8 4148301576
2 7/8"API Reg 2 3/8"API Reg 90 90 154 65 6.5 4148301577
2 7/8"API Reg 2 3/8"API Reg 90 115 120 95 11.0 4148301578
3 1/2"API Reg 3 1/2"API Reg 115 115 219 95 12.5 4148301579
3 1/2"API Reg 2 3/8"API IF 115 115 160 95 10.5 4148301580
3 1/2"API Reg 2 7/8"API Reg 115 115 160 95 10.8 4148301581
3 1/2"API Reg 2 7/8"API IF 115 115 160 95 10.8 4148301582
3 1/2"API Reg 3 1/2"API Reg 115 115 160 95 10.5 4148301583
3 1/2"API Reg 4 1/2"API Reg 146 146 132 120 16.5 4148301584
4 1/2"API Reg 3 1/2"API Reg 146 115 235 95 19.0 4148301585
F48×10 F42×10 59 59 203 40 - 4148301586
F48×10 F48×10 59 59 203 40 - 4148301587
F48×10 2"API Reg 59 59 203 40 - 4148301588
Female - Female
Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
mm mm mm mm kg
2 3/8"API Reg 2 3/8"API Reg 77 77 200 65 4.5 4148301589
2 3/8"API Reg 2 3/8"API Reg 90 90 200 65 6.0 4148301590
2 3/8"API Reg 2 7/8"API Reg 90 90 225 65 6.2 4148301591
2 3/8"API Reg 3 1/2"API Reg 115 115 210 95    10.0 4148301592
Male - Male
Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
mm mm mm mm kg
2 3/8"API Reg 2 3/8"API Reg 90 90 70 65 4.6 4148301593
2 3/8"API Reg 3 1/2"API Reg 90 115 97 95 9.0 4148301594
3 1/2"API Reg 3 1/2"API Reg 115 115 90 95 10.0 4148301595



Applications

• Underground mining
• Quarry benching operations
• Water well drilling
