| Place of Origin: | AnHui,China |
| Brand Name: | MIROC |
| Certification: | CE |
| Model Number: | Underground Mining Dump Truck |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Nude Packed or Based on Customers |
| Delivery Time: | 30-60 Days after receiving payment and order confirmation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 40 Set/Sets per Month |
| Type: | Mining Truck | Color: | Yellow,Orange,Red |
|---|---|---|---|
| Volume Capacity: | 6m3,7.5m3,10m3 | Tramming Capacity: | 12000KG,15000KG,20000KG |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Engine: | DEUTZ BF6L914 Turbocharged Air Cooled Diesel Engine |
| High Light: | heavy duty Dump Truck,Underground Dump Truck |
||

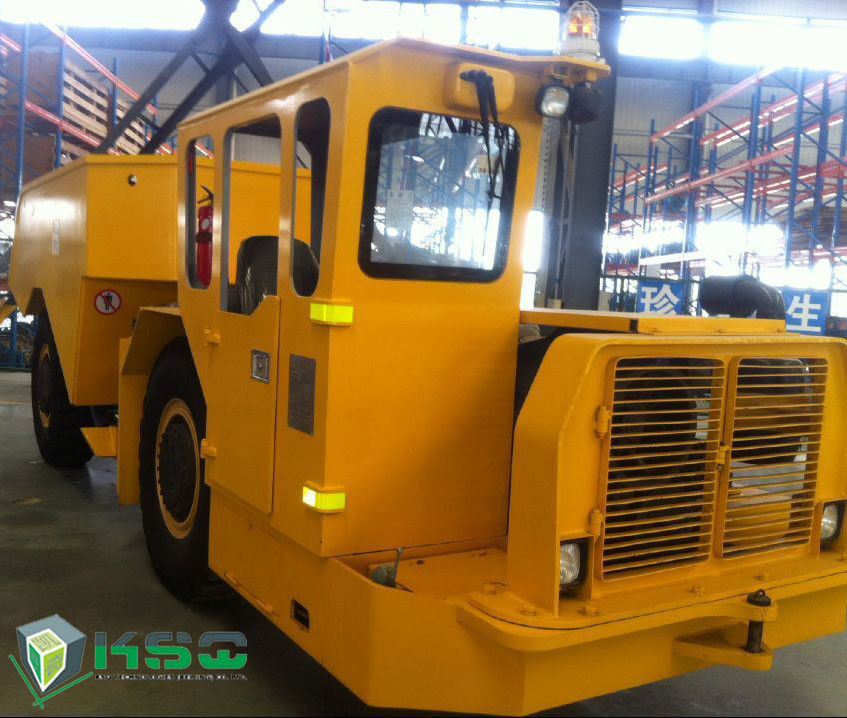

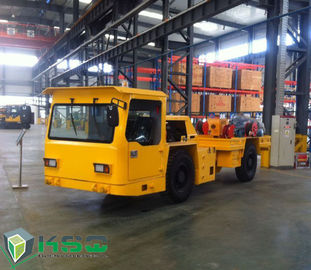

DEUTZ BF6L914 Diesel Engine Mining Truck 12 Ton Dumpster Trucks CE Approved
The RT-12 Low Profile Dump Truck is ideal for medium scale rock excavation operations that
require high haulage productivity. Works perfectly with the RL-2 LHD Machine. The RT-12
maintains the simple yet very robust design tenets of what a mining equipment should be
- it has a small footprint and turning radius suitable for small envelope sizes, high proven
reliability, and straight-forward mechanical components that are easy to maintain.
| Main Dimensions | Length | 7956mm |
| Width | 1804mm | |
| Height | 2150mm | |
| Turning Radius | Inside | 3600mm |
| Outside | 6057mm | |
| Volume Capacity | 6m3 | |
| Tramming Capacity | 12000kg | |
| Engine | DEUTZ BF6L914 Turbocharged air cooled diesel engine | |
| Torque Converter | DANA C273 | |
| Transmission | DANA R24000 | |
| Axles | MERITOR CY-2J | |
| Tires | 14.00-24.00 E3 |
Applications of Low Profile Dump Truck
Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling
Specification of Low Profile Dump Truck
| Low Profile Dump Truck | |||||||
| Type | Main Dimensions (L*W*H) | Volume Capacity | Tramming Capacity | Engine | Torque Converter | Transmission | Axles |
| RT-12 | 7956*1804 *2150mm | 6m3 | 12000 kg | DEUTZ BF6L914 diesel engine | DANA C273 | DANA R24000 | MERITOR CY-2J |
| RT-15 | 7956*1804*2150mm | 7.5m3 | 15000 kg | DEUTZ BF6L914C diesel engine | DANA C273 | DANA R32000 | DANA 16D |
| RT-20 | 9046*2280*2325mm | 10m3 | 20000 kg | DEUTZ BF6M1013FC diesel engine | DANA CL5000 | DANA R36000 | DANA 19D |
| MT30D | 10150*2700*2600mm | 16m3 | 33000 kg | CUMMINS QSX15 diesel engine | DANA CL8000 | DANA 6000 | KESSLER D91 |
ROXMECH® Rock Excavation and Service/Support Equipment include:
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series
MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer
ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
