| Place of Origin: | Shangdong,China |
| Brand Name: | MIROC |
| Certification: | ISO9001 |
| Model Number: | Tappered rock drilling button bit 7°/11°/12° |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10-22days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Material: | Tungsten Carbide And 45CrNiMoVA | Color: | Green,Blue Or Based On Demand |
|---|---|---|---|
| Use: | Tunneling, Mining,Quarrying,Construction | Design: | Precise Design Suit Particular Needs |
| Button Bit Shape: | Spherical, Ballistic | Service: | Product Customization |
| High Light: | industrial drill bits,hardened steel drill bits |
||

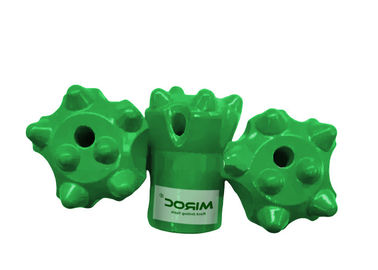

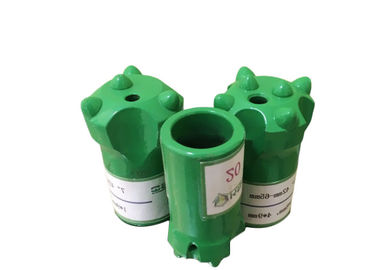

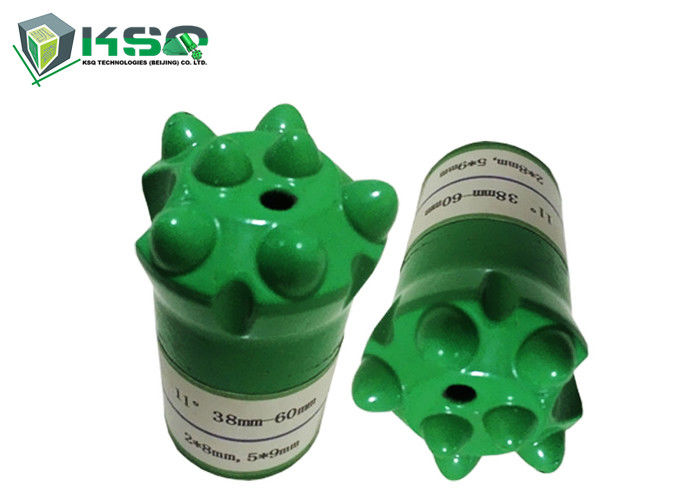

Customization Tapered Tungsten Carbide Drill Bit For Rock Drilling
Describtion
Miroc tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
Why you choose Miroc button bit?
1. Tapered button bits connect with tapered drill rod perfectly for drilling holes
2. Stable and mature welding technology ensure high quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. work reliable and very cost-effective
5. High grade tungsten carbide inserts
6. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Product Technical Reference
|
Small Hole Drilling Tools |
Taper Degree |
The Number Of Button |
Bit Dia.(mm) |
Skirt |
Weight(kg) |
|
Tapered Button Bit |
7°
|
4 |
32-42 |
Short Skirt |
0.24-0.43 |
|
6 |
34 |
Short Skirt |
0.29 |
||
|
7 |
32-42 |
Short Skirt |
0.26-0.43 |
||
|
7 |
32-41 |
Long Skirt |
0.30-0.42 |
||
|
11° |
4 |
32-40 |
Short Skirt |
0.24-0.40 |
|
|
5 |
38-40 |
Short Skirt |
0.39-0.40 |
||
|
6 |
33-36 |
Short Skirt |
0.25-0.36 |
||
|
7 |
32-41 |
Short Skirt |
0.24-0.41 |
||
|
7 |
32-41 |
Long Skirt |
0.30-0.42 |
||
|
8 |
33-35 |
Long Skirt |
0.31-0.35 |
||
|
12° |
4 |
28-30 |
Short Skirt |
0.20-0.22 |
|
|
5 |
28-30 |
Short Skirt |
0.20-0.22 |
||
|
6 |
30-38 |
Short Skirt |
0.22-0.40 |
||
|
7 |
32-38 |
Short Skirt |
0.24-0.40 |
||
|
7 |
32-41 |
Long Skirt |
0.30-0.42 |
||
|
8 |
33-35 |
Long Skirt |
0.31-0.35 |
The Insert type of the Button Bit
Spherical Button Characteristics:
• Universal button
• Good wear resistance
• Best suited for hard ground
• 27000-48000PSI(180 to 320Mpa)
• Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
• Fast Penetration
• Best suited for soft rock
• 10000-20000PSI(70 to 140Mpa)
• Suited for non-abrasive drilling conditions
