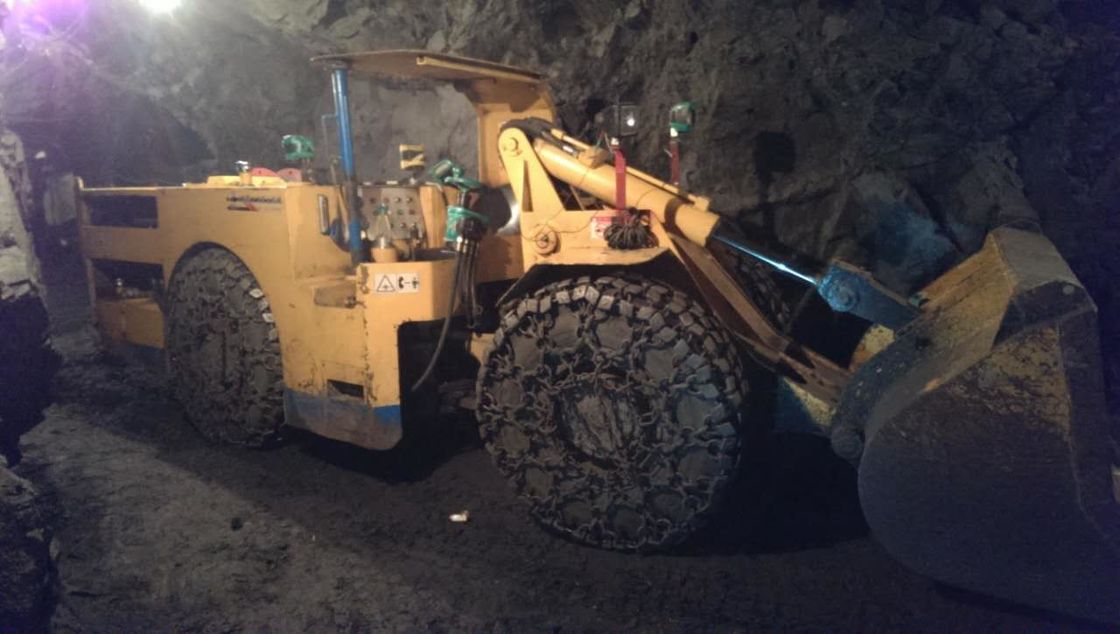

CE Certificated Made In China Load Hual Dump Machine RL-1 LHD

CE Certificated Made In China Load Hual Dump Machine RL-1 LHD

  • CE Certificated Made In China Load Hual Dump Machine RL-1 LHD
CE Certificated Made In China Load Hual Dump Machine RL-1 LHD
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE Certified
Model Number: RL-1 Load Haul Dump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 2 Months
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Contact Now
Detailed Product Description


Competitive Advantage:


1. Original DEUTZ engine

2. Very competitive pricing

3. Competitive delivery time

4. CE, ISO9001 Certified


• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
Operation Advantage:
The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.
Main characteristic:


1. Power shift transmission.
2. Four wheels drive.

3. Smooth cutting-resistant tires.
4. Articulated hinge frame.
5. Complete hydraulic steering.
6. Hydraulic multi-plate wet brake.
7. Working device with high tipping height and long discharge distance.


Main Technical Configuration:


Tramming Capacity: 2000 kg
Volume Capacity: 1m3
Operating Weight: 7000 kg
Total Loaded Weight: 9000 kg
Total Length: 6000 mm
Maximum Width: 1300 mm
Height with Safety Canopy: 2037 mm
Ground Clearance: 200 mm
Diesel Engine: DEUTZ F4L914
Engine Output: 44 kW/2300 rpm
Transmission: SAUER DANFOSS PV22 (Hydrostatic System)
Torque Converter: SAUER DANFOSS MV23 (Hydrostatic System)
Tires: 10.00-20.00


Drawing RL-1 Load Haul Dump.png




dumper machine.jpgLoad Haul Dump Machine.jpgDumper one cubic meter bucket .jpgscoop tram.jpg



Packaging & Shipping

Load in Container for Scoop tramp.jpgLoad in Container for Load Haul Dump.jpgLoad in container for scraper.jpg


Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|
