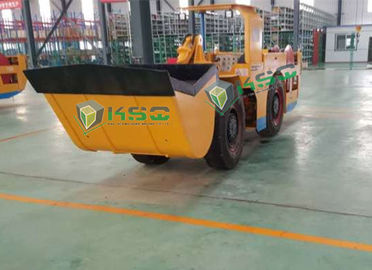

Orange Load Haul Dump Machine Utilized As Multi - Role Equipment

Orange Load Haul Dump Machine Utilized As Multi - Role Equipment

 Orange Load Haul Dump Machine Utilized As Multi - Role Equipment
 Orange Load Haul Dump Machine Utilized As Multi - Role Equipment
 Orange Load Haul Dump Machine Utilized As Multi - Role Equipment
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE, ISO 9001
Model Number: RL-1 Load Haul Dump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 2 Months
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Contact Now
Detailed Product Description
Model:: RL-1 Origin:: China
Color:: Yellow/ Orange Bucket Capacity:: 1m3
High Light:

lhd load haul dump


underground lhd machines


• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
Operation Advantage:
The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.



Main Technical Configuration:


1 Rated Bucket Capacity 1m3
2 Rated Load Capacity 2t
3 Maximum Relieving Force 48kN
4 Maximum Traction 56kN
5 Driving Speed 0-10km/h
6 Maximum Climbing Capacity 20°
7 Maximum Discharge Height 1050mm
8 Minimum Discharge Distance 860 mm
9 Working time 11s
10 Minimum Turning Radius 4260mm(Outboard of bucket)
2540mm(inside of back wheel)
11 Maximum Steering Angle ±38°
12 Minimum Ground Clearance 200mm
13 Rear Axle Swinging Angle ±8°
14 Weight of the Whole Machine 6.75t
15 Size
Length(Bucket in haul position) 5850mm
Width 1300mm
Height of the Cab 2000mm


Drawing RL-1 Load Haul Dump.png
