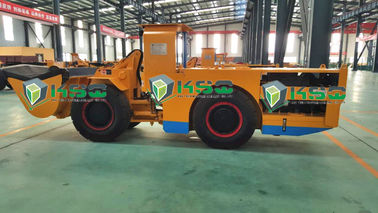

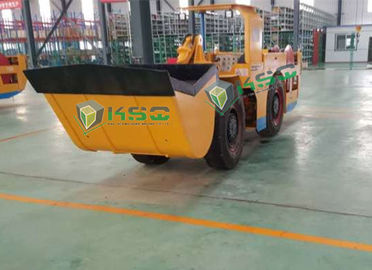

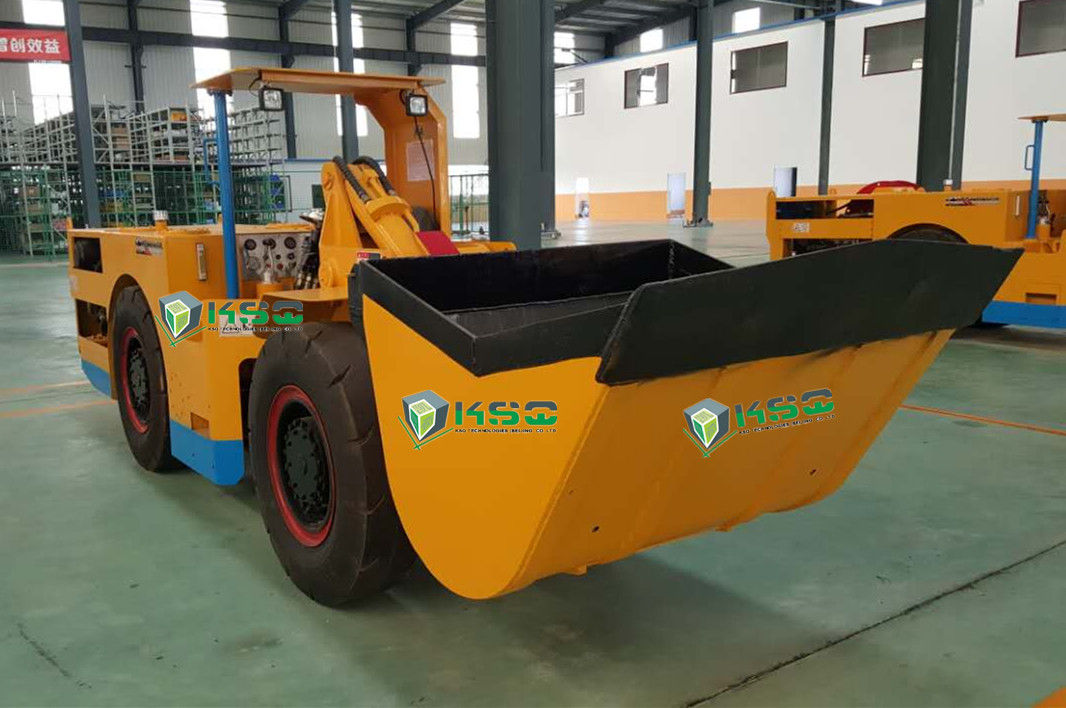

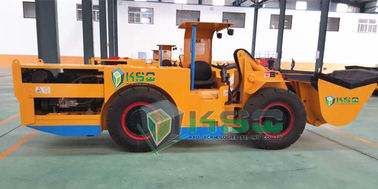

CE Small Tunnel lhd load haul dump Roadway Railway Tunneling

CE Small Tunnel lhd load haul dump Roadway Railway Tunneling

CE Small Tunnel lhd load haul dump Roadway Railway Tunneling
CE Small Tunnel lhd load haul dump Roadway Railway Tunneling
CE Small Tunnel lhd load haul dump Roadway Railway Tunneling
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE, ISO
Model Number: RL-1 Load Haul Dump Machine/ScoopTram
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 2 Months
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Contact Now
Detailed Product Description
High Light:

lhd load haul dump

,

underground lhd machines



Competitive Advantage:



1. Original DEUTZ engine

2. Very competitive pricing

3. Competitive delivery time

4. CE, ISO9001 Certified



Applications:

• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)


Operation Advantage:

The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.





Main Technical Configuration:



Brand: ROXMECH
Tramming Capacity: 2000 kg
Volume Capacity: 1m3
Operating Weight: 7000 kg
Total Loaded Weight: 9000 kg
Total Length: 6000 mm
Maximum Width: 1300 mm
Height with Safety Canopy: 2037 mm
Ground Clearance: 200 mm
Diesel Engine: DEUTZ F4L914
Engine Output: 44 kW/2300 rpm
Transmission: SAUER DANFOSS PV22 (Hydrostatic System)
Torque Converter: SAUER DANFOSS MV23 (Hydrostatic System)
Axles: XUZHOU-JINHE
Tires: 10.00-20.00



Drawing RL-1 Load Haul Dump.png







dumper machine.jpgLoad Haul Dump Machine.jpgDumper one cubic meter bucket .jpgscoop tram.jpg





Packaging & Shipping


Load in Container for Scoop tramp.jpgLoad in Container for Load Haul Dump.jpgLoad in container for scraper.jpgLoad haul dump machine for tunnel.jpgscoop tram .jpg



Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|
