Home ProductsLoad Haul Dump Machine

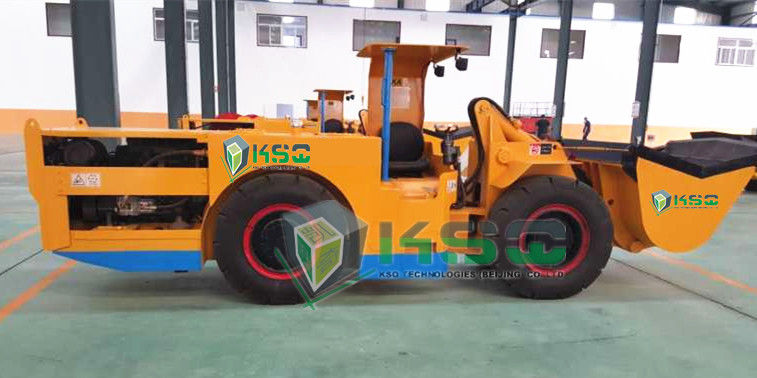

Articulated Load Haul Scooptram Machine underground lhd machines

Articulated Load Haul Scooptram Machine underground lhd machines

  • Articulated Load Haul Scooptram Machine underground lhd machines
Articulated Load Haul Scooptram Machine underground lhd machines
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE, ISO
Model Number: RL-1 Load Haul Dump Machine/ScoopTram
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 2 Months
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Contact Now
Detailed Product Description
Color:: Orange/Yellow/White Certification:: CE, ISO9001
Application:: Small Tunnel/Underground Mining Bucket Capacity:: One Cubic Meter
Engine:: DEUTZ F4L914 Tramming Capacity:: 2000 Kg
High Light:

lhd load haul dump

,

underground lhd machines

Competitive Advantage:



1. CE, ISO9001 Certified

2. Very competitive pricing

3. Professinal Service Team

4. Fast feedback about all questions from clients

5. Design based on your specific requirements


Applications:

• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)


Operation Advantage:

The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.





Main Technical Configuration:



1 Rated Bucket Capacity 1m3
2 Rated Load Capacity 2t
3 Maximum Relieving Force 48kN
4 Maximum Traction 56kN
5 Driving Speed 0-10km/h
6 Maximum Climbing Capacity 20°
7 Maximum Discharge Height 1050mm
8 Minimum Discharge Distance 860 mm
9 Working time 11s
10 Minimum Turning Radius 4260mm(Outboard of bucket)
2540mm(inside of back wheel)
11 Maximum Steering Angle ±38°
12 Minimum Ground Clearance 200mm
13 Rear Axle Swinging Angle ±8°
14 Weight of the Whole Machine 6.75t
15 Size 　
Length(Bucket in haul position) 5850mm
Width 1300mm
Height of the Cab 2000mm



Drawing RL-1 Load Haul Dump.png













Packaging & Shipping
By Truck:



Articulated Load Haul Scooptram Machine underground lhd machines 1Articulated Load Haul Scooptram Machine underground lhd machines 2



By Container:

Articulated Load Haul Scooptram Machine underground lhd machines 3Articulated Load Haul Scooptram Machine underground lhd machines 4





Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|





Company Information

ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.



ROXMECH® Rock Excavation and Service/Support Equipment include:



Load Haul Dump Machines
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine



Low Profile Dump Trucks
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck



Support Equipment
RS-3 Service Vehicle Series
MT30M Low Profile Transmixer



Processing Equipment
TT Series Vacuum Ceramic
Filtration System





Exhibition Activity



2016 MINExpo, Las Vegas, USA from Sep. 26-28

Booth Number: North 655

Much welcome all friends to visit us there!

Las Vegas MinExpo 2016.png
