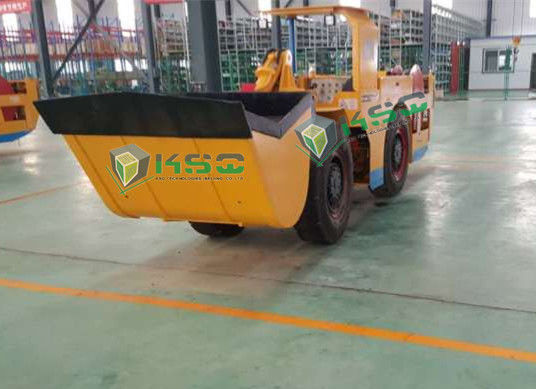

White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001

White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001

White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001
White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001
White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE, ISO
Model Number: RL-1 Load Haul Dump Machine/ScoopTram
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 2 Months
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Contact Now
Detailed Product Description
Color:: Orange/Yellow/White Certification:: CE, ISO9001
Application:: Small Tunnel/Underground Mining Rated Load Capacity: 2 Tons
Engine:: DEUTZ F6L912W 57KW/2300rpm Maximum Traction:: 56kN
Maximum Climbing Capacity:: 20° Driving Speed:: 0-10km/h
High Light:

lhd load haul dump


underground lhd machines


• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
Operation Advantage:
The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.



Main Technical Configuration:


1 Rated Bucket Capacity 1m3
2 Rated Load Capacity 2t
3 Maximum Relieving Force 48kN
4 Maximum Traction 56kN
5 Driving Speed 0-10km/h
6 Maximum Climbing Capacity 20°
7 Maximum Discharge Height 1050mm
8 Minimum Discharge Distance 860 mm
9 Working time 11s
10 Minimum Turning Radius 4260mm(Outboard of bucket)
2540mm(inside of back wheel)
11 Maximum Steering Angle ±38°
12 Minimum Ground Clearance 200mm
13 Rear Axle Swinging Angle ±8°
14 Weight of the Whole Machine 6.75t
15 Size
Length(Bucket in haul position) 5850mm
Width 1300mm
Height of the Cab 2000mm



Finished Products in factory

Load Haul Dump Machine.jpgscoop tram.jpg



Packaging & Shipping

Load in Container for Scoop tramp.jpgLoad in container for scraper.jpgLoad haul dump machine for tunnel.jpgscoop tram .jpg


Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|
