| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | SGS |
| Model Number: | Tapered button bit |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 30000pieces per month |
| High Light: | industrial drill bits,milling drill bits |
||
|---|---|---|---|

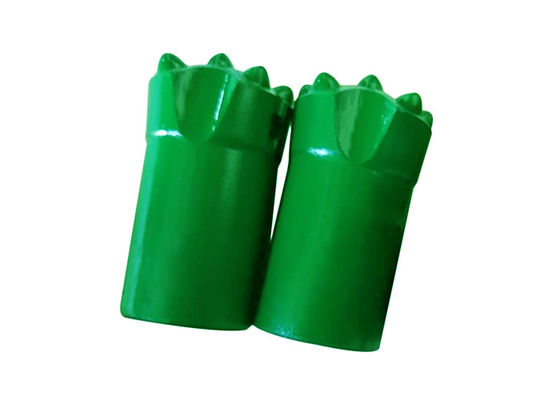

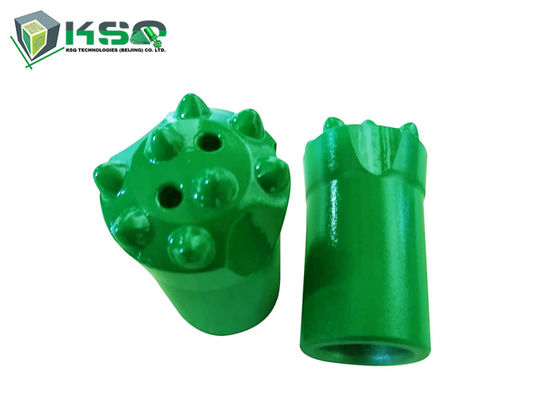

32Mm Tapered Button Drill Bit , Rock Drilling Tools To Drill Granite Rock
What can you get from KSQ?
1. Good service for the products purchased
2. Good quality control of products produced
3. Reasonable prices for the products offered
4. Best advices based on the experience and knowledge of well know what to do and how to do
Tapered button bit to drill quarry granite rock
Bit diameter: 32mm to 42mm
Body height: 50mm, 55mm,60mm
Taper/Grade: 6 degree, 7 degree, 11 dregree, 12 degree
Shank Diameter: for Hex22 tapered rod
| Taper button bit - For 22 mm (7⁄8") hex. Rod | ||||||||||
 |
Bit Diameter | mm | 32 | 33 | 34 | 35 | 36 | 38 | 40 | 42 |
| inch | 1 1/4 | 1 2/7 | 1 1/3 | 1 3/8 | 1 3/7 | 1 1/2 | 1 4/7 | 1 2/3 | ||
|
Tungsten Carbide Button Number | 4, 6, 7 | ||||||||
| Taper/Grade | 6,7,11,12 degree | |||||||||
| Part Number | Bit Diameter |
Tungsten Carbide Button (No. x mm) |
||
| (mm) | (inch) | Front Buttons | Gauge Buttons | |
| 4148300157 | 32 | 1 1/4 | 1x8 | 3x8 |
| 4148300158 | 33 | 1 2/7 | 2x7 | 5x7 |
| 4148300159 | 34 | 1 1/3 | 2x7 | 4x7 |
| 4148300160 | 35 | 1 3/8 | 2x7 | 5x8 |
| 4148300161 | 36 | 1 3/7 | 1x8 | 3x9 |
| 4148300162 | 36 | 1 3/7 | 2x7 | 5x8 |
| 4148300163 | 38 | 1 1/2 | 1x8 | 3x9 |
| 4148300164 | 38 | 1 1/2 | 2x7 | 5x8 |
| 4148300165 | 38 | 1 1/2 | 2x7 | 5x9 |
| 4148300166 | 40 | 1 4/7 | 1x8 | 3x9 |
| 4148300167 | 40 | 1 4/7 | 1x9 | 3x10 |
| 4148300168 | 40 | 1 4/7 | 1x9 | 3x9 |
| 4148300169 | 40 | 1 4/7 | 2x7 | 5x9 |
| 4148300170 | 42 | 1 2/3 | 1x8 | 3x9 |
| 4148300171 | 42 | 1 2/3 | 1x9 | 3x10 |
| 4148300172 | 42 | 1 2/3 | 1x9 | 3x9 |
| 4148300173 | 42 | 1 2/3 | 2x8 | 5x9 |
